Application For General Industry Flange Circular Seat Solenoid Stem With NBR

Application of solenoid stem

1.Assembling with solenoid coil and solenoid coil housing

2.Used for general industry

For instance

Dental equipment

Dust collector valve

Automatic vending machine

Pulse device

Pneumatic equipment

Auto drain industry

Air suspension

Refrigeration device

Hyraulic industry

Life water and industry water supply

Air condition device

Pipe switch,etc

Work principle

This item is 3/2 way solenoid stem/solenoid armature.So there are three ports and two position

A solenoid valve is an electromechanical device in which the solenoid uses an electric current to generate a magnetic field and thereby operate a mechanism which regulates the opening of fluid flow in a valve.

Instruction and Description

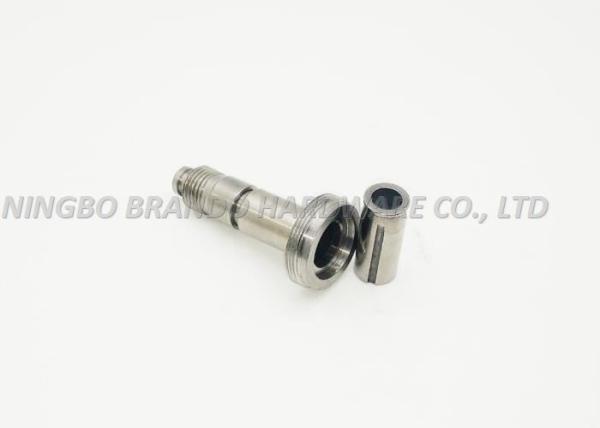

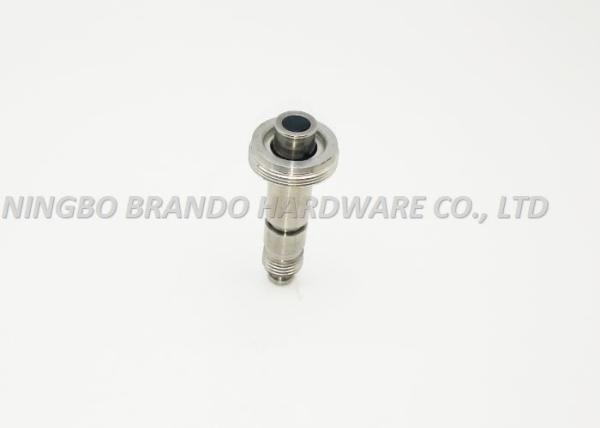

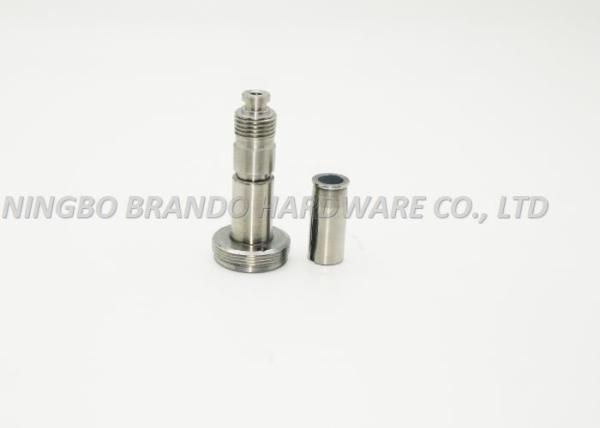

1.3/2 way solenoid stem/solenoid armature

2.Hollow channel of armature

3.Male thread and Circular flange Screw thread as the connection to solenoid coil/solenoid valve

Flange:A flange is an external or internal ridge, or rim (lip), for strength, as the flange of an iron beam such as an I-beam or a T-beam; or for attachment to another object, as the flange on the end of a pipe, steam cylinder, etc., or on the lens mount of a camera; or for a flange of a rail car or tram wheel. Thus flanged wheels are wheels with a flange on one side to keep the wheels from running off the rails. The term "flange" is also used for a kind of tool used to form flanges. Pipes with flanges can be assembled and disassembled easily.

4.With fixing groove to install the rubber

5.Two grooves in the plunger as the exhausting device when de-energized.

6.Without Male spring,onle interior spring is isloted by NBR

NBR:NBR has good resistance to mineral oils, vegetable oils, benzene/petrol, ordinary diluted acids and alkaline.

7.With two tube parts of solenoid stem

Dimension

Advantages of our solenoid valve(after assembling)

Excellent for very large flow.

Pressure assists valve operation.

Needs minimum pressure differential.

More economical for higher flow values

Lower electrical power level.

Factory introdction

Company located in Ningbo,the second largerest city in china

We have more than 10 years experience in manufacturing solenoid stem. Excellent quality control is one of our main principles. Our design, producing and testing are strictly complied with ISO9001 standard. Now our products of solenoid armature assembly are being exported all over the world. We provide OEM service, accept customer label, develop the product with your drawings or samples .If you have any question, contact us, we will be reply with prompt speed.
