693715 Parker Type Hydraulic Solenoid Valve Coil 110VAC 120VAC
693715 Parker Type Hydraulic Solenoid Valve Coil 110VAC 120VAC
Specifications
Brand Name :
BRANDO
Model Number :
BB19242504
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
1000
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
50000pcs per month
Delivery Time :
10 to 15 working days
Packaging Details :
Box, Carton, Pallet
Product Name :
Hydraulic Solenoid Valve Coil
Ref No :
693715
Voltage :
110V-120VAC
Power :
25VA
Connector :
DIN43650A
Description

693715 Parker Type Hydraulic Solenoid Valve Coil 110VAC 120VAC

This solenoid coil is popularly used in hydraulic directional control solenoid valves. The reference number is 693715, 697228, 697229, 697350 or 697863. The standard voltage is 110VAC or 220VAC, the standard power is 25VA, other voltages and powers can be customized as your request, DIN43650A connector, IP65 protection class. If you have any demands or questions, pls contact us!

Technical Data:

BRANDO Model
BB19242504
Voltage
110VAC, 220VAC
Power
25VA
Other voltage and power can be customized
Connector
DIN43650A

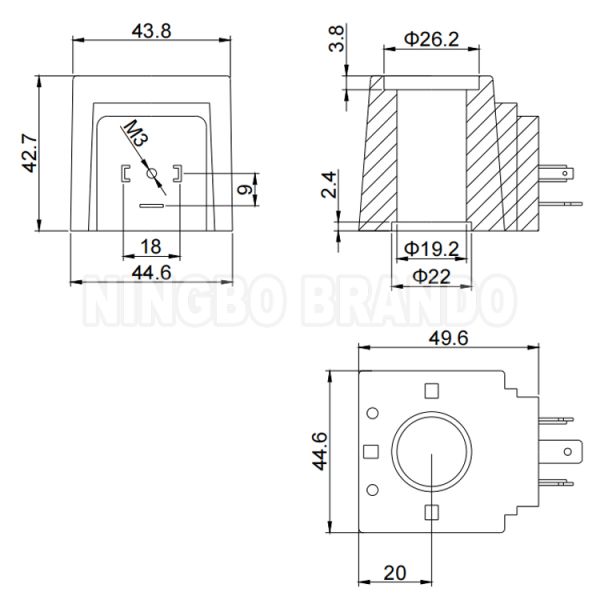

Main Dimension:

693715 Parker Type Hydraulic Solenoid Valve Coil 110VAC 120VAC

Our Production:

693715 Parker Type Hydraulic Solenoid Valve Coil 110VAC 120VAC

FAQ: How to choose a matching solenoid coil?

1. Voltage: The first thing to consider is the supply voltage of the solenoid valve, which is DC or AC.
2. Power or Resistance:
3. Dimension: Inner hole diameter, height and width.
4. Working Environment: temperature, humidity, indoor or outdoor, protection grade.
5. Connector Type: pin type, flying leads type, standard interface, etc.
6. Application: some special application areas require the use of specially designed solenoid coils, such as industries that require waterproof, must use IP67 or higher grade solenoid valve coils.
7. Other Requirements: such as environmental protection material requirements or certification.

More Hydraulic Coils:

693715 Parker Type Hydraulic Solenoid Valve Coil 110VAC 120VAC


Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
