3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V
3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V
Specifications
Brand Name :
BRANDO
Model Number :
3V1-06
Certification :
CE, ISO
Place of Origin :
Ningbo, China
MOQ :
1 pc
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union
Supply Ability :
200000 pcs per month
Delivery Time :
Negotiation
Packaging Details :
Plastic bag, Box, Carton, Pallet
Fluid :
Air (to be filtered by 40 μm filter element)
Port Size :
1/8''
Action :
Direct Acting
Orifice Size :
1.2mm
Valve Type :
3 Port 2 Position
Operating Pressure :
0 to 0.8 MPa (0 to 114 psi)
Proof Pressure :
1.2 MPa (175 psi)
Body Material :
Aluminum Alloy
Seal Material :
NBR
Coil Voltages :
12VDC, 24VDC, 24VAC, 110VAC, 220VAC
Description

3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V

Product Features of 3V1 Series Solenoid Valves:

1. Direct acting type and normally closed mode, flexible in direction change
2. No need to add oil for lubrication
3. Several valves can be coupled together as a series to save installation space - need coupling screw assembly(s) P30/P31
4. Affiliated manual devices are equipped to facilitate installation and debugging
5. Several standard voltage grades are optional

Technical Data of 3V1 Series Solenoid Valve:

Model
3V1-M5
3V1-06
Fluid
Air (to be filtered by 40 μm filter element)
Port Size
M5
1/8''
Acting
Direct Acting
Valve Type
3 Port 2 Position
Lubrication
Not required
Operating Pressure
0 to 0.8 MPa (0 to 114 psi)
Proof Pressure
1.2 MPa (175 psi)
Temperature
-20 to +70℃
Orifice Size
1.2mm
Body Material
Aluminum Alloy
Voltages
12VDC, 24VDC, 24VAC, 110VAC, 220VAC

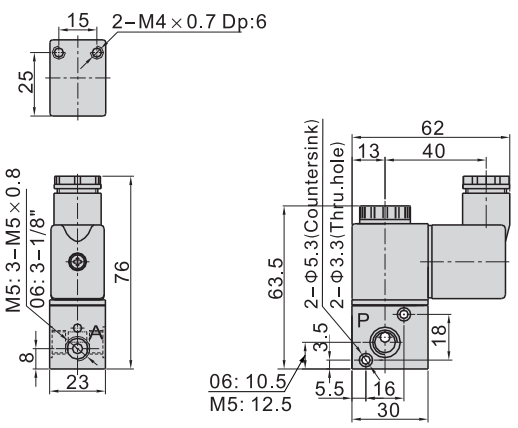

Main Dimension of 3V1 Series Solenoid Valve:

3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V

Production Video of Pneumatic Valve:

More Pneumatic Products for you to choose:

3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V 3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V 3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V 3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V

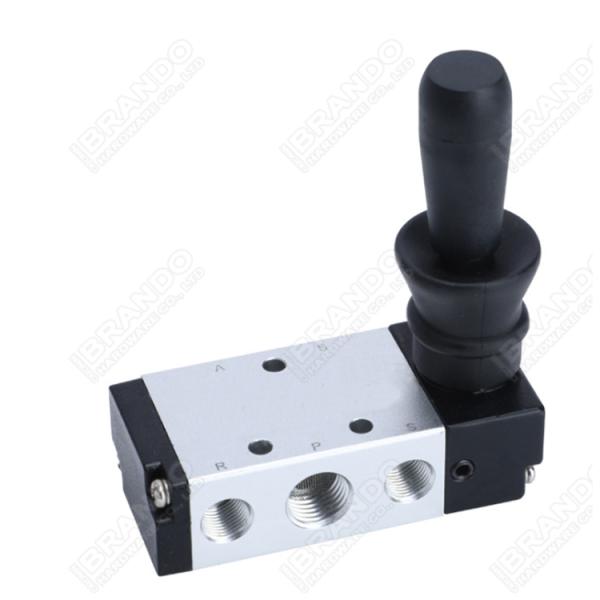

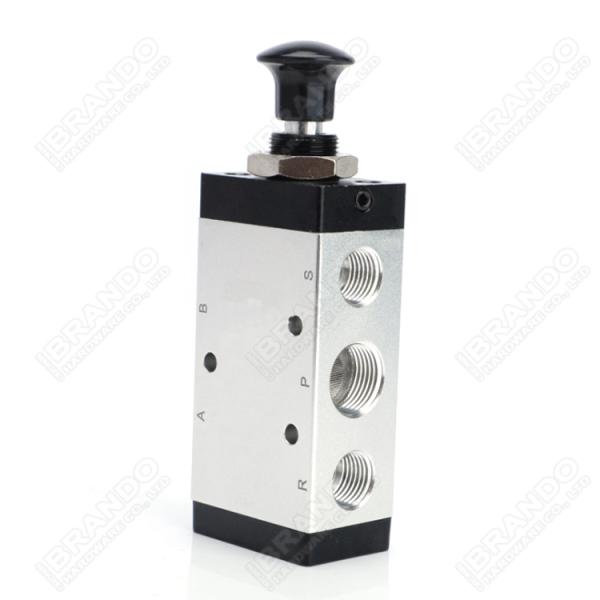

Pneumatic Solenoid Valve Air Pilot Pneumatic Valve Push Pull Air Valve Hand Level Air Valve
3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V 3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V 3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V 3V1-06 Airtac Type 3 Way Solenoid Air Valve 1/8'' 12V 24V 110V 220V

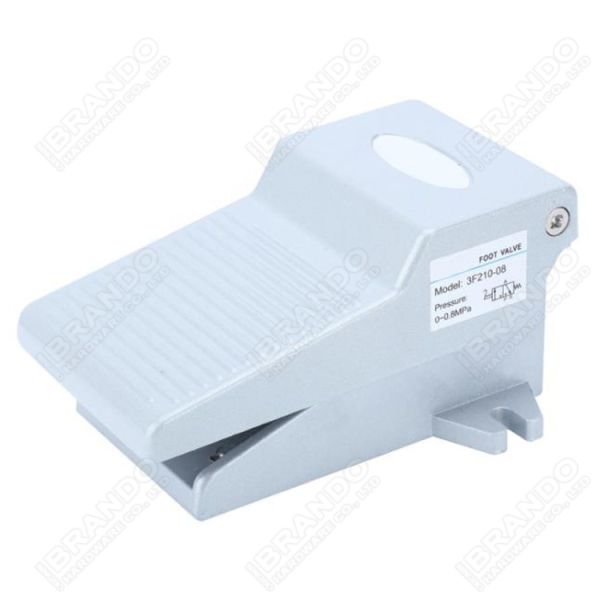

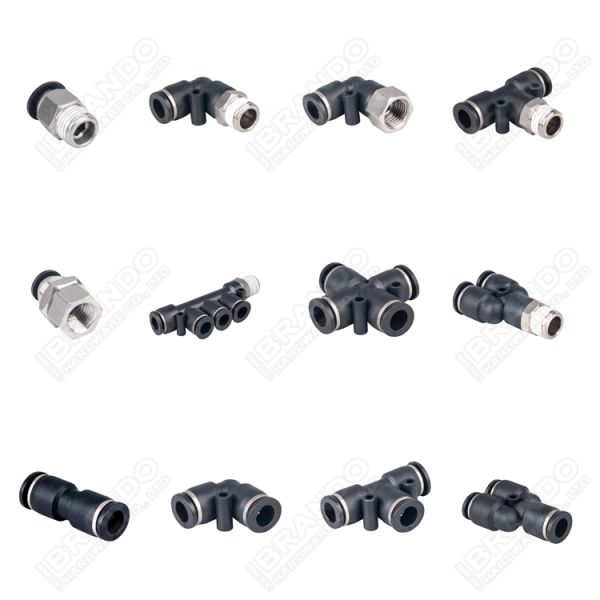

Pneumatic Food Pedal Valve Pneumatic Hose Fitting Filter Regulator Lubricator Pneumatic Cylinder

Focus on your demands, Offer you best solution:

√ Contact us if some points you have doubt

√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for

√ Contact us if you are doing designing

Welcome to your any question and inquiry!
