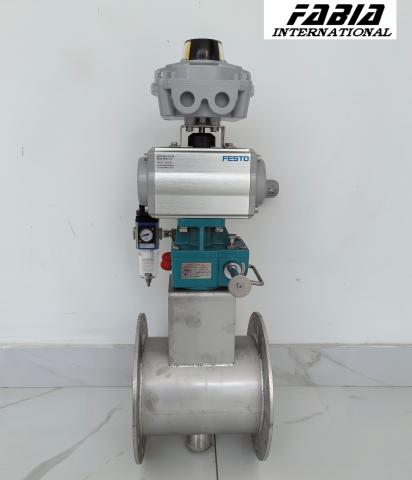

Pneumatic Butterfly Valve For Air Valve Water Oil Gas
Pneumatic Butterfly Valve For Air Valve Water Oil Gas
Specifications
Brand Name :
FABIA
Model Number :
1 inch ～ 40nch
Certification :
FM,AMCA,ISO9001,CE,CCS,DNV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,MoneyGram,Western Union
Supply Ability :
100-1000 set per week
Delivery Time :
15-30 work days
Packaging Details :
Cartons/Wooden cases
Product Name :
Round Butterfly Damper
Valve Connection :
Flange
Material :
Stainless steel
Valve Body :
Stainless steel
controlMode :
Manual/Pneumatic/Electric
Design Pressure :
±6000Pa
Leakage :
56l/s/m³（2000Pa）
Apply :
Semiconductors, LCD panels, biopharmaceuticals
Description

Pneumatic Butterfly Valve

Water Oil Gas

1. Description:


The product is mainly used in industries such as semiconductors, LCD panels, and biopharmaceuticals for ventilation and exhaust system air volume control valves.Divided into micro, medium, and large sizes based on the size .


2. Specification:


Round butterfly(Micro Size)

Product No. Size Height Outer size D(shaft) Control Model
FB-RBD-0020-01 20 25 105 D12 Electric/Pneumatic
FB-RBD-0025-02 25 25 115 D12
FB-RBD-0032-03 32 25 135 D12
FB-RBD-0040-04 40 25 145 D12
FB-RBD-0050-05 50 30 160 D12
FB-RBD-0063-06 63 30 180 D12
FB-RBD-0080-07 80 30 195 D12
FB-RBD-0100-08 100 30 215 D12
FB-RBD-FREE FREE


Round butterfly(Medium Size)

Product No. Size Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
VB-RBD-0100-01 D100 150 1.2 1.5 D12 Electric/Pneumatic
VB-RBD-0100-02 D150 150 1.2 1.5 D12
VB-RBD-0100-03 D200 200 1.2 1.5 D12
VB-RBD-0100-04 D250 250 1.2 2.0 D12
VB-RBD-0100-05 D300 250 1.2 2.0 D12
VB-RBD-0100-06 D350 250 2.0 2.5 D25
VB-RBD-0100-07 D400 250 2.0 2.5 D25
VB-RBD-0100-08 D450 250 2.0 2.5 D25
VB-RBD-0100-09 D500 250 2.0 3.0 D25
VB-RBD-0100-10 D550 250 2.0 3.0 D25
VB-RBD-0100-11 D600 250 2.0 3.0 D25
VB-RBD-FREE FREE


3. Features:


  • Type:micro, medium, and large size
  • Design Pressure:±6000Pa
  • Leakage:56L/s/m³(2000Pa)
  • Beautiful, low noise, and low resistance l
