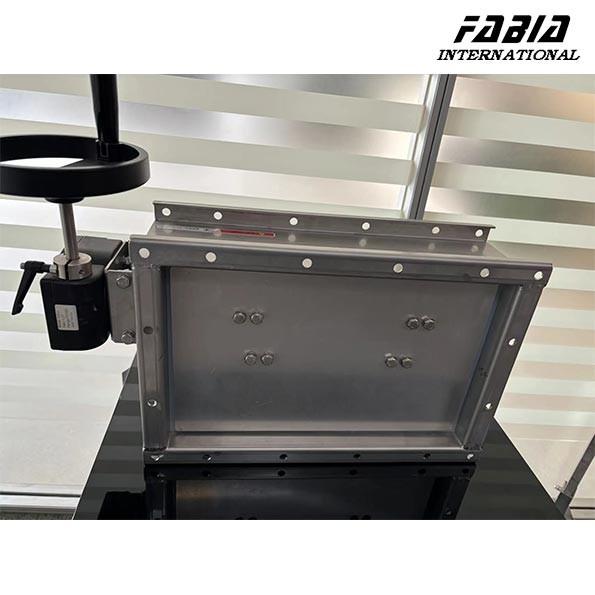

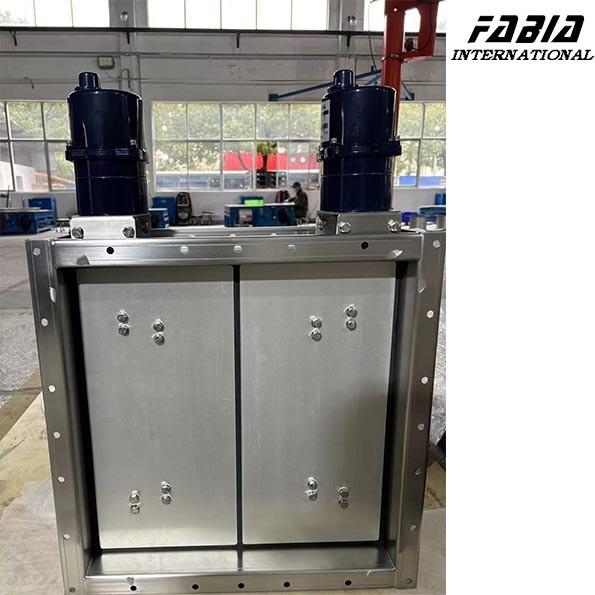

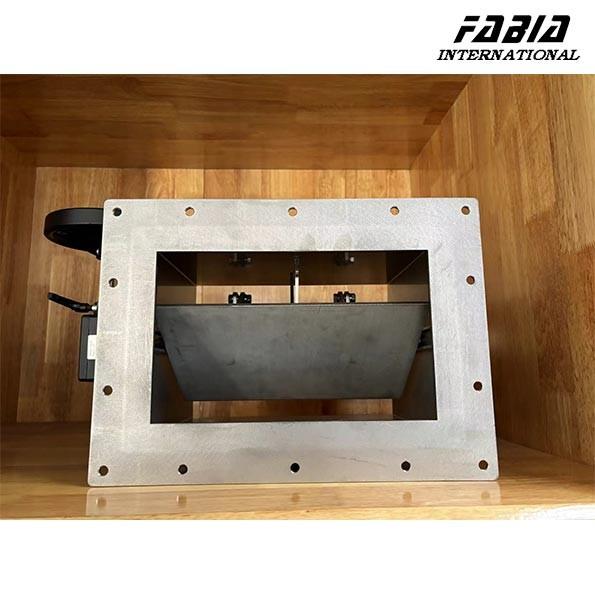

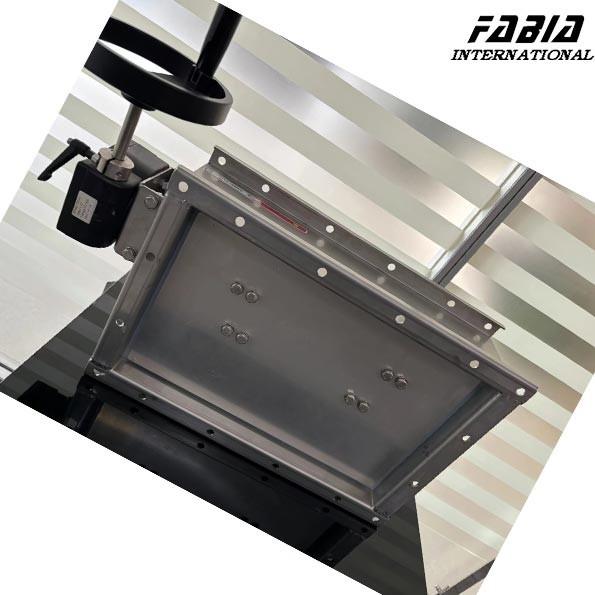

Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
Specifications
Brand Name :
FABIA
Model Number :
300mm*300mm-800mm*800mm
Certification :
FM,AMCA,ISO9001,CE,CCS,DNV
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability :
100-1000 set per week
Delivery Time :
15-30 work days
Packaging Details :
Cartons/Wooden cases
Product Name :
Rectangular Safety Airtight Damper
Valve Connection :
Flange
Material :
Stainless steel
Valve Body :
Stainless steel
controlMode :
Manual/Pneumatic/Electric
Design Pressure :
±4000Pa
Leakage :
0l/s/m³
Apply :
Biomedical exhaust system
Description

Zero Leakage 11inch 30inch Electric Airtight Damper Valve for Biomedical Exhaust Systems

1. Description:

This valve is mainly used inBiomedical exhaust system , and the valve is mostly multi linkage structures with zero leakage.

2. Specification:

Product No. Size(A) Size (B) Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
FB-RSAD-0300*0300-01 300 300 250 2.5 2 D18 Manual/Pneumatic/Electric
FB-RSAD-0350*0350-02 350 350 250 2.5 2 D18
FB-RSAD-0400*0400-03 400 400 250 2.5 2 D18
FB-RSAD-0450*0450-04 450 450 250 2.5 2 D18
FB-RSAD-0500*0500-05 500 500 250 2.5 2 D18
FB-RSAD-0550*0550-06 550 550 250 2.5 2 D18
FB-RSAD-0600*0600-07 600 600 250 2.5 2 D18
FB-RSAD-0650*0650-08 650 650 250 2.5 2 D18
FB-RSAD-0700*0700-09 700 700 250 2.5 2 D18
FB-RSAD-0750*0750-10 750 750 250 2.5 2 D18
FB-RSAD-0800*0800-11 800 800 250 2.5 2 D18
FB-RSAD-FREE FREE

3. Features:

  • Structure:achieving a push in extrusion effect to achieve sealing by multi link structure; Adopting a multi link water valve structure to achieve airtightness
  • Design Pressure:±4000Pa
  • Leakage:Zero leakage
  • Material:Stainless
  • Control Model:Manual/Pneumatic/Electric

Zero Leakage 11 Inch 30 Inch Electric Airtight Damper Valve For Biomedical Exhaust Systems
