Pneumatic Air Cylinder Accessories TC - M Central Trunnion M Type With Bracket
Pneumatic Air Cylinder Accessories TC - M Central Trunnion M Type With Bracket
Specifications
Brand Name :
PRIUS,XINYI or OEM
Model Number :
TC-M
Place of Origin :
Ningbo,China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
20000pcs per month
Delivery Time :
10~15 working days
Packaging Details :
bag+box+catons+pallet
Product Name :
TC - M
Colour :
BLACK
Material :
IRON
Speed Range :
50~800mm/s
Buffer Type :
Gasket Buffer/Adjustable Buffer
Port Size :
M5X0.8/G1/8"
Fix Type :
Normal/LB/FA/FB/SDB
Action Type :
Single acting/Double acting
Description

TC-M Central Trunnion M type with bracket standard cylinder accessories

Pneumatic Air cylinder Accessories CA Single Earring,CB Double Earring,LB Foot Bracket,FA/FB Flange,Y Clevis,Eye Fish Bearing,Float Fitting,I Fitting,SDB Earring,Central Turnion,U clevis

Quick Detail:

* Pneumatic air cylinder accessories

* Various asccessories for mounting and functional application

* Covering full range of air cylinder size from Dia.8mm~dia.400mm

* Aluminum material and casting steel material available

* Easy and fast for operatating to mount onto cylinders

* With good shape by the quality surface treatment

* Special air cylinder accessories can be customize for specific application

Applications:

Pneumatic air cylinder accessories are the supporting parts for air cylinder to realize the fixture mounting and functional application joint with air cylinder and workpieces.

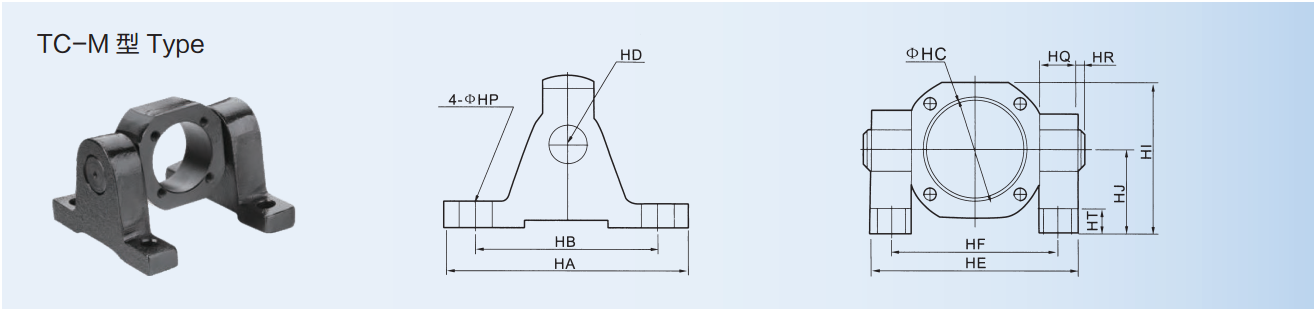

Specification

Bore HA HB HC HD HE HF HI HJ HQ HR HT HP
40 110 80 45.5 22 109 86 81.5 50 23 2 12 12
50 110 80 55.5 22 122 99 88 50 23 2 12 12
63 110 80 68.5 22 134 111 94 50 23 2 12 12
80 120 85 87.5 22 160 137 127 70 23 2 14 14
100 120 85 107.5 22 178 155 136 70 23 2 14 14

Pneumatic Air Cylinder Accessories TC - M Central Trunnion M Type With BracketPneumatic Air Cylinder Accessories TC - M Central Trunnion M Type With Bracket
