Stainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mm
Stainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mm
Stainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mm
Stainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mm
Specifications
Brand Name :
PRIUS,XINYI or OEM
Model Number :
CJ2
Place of Origin :
Ningbo,China
MOQ :
5pcs
Price :
negotiation
Payment Terms :
T/T, L/C, Western Union,Paypal
Supply Ability :
20000pcs per month
Delivery Time :
10~15 working days
Packaging Details :
bag+box+catons+pallet
name :
stainless steel pneumatic cylinder
Working Medium :
Air
MAX Pressure :
1.05MPA
Temperature Range :
-10-70℃
Speed Range :
50~750mm/s
Buffer Type :
Rubber Buffer
Port Size :
M5X0.8
Action Type :
Single acting
Description

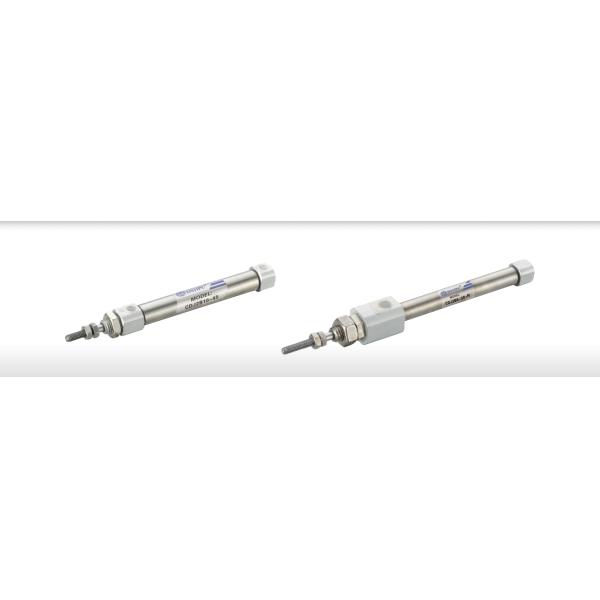

Stainless Steel Mini Air Cylinder CJ2 Series With Bore 6 / 10 / 16mm

ISO6432 standard stainless steel mini CJ2 double acting Pneumatic air cylinder Bore size 8mm-63mm e.g. DSNU40-50-PPV-A with magnet and adjustable air buffer Festo crossover

Quick Detail:

* ISO 6432 standard mini pneumatic air cylinder

* With magnet,air buffer adjustable or rubber cushion for choice

* Stainless steel barrel,Aluminum tube can be optional

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With guide plate type available

* With self-lubricating bearing,lubrication free

* Bore size 6mm, 10mm, 16mm

* Cylinder kits and accessories available

Stainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mm

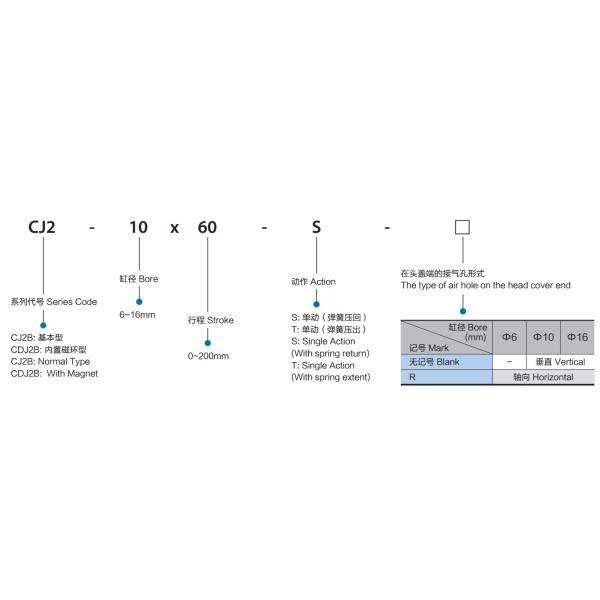

Ordering Code

Stainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mm

Specifiction

Bore (mm) 6 10 16
Motion Pattern Double action/Single Action Extrusion type/Single Action Drawing-in Type
Working Medium Air
Ensured Pressure Resistance 1.05MPa (10.5kgf/cm2)
Max. Working Pressure 0.7MPa (7.1kgf/cm2)
Min. Working Pressure 0.25MPa (2.5kgf/cm2) 0.15MPa (1.5kgf/cm2)
Operating Temperature Range -10~70℃
Operating Speed Range 50~750mm/s
Buffer Both side rubber buffer (Standard)
Margin of Stroke Error 1.0 mm
0
Port Size M5×0.8

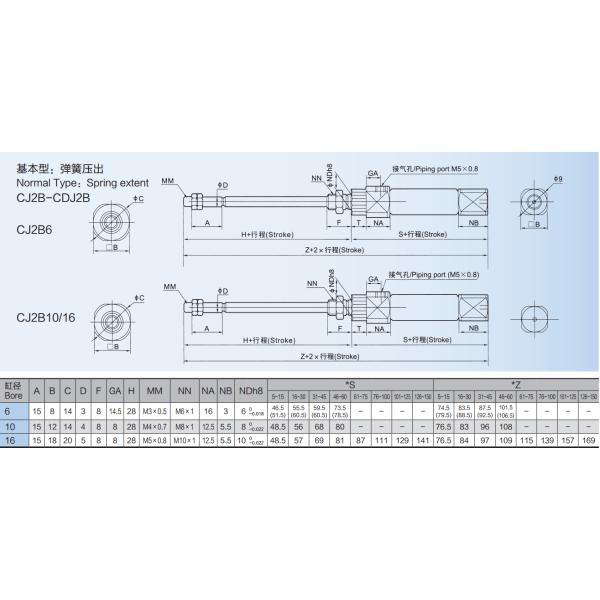

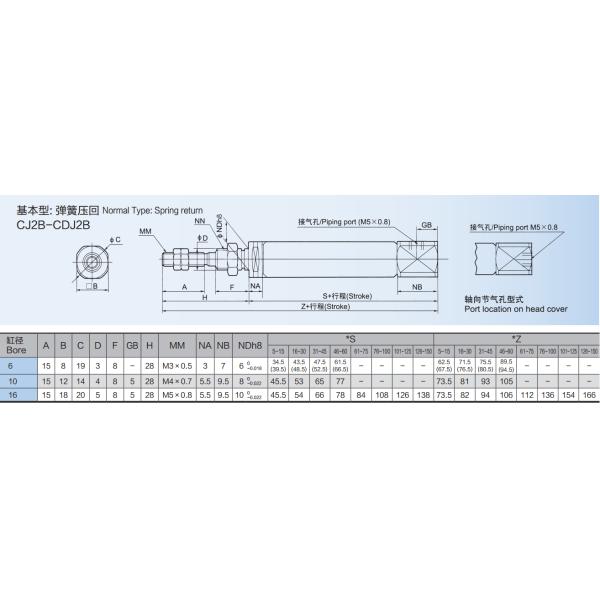

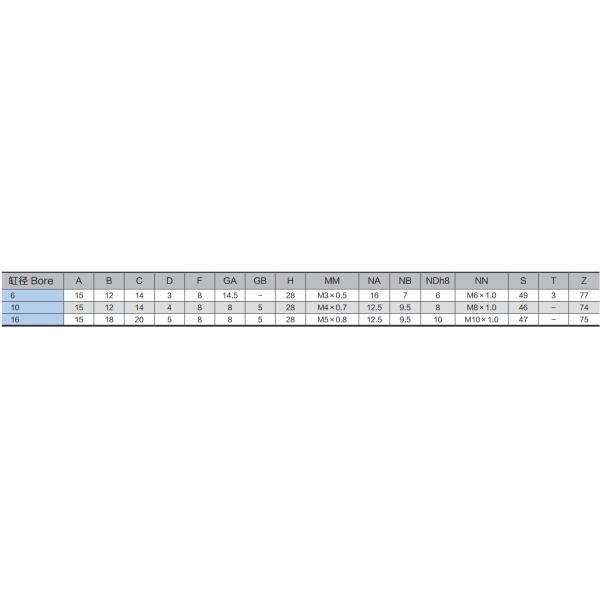

Overall Dimension

Stainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mmStainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mmStainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mmStainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mmStainless Steel Mini Air Cylinder CJ2 Series 0 - 70℃ With Bore 6 / 10 / 16mm
