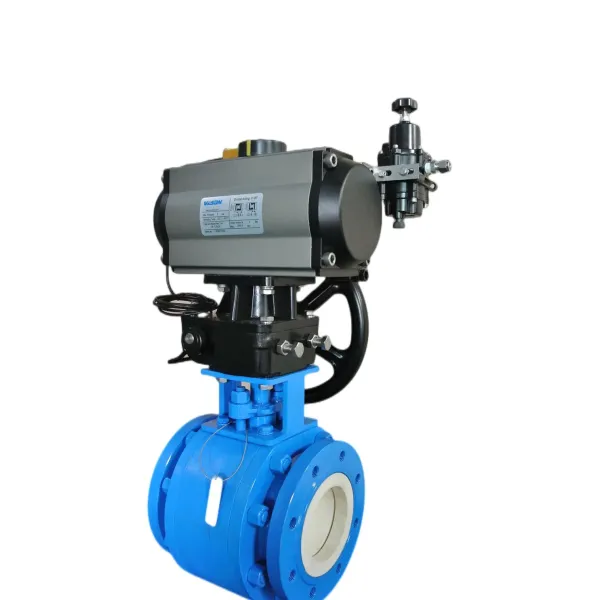

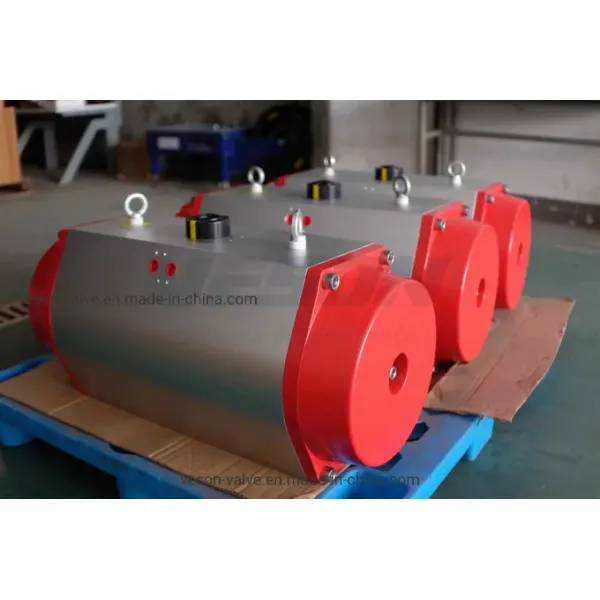

Pneumatic Rack and Pinion Actuator with 70NM Output Torque Corrosion Resistant and Namur Connection

Specifications

Model NO. :

VS-075

Connection Form :

Namur & ISO5211

Channel :

Straight Through Type

Structure :

Piston

Type :

Rack & Pinion

Temperature :

Normal Temperature

Standard :

ISO5211

Application :

Industrial Usage, Water Industrial Usage

Transport Package :

Plywood Case Package

Specification :

1 inch-12 inch

Trademark :

VESON or Cusomer"s

Origin :

China

HS Code :

8481804090

Production Capacity :

50000PC / Y

MOQ :

Description

VS-075 (rack& pinion) have the following features.
> The output torque: Double: 70NM; Single: 11~26Nm at 6 bar air supply

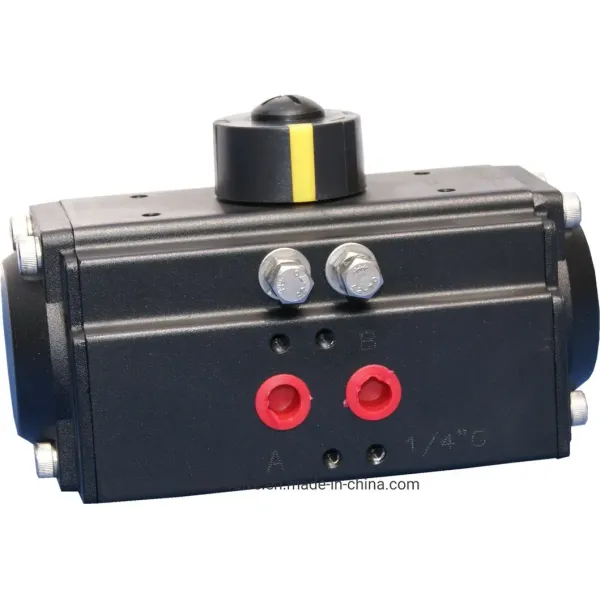

> Bottom drilling complies with ISO5211/DIN3337 to match valve, interface for solenoid valve, shaft top end and top drilling for assembling accessories are in accordance with VDI/VDE3845 (Namur) standard and +/- 5 degree stroke adjustment.

> The actuator body & piston are over 20um hard anodized treatment and over 100um epoxy coated on end caps which meet ASTM B117 qualification, over 500 hours salt spread test, no corrosion on actuator.
> The end cap can be blue, black, grey, yellow etc as your request.
> PTFE, Nickel, Epoxy, Polyester and Ceramic coated against corrosive & abrasive environment are available.
