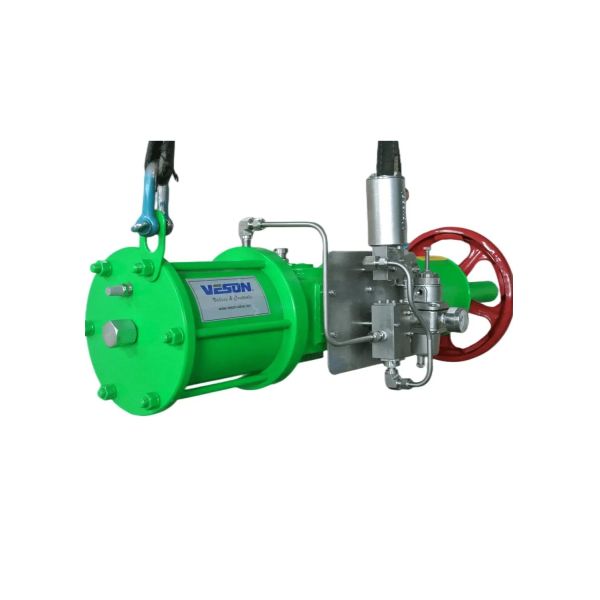

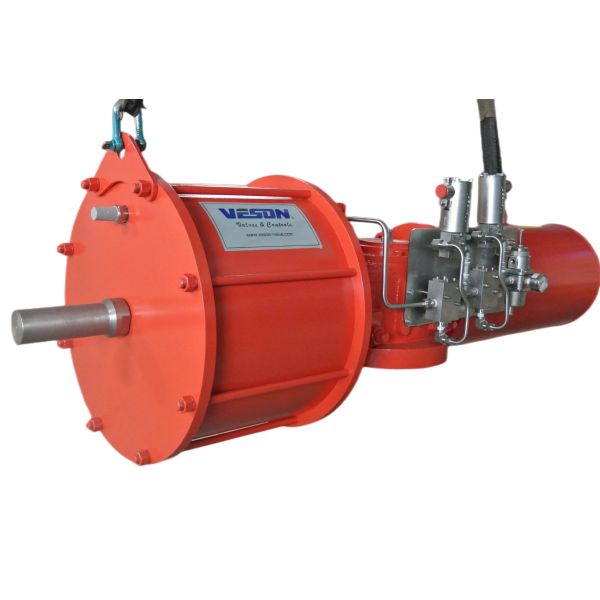

Scotch Yoke Hydraulic Actuator with 135 Bar Pressure 2000psig and High Torque Output

Specifications

MOQ :

Model NO. :

VSF35-550SR-HY

Pressure Direction :

Double-acting Cylinder

Double-Acting Type :

Common Cylinder

Torque Output Double :

830~226,400Nm

Torque Output Spring :

307~71,753Nm

Pneumatic Pressure :

3~8 Bar

Hydraulic Pressure :

70/700/135 Bar

Standard Temperature :

-20° C~80° C

Low Temperature :

-40° C~80° C

High Temperature :

-20° C~150° C

Seal Material Standard :

NBR

Seal Material Low :

HNBR

Seal Material High :

Viton

Production Capacity :

50000PC / Y

HS Code :

84123900

Description

1. Torque Outputs (guaranteed)
Double acting: 830~226, 400Nm
Spring return end torques: 307~71, 753Nm

2. Operating Pressures
Pneumatic: 3~8 Bar
Hydraulic: 70/700/135 Bar (over 100bar hydraulic pressure is available upon request)

3. Operating Temperatures:
Standard: -20° C~80° C(NBR seal)
Low Temperature: -40° C~80° C (HNBR seal)
High Temperature: -20° C~150° C (Viton seal)
