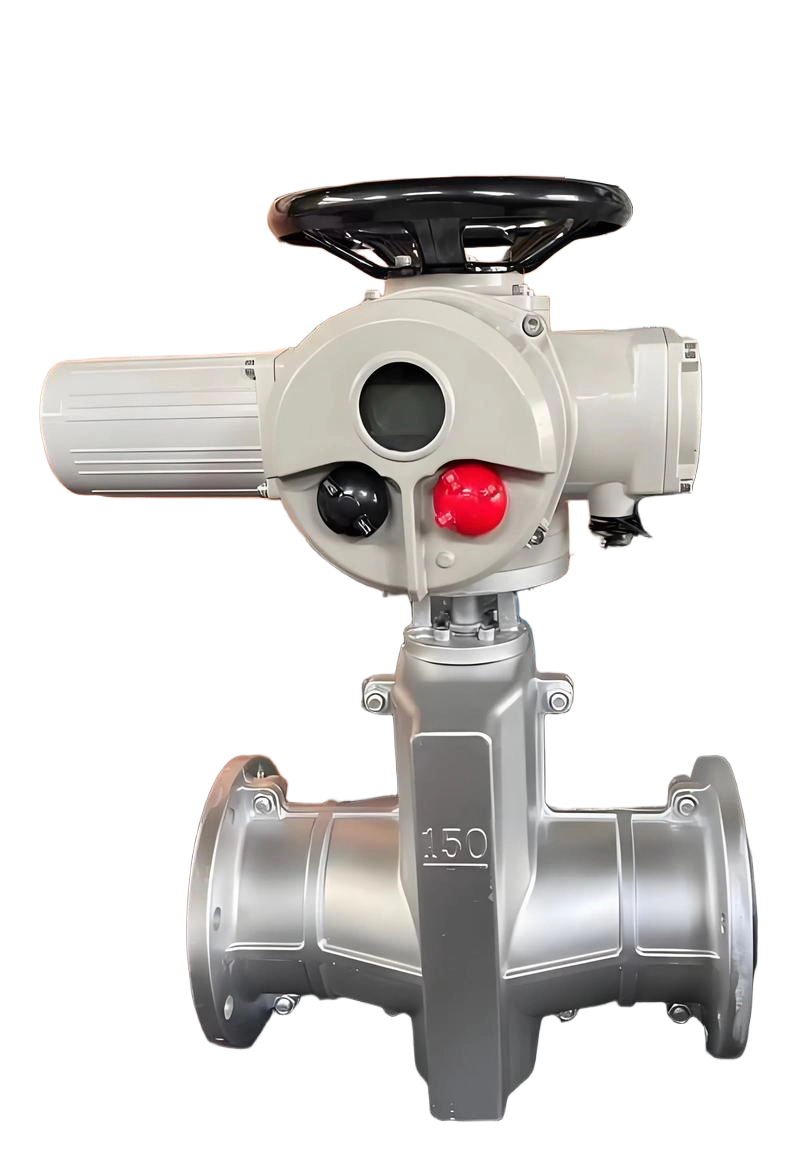

Heavy Duty Electric Pinch Valve Assembly Optimized for Abrasive Slurry Anti-Clogging Applications
Heavy Duty Electric Pinch Valve Assembly Optimized for Abrasive Slurry Anti-Clogging Applications
Heavy Duty Electric Pinch Valve Assembly Optimized for Abrasive Slurry Anti-Clogging Applications
Heavy Duty Electric Pinch Valve Assembly Optimized for Abrasive Slurry Anti-Clogging Applications
Heavy Duty Electric Pinch Valve Assembly Optimized for Abrasive Slurry Anti-Clogging Applications
Heavy Duty Electric Pinch Valve Assembly Optimized for Abrasive Slurry Anti-Clogging Applications
Specifications
Size Range :
DN25 to DN600 (1" to 24")
Operating Temperature :
-40°C to +120°C
Price :
USD 350-2500 / Piece
Payment Terms :
T/T,L/C,PayPal,Western Union
Delivery Time :
5-7 working days for stock, 20-30 days for production
Place of Origin :
Shanghai, China
MOQ :
1 Piece
Body Material :
Cast Iron, Ductile Iron, SS304, SS316
Sleeve Material :
Natural Rubber, EPDM, NBR, NBR Food Grade
Media :
Abrasive Slurry, Mining Tailings, Chemical Sludge
Actuator Type :
Electric Multi-Turn Actuator (4-20mA / Modbus)
Pressure Rating :
PN10 / PN16 / Class 150
Certification :
ISO 9001:2015 SGS
End Connection :
Flanged ANSI B16.5 / DIN PN16
Brand Name :
VESON
Valve Type :
Electric Pinch Valve (Full Bore)
Supply Ability :
2000 Pieces per Month
Packaging Details :
VESON branded plywood case with shock-proof foam insert, export-grade packaging
Description

Heavy Duty Electric Pinch Valve for Abrasive Slurry Anti-Clogging Handling

The VESON Heavy Duty Electric Pinch Valve is engineered specifically for abrasive slurry, mining tailings, and chemical sludge applications where conventional valves suffer from clogging and rapid wear. The full-bore straight-through design ensures unobstructed flow with zero dead zones, while the replaceable reinforced rubber sleeve provides exceptional abrasion resistance and extended service life.

Why Pinch Valve Technology

  • No Internal Obstructions: Full-bore passage eliminates clogging, a critical advantage over ball, gate, and globe valves in slurry service
  • Replaceable Sleeve: The only wetted part is the rubber sleeve, which can be replaced in minutes without removing the valve body from the pipeline
  • Bubble-Tight Shutoff: Even with entrained solids, the rubber sleeve closes around particles for zero-leakage sealing
  • Electric Actuation: Precise 4-20mA or Modbus control with programmable position limits for automated process integration

Technical Specifications

Parameter Specification
Valve Type Electric Pinch Valve (Full Bore, Straight-Through)
Size Range DN25 to DN600 (1" to 24")
Pressure Rating PN10 / PN16 / Class 150
Body Material Cast Iron, Ductile Iron, SS304, SS316
Sleeve Material Natural Rubber, EPDM, NBR, NBR Food Grade
Actuator Type Electric Multi-Turn (4-20mA / Modbus / On-Off)
Power Supply 24V DC, 110V AC, 220V AC, 380V AC 3-Phase
Operating Temperature -40°C to +120°C
End Connection Flanged (ANSI B16.5 / DIN PN16)
Leakage Class Class VI (Bubble-Tight)
Certification ISO 9001:2015, SGS

Target Applications

  • Mining tailings and concentrate slurry transport
  • Chemical plant sludge and abrasive media handling
  • Wastewater treatment with high solids content
  • Dredging and sand slurry pipelines
  • Power plant ash slurry and FGD systems

Each valve undergoes full factory testing with hydrostatic shell and seat leakage tests. Material certificates and FAT documentation included. Contact us for sizing assistance.
