Specifications
Brand Name :
Mindman, AIRWOLF or OEM
Model Number :
MVSC-260-4E1, MVSC-260-4E2, MVSC-260-4E2C, MVSC-260-4E2P, MVSC-260-4E2R
Certification :
ISO Standand
Place of Origin :
Taiwan, China or China
MOQ :
1 piece
Price :
16-34USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
MVSC-260-4E1, MVSC-260-4E2, MVSC-260-4E2C, MVSC-260-4E2P, MVSC-260-4E2R
Material :
Body: Aluminum, Seal: NBR
Operating Pressure :
0.2~0.8 MPa, 0.3~0.8 MPa(4E2C.P.R)
Working Temperature Range :
-5~+50℃
Port Size :
1/4"
Position :
5/2 way, 5/3 way
Working Medium :
Dry compressed air filtered by 40μm
Operating Voltage :
AC110V, AC220V, AC24V, DC24V, DC12V
Description
Mindman MVSC-260-4E1 MVSC-260-4E2 MVSC-260-4E2C.P.R 5/2 way 5/3 way Solenoid Valve 1/4"

Order Codes:

Item Code Port Size Position Type
MVSC-260-4E1 1/4" 5/2 way Single Solenoid
MVSC-260-4E2 1/4" 5/2 way Double Solenoid
MVSC-260-4E2C 1/4" 5/3 way Double Solenoid
MVSC-260-4E2P 1/4" 5/3 way Double Solenoid
MVSC-260-4E2R 1/4" 5/3 way Double Solenoid

Specification:

Model 4E1 4E2 4E2 C.P.R
Bore No. 8A
Port size 1/4
No. of port 5
No. of position 2 3
Medium Air
Operating perssure range 0.2~0.8 MPa 0.3~0.8 MPa
Operating pressure (LP) 0~0.8 MPa
Pilot pressure range (LP) (0.34×P(*1)+0.1)~0.5 MPa
Proof pressure 1 MPa
Effective orifice 18 mm² 16 mm²
Reponse time 40 ms
Ambient temperature -5~+50°C (No freezing)
Voltage AC110V, 220V, 24V (50/60)Hz, DC24V, 12V
Power consumption standard AC=4.8/4.4VA, 6/4.9VA, 6.7/5.4VA, DC=2W, 2.5W
Power saving DC24V=Start: 2W(*2) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight (g) Valve 203 322 327
Manifold 73n+51 (n: Stations)

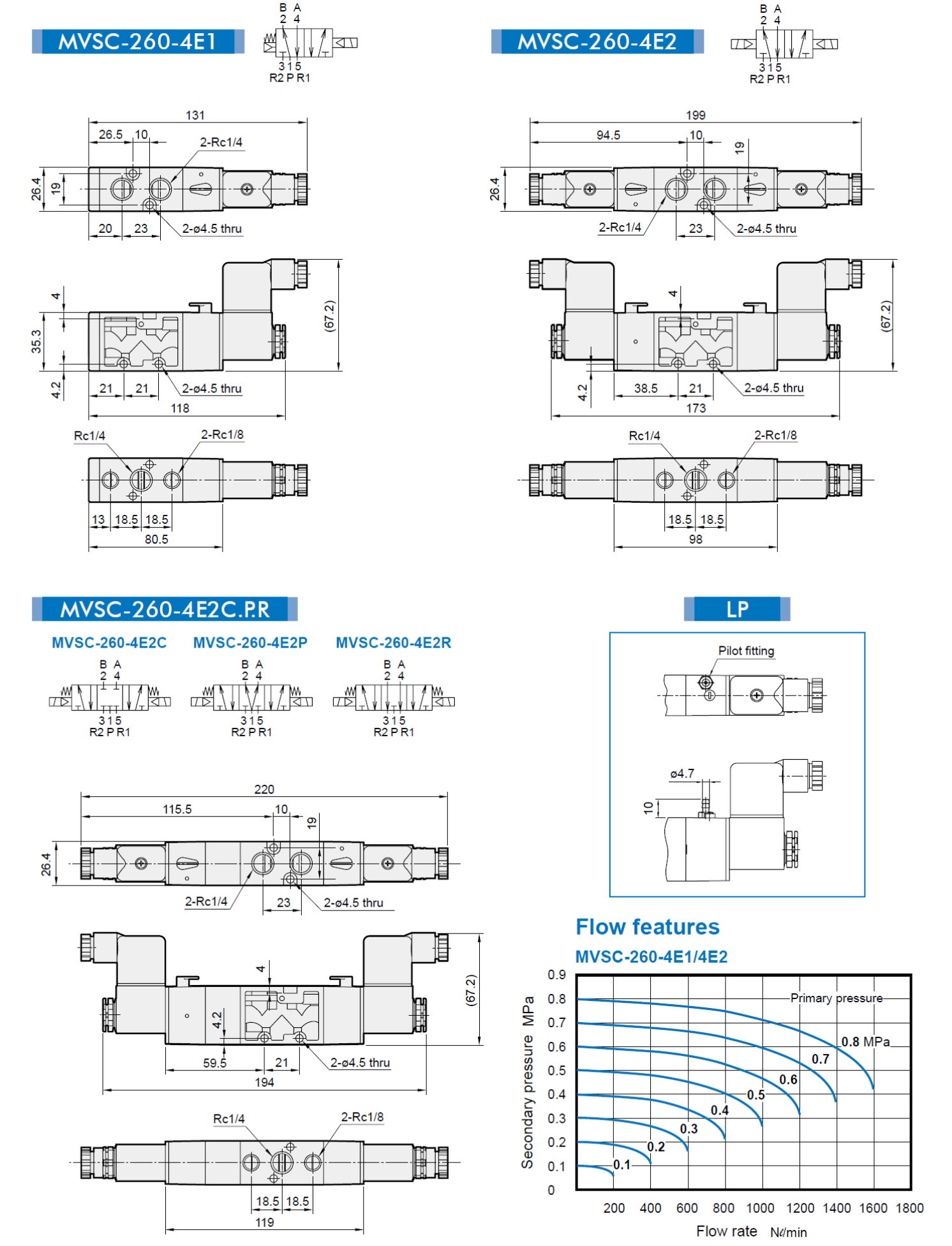

Dimensions:

Mindman MVSC-260-4E1 MVSC-260-4E2 MVSC-260-4E2C.P.R 5/2 way 5/3 way Solenoid Valve 1/4

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:
Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 4) 1 year warranty
4) Produce according to Customers’ instruction 5) Photos/videos are available during production.
5) None delay shipment 6) Loading inspection, and send loading photos before shipment.
