Specifications
Brand Name :
IMI Norgren, AIRWOLF or OEM
Model Number :
8010750, 8010751, 8010850, 8010851
Certification :
ISO Standand
Place of Origin :
Germary, China
MOQ :
1 piece
Price :
49-53USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
8010750, 8010751, 8010850, 8010851
Body Material :
Aluminum
Seal Material :
NBR
Operating Pressure :
0.1~1 MPa
Working Temperature Range :
-10~+50℃
Port Size :
G1/4, G1/2
Position :
3/2 way
Function :
Directional Control
Description
IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2
The IMI Norgren 26230 and 80107 Series NAMUR Solenoid Valves are engineered for high-performance control in industrial automation, featuring a robust aluminum housing and NBR seals for durability in demanding environments. These valves support 3/2-way and 5/2-way configurations with a operating pressure range of 1–10 bar. Their NAMUR interface enables direct mounting to actuators, simplifying installation and reducing setup time. With a flow rate of up to 1325 l/min (G 1/4 port) and compatibility with filtered, lubricated, or non-lubricated compressed air, they ensure efficient regulation for single or double-acting actuators. Ideal for applications like packaging and manufacturing, these valves offer reliable, maintenance-free operation with optional ATEX certification for hazardous areas.

Order Codes:

Item Code Port Size Position
8010750 G1/4 3/2 way
8010751 G1/4 3/2 way
8010850 G1/2 3/2 way
8010851 G1/2 3/2 way

Technical Data:

IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2

Port size Actuation/return Operating pressure (bar) Flow (l/min) Weight (kg) Dimensions No. Solenoid group Model *1)
G1/4 Solenoid/air spring 1 ... 10 1325 0,4 1 B 8010750 *2)
G1/4 Solenoid/air spring 2 ... 8 1325 0,4 1 A 8010751 *2)
G1/2 Solenoid/air spring 1,5 ... 10 3300 0,7 2 B 8010850 *2)
G1/2 Solenoid/air spring 2 ... 8 3300 0,7 2 A 8010851 *2)

*1) When ordering please indicate solenoid, voltage and current type (frequency)

*2) Port 5 cannot be throttled

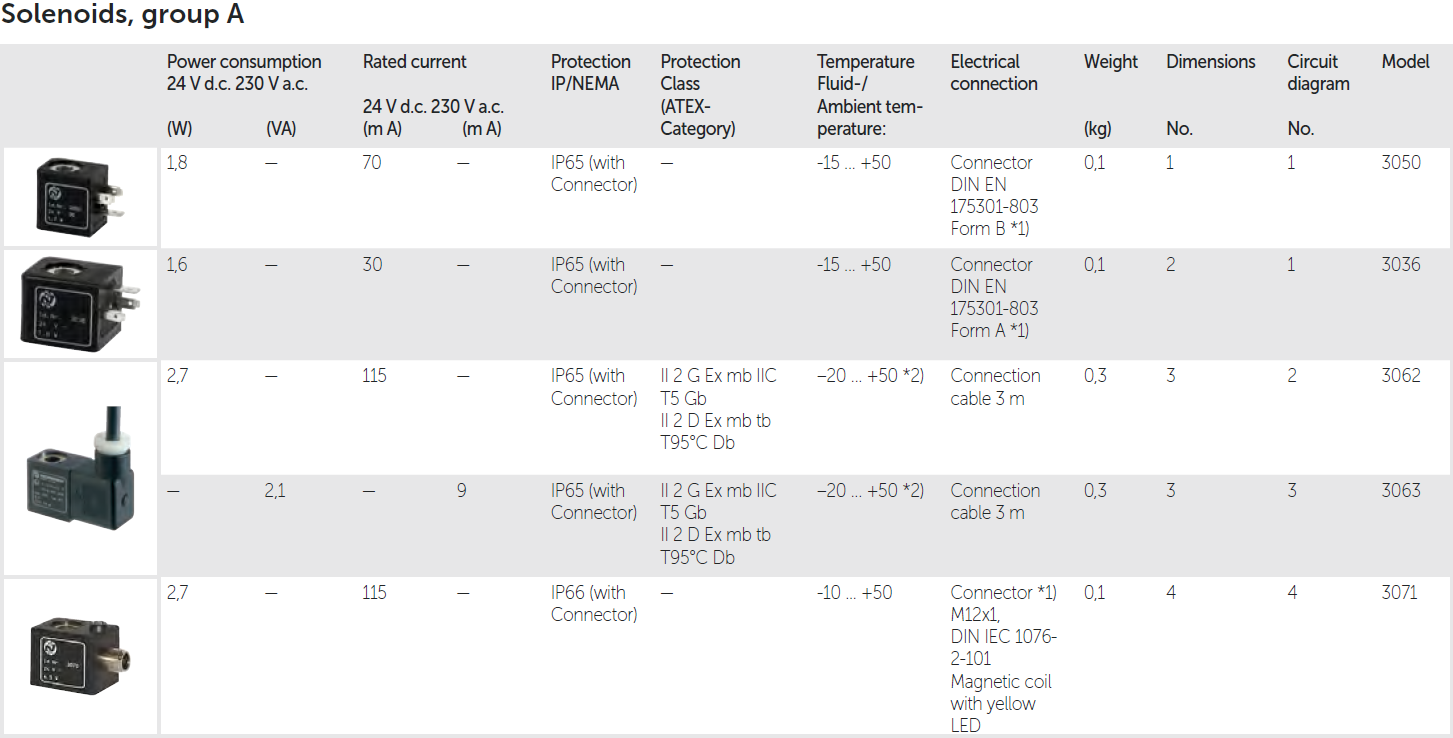

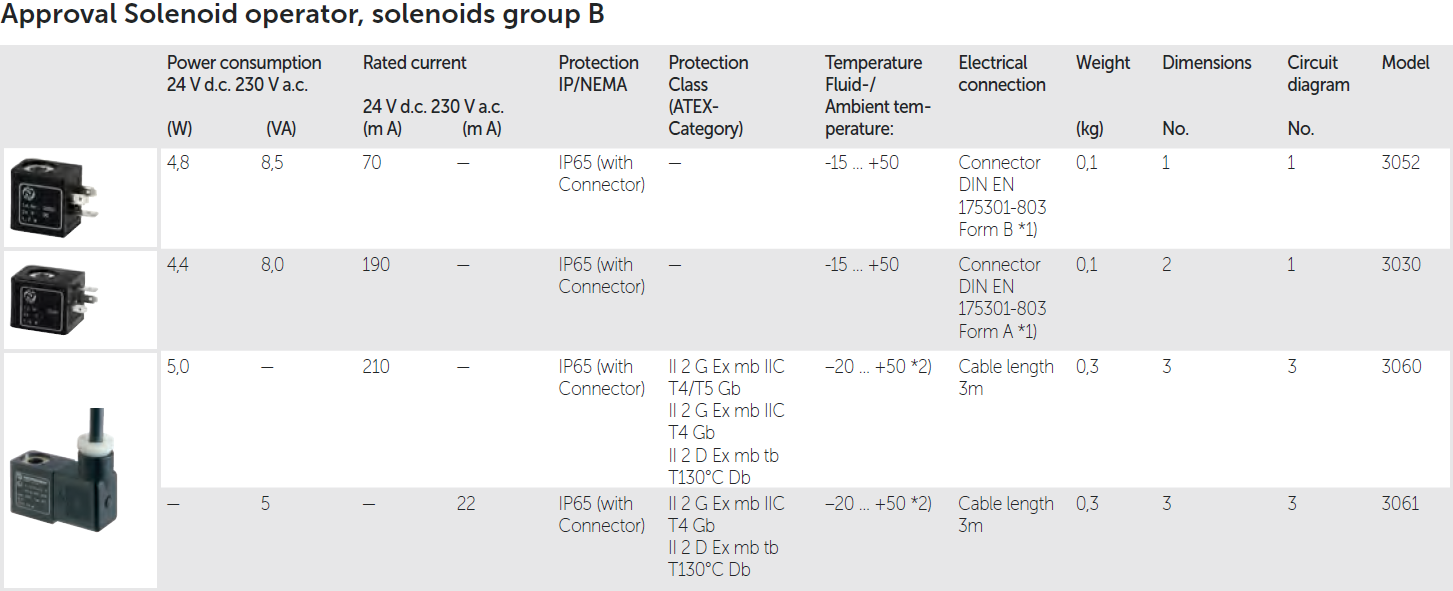

Solenoids:

IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2

Standard voltages (±10%) 24 V DC, 230 V AC. Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation

IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2

Ex e mb IIC T4 Gb Ex tb IllC T120°C Db I IP 65 (with cable gland) Standard voltages (±10%) 24 V d.c., 230 V a.c., other voltages on request.
*1) Connectors not included in the scope of delivery, see accessories
*2) Maximum +40°C for battery installation

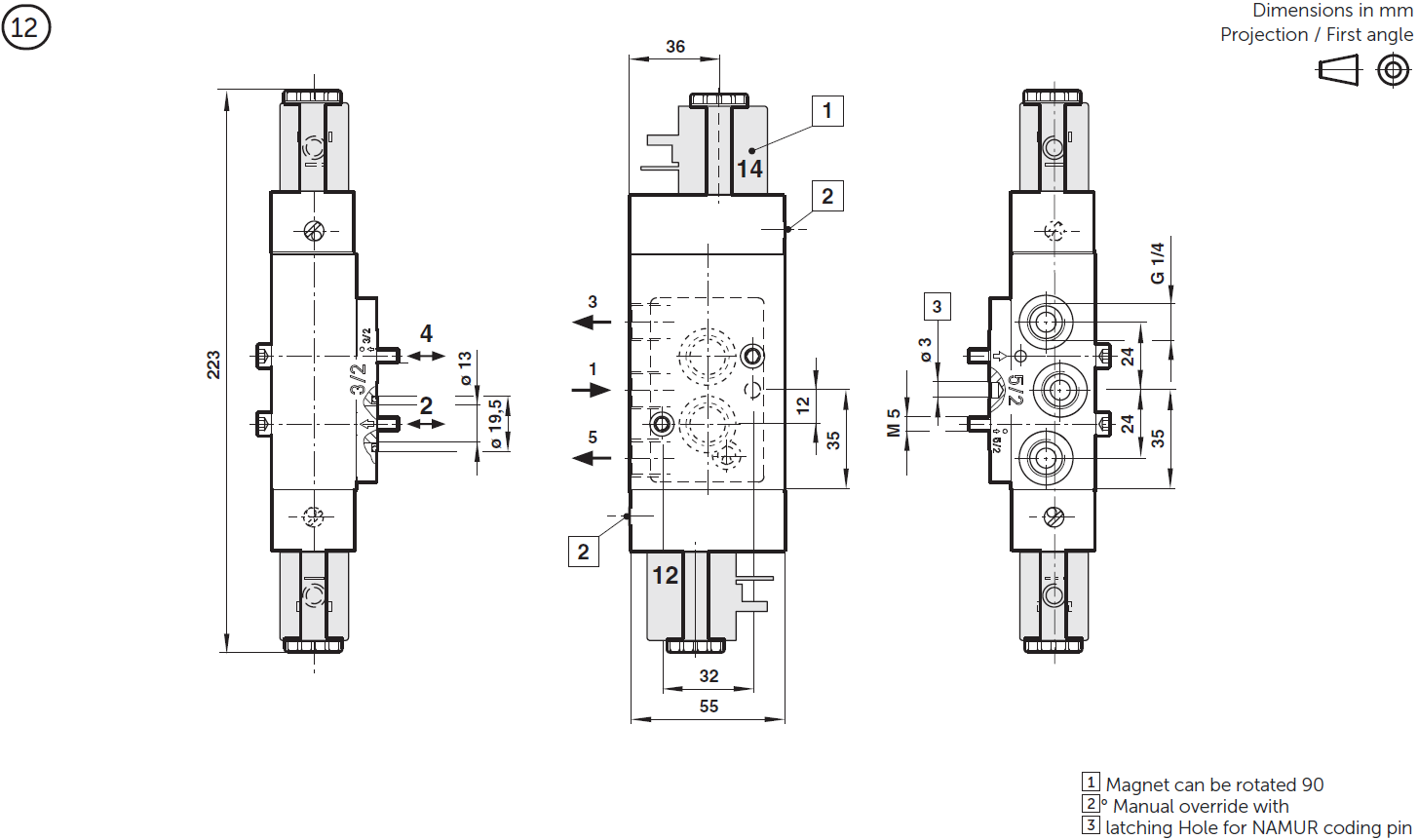

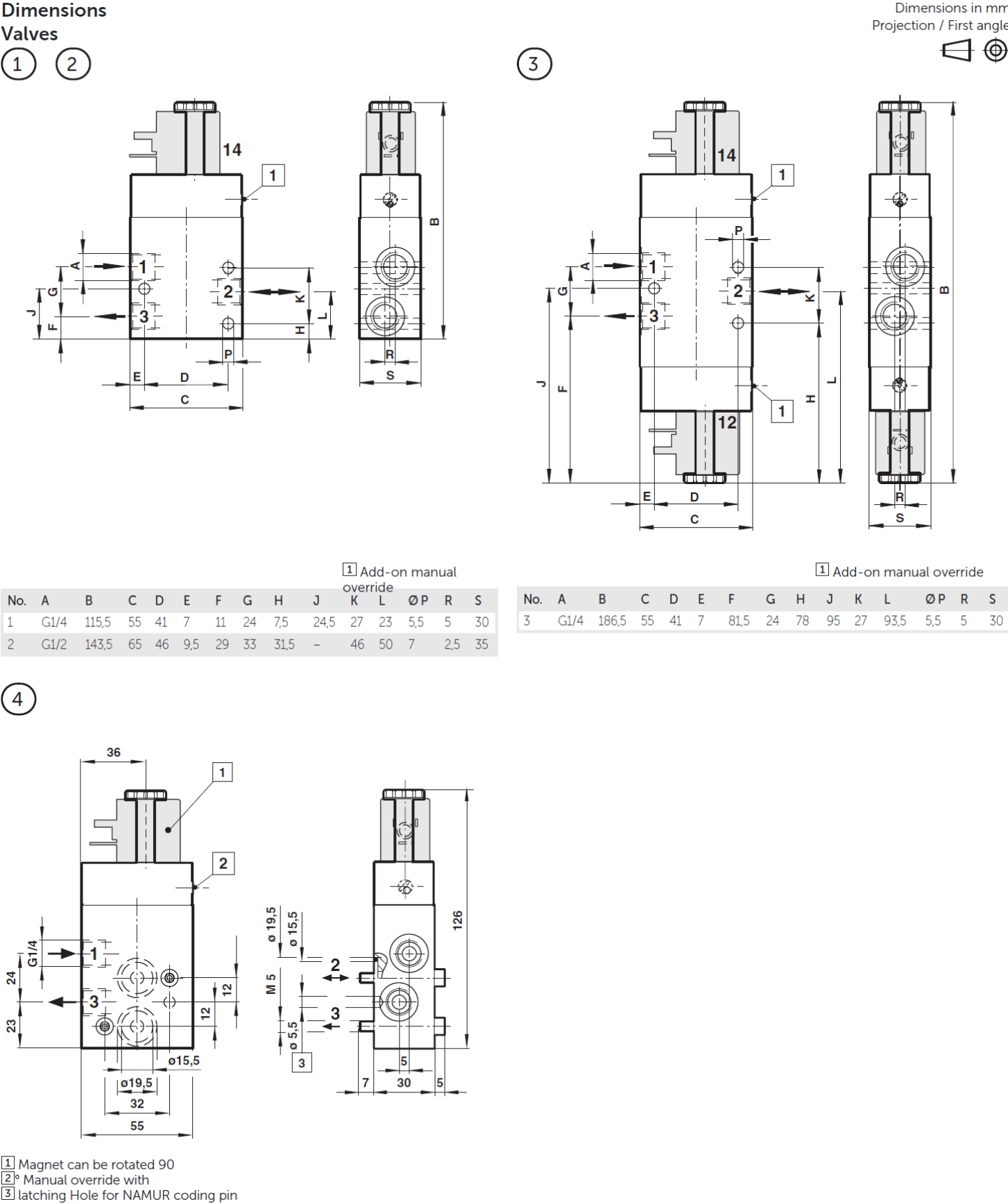

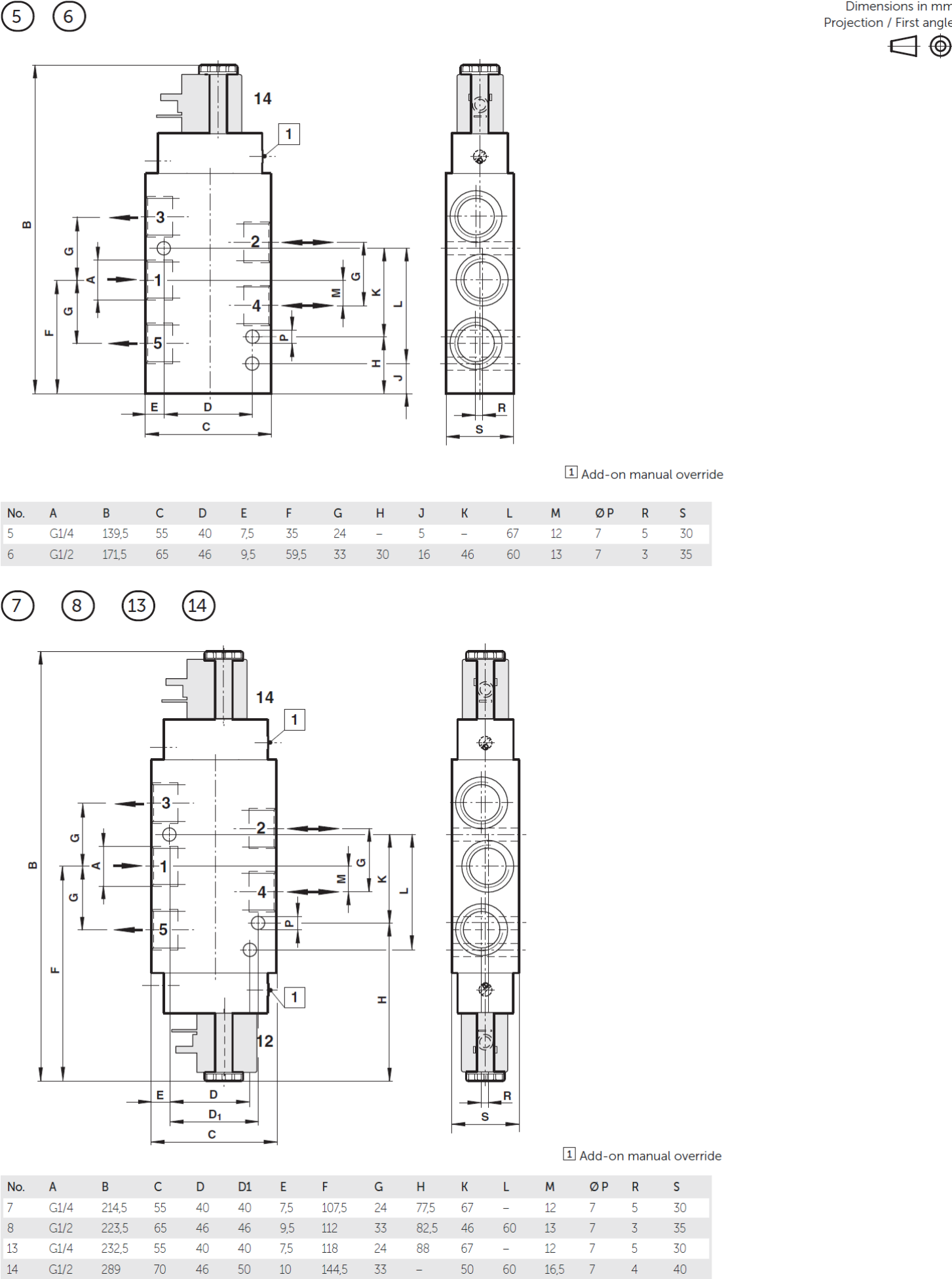

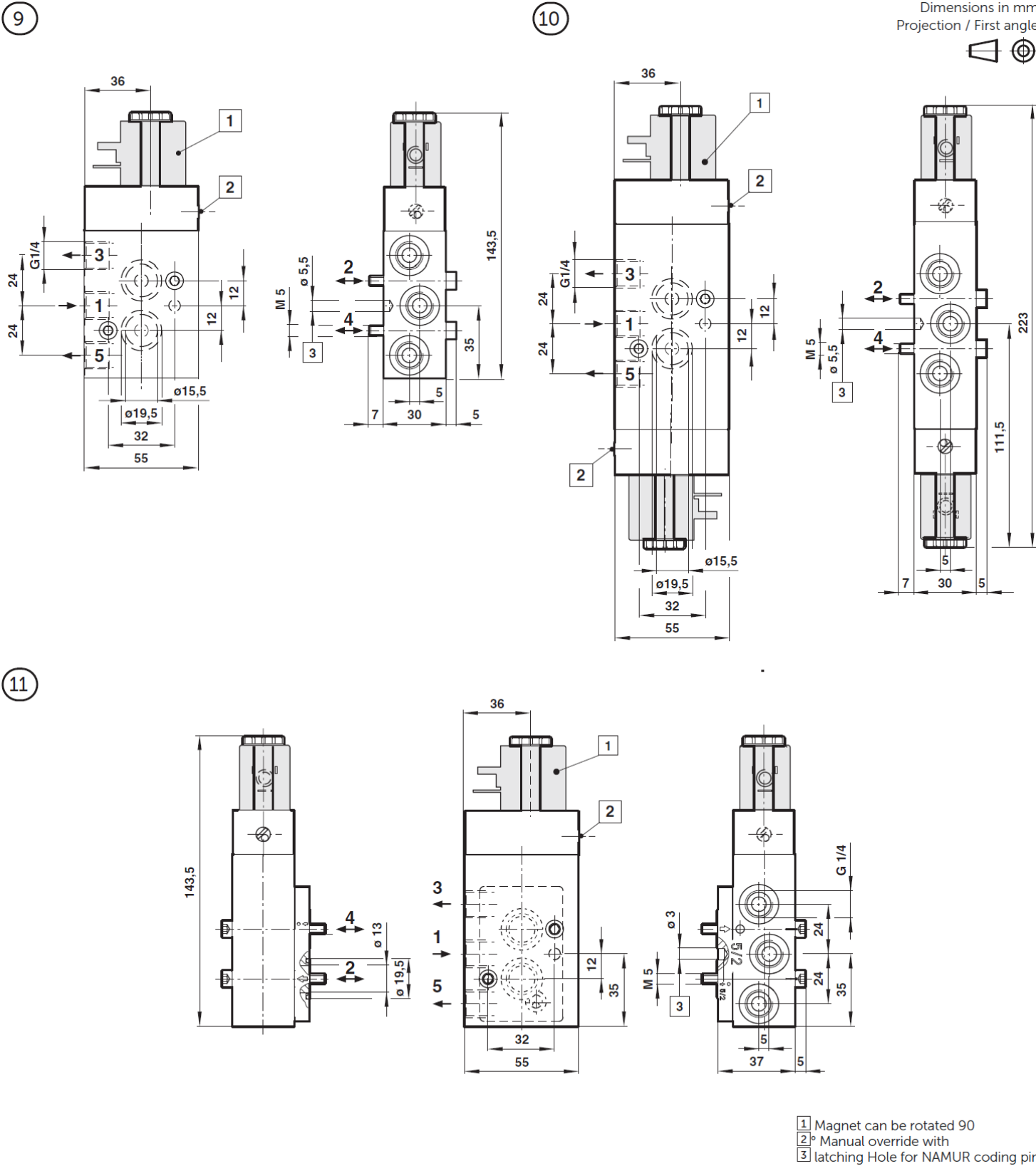

Dimensions:

IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2

IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2

IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2

IMI Norgren 8010750 8010751 8010850 8010851 3/2 way Solenoid Valve G1/4 G1/2
