Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
Specifications
Brand Name :
HYDROMAX
Model Number :
HGP-1AF1R HGP-1AF3R HGP-1AF5R HGP-1AF8R HGP-1AF2R HGP-1AF4R HGP-1AF6R
Place of Origin :
China Taiwan
MOQ :
1
Price :
35-550USD
Payment Terms :
T/T, Western Union, MoneyGram,Paypal
Supply Ability :
500 pcs per week
Delivery Time :
3-12working days
Packaging Details :
poly bags, box, cartons, pallets
Standard Pressure :
103.5 Bar (1500 PSI) AC 207 Bar (3000 PSI) DC
Body Material :
Carbon Steel
Shift Type :
Soft
Mounting type :
Flange
Outlet flow :
8-40L/min
Max. Pressure :
250 kgf/cm2 ( 3500psi )
Displacement :
0.5~7.8 cc/rev
Flange :
SAE 2-bolt, DIN 4-bolt, European 4-bolt
Description

Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R

Displacement : 0.5~7.8 cc/rev
Max. Pressure : 250 kgf/cm2 ( 3500psi )
Flange : SAE 2-bolt, DIN 4-bolt, European 4-bolt

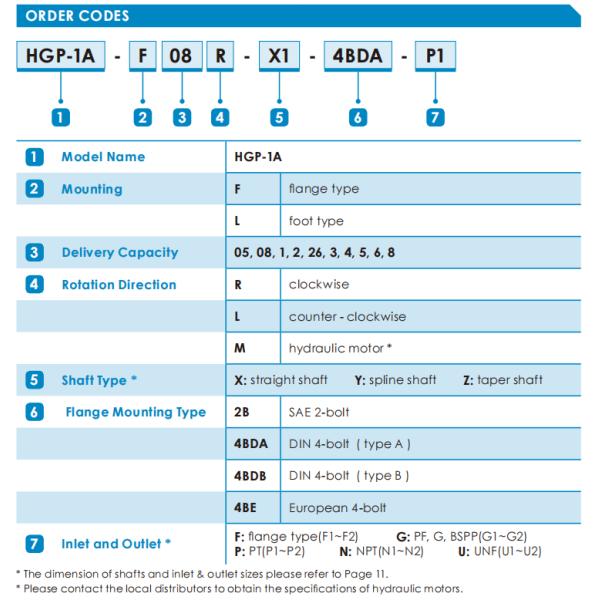

Ordering Code:
HGP-1AF1R
HGP-1AF3R
HGP-1AF5R
HGP-1AF8R
HGP-1AF2R
HGP-1AF4R
HGP-1AF6R

Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
SPECIFICATIONS:

Model Accurate
Displacement
Capacity
(cc/rev)		 Operational
Pressure
(kgf/cm²)		 Max.
Pressure
(kgf/cm²)		 Speed
(r.p.m.)		 Weight
(kg)
Rate Max. Min.
HGP-1A-05 0.5 210 250 1800 4500 1000 1.0
HGP-1A-08 0.8 210 250 1800 4500 1000 1.0
HGP-1A-1 1 210 250 1800 4500 1000 1.0
HGP-1A-2 2 210 250 1800 4500 600 1.05
HGP-1A-26 2.6 210 250 1800 4500 600 1.15
HGP-1A-3 3 210 250 1800 4500 600 1.15
HGP-1A-4 4 210 250 1800 4000 600 1.18
HGP-1A-5 5 210 250 1800 3200 600 1.2
HGP-1A-6 6 210 250 1800 3200 600 1.3
HGP-1A-8 7.8 170 210 1800 3200 600 1.4

HGP-1A-05 and HGP-1A-26 do not belong to regular products. Customized service can be provided.

Taiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5RTaiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5RTaiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5RTaiwan Gear Oil Pump HYDROMAX HGP-1AF6R HGP-1AF3R HGP-1AF5R
