Mindman MVSE-500-4E1 MVSE-500-4E2 5/2 way Solenoid Valve 1/2
Mindman MVSE-500-4E1 MVSE-500-4E2 5/2 way Solenoid Valve 1/2
Specifications
Brand Name :
Mindman, AIRWOLF or OEM
Model Number :
MVSE-500-4E1, MVSE-500-4E2
Certification :
ISO Standand
Place of Origin :
Taiwan, China or China
MOQ :
1 piece
Price :
48-61USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
MVSE-500-4E1, MVSE-500-4E2
Material :
Body: Aluminum, Seal: NBR
Operating Pressure :
0.2~1.2 MPa
Working Temperature Range :
-5~+50℃
Port Size :
1/2"
Position :
5/2 way
Working Medium :
Dry compressed air filtered by 40μm
Operating Voltage :
AC110V, AC220V, DC24V
Description
Mindman MVSE-500-4E1 MVSE-500-4E2 5/2 way Solenoid Valve 1/2"

The Mindman MVSE-500 Series is a robust, direct-piping type solenoid valve designed for high-flow pneumatic applications. Its most prominent feature is its 50 mm body width, making it one of the larger models in the MVSE series for handling substantial air volumes . It is configured as a 5-port, 2-position (5/2) valve​ and features a PT 1/2 (Rc1/2) port size​ . Engineered for demanding industrial use, it operates within a pressure range of 0.2 to 1.2 MPa (approximately 2 to 12 kgf/cm²), with a maximum proof pressure of 1.5 MPa . This valve is capable of delivering a high flow rate, with specifications indicating 1820 Nl/min to 2232 liters per minute, ensuring efficient control of large pneumatic actuators.

Order Codes:

Item Code Port Size Position Type
MVSE-500-4E1 1/2" 5/2 way Single Solenoid
MVSE-500-4E2 1/2" 5/2 way Double Solenoid

Specification:

Model 4E1 4E2
Bore No. 15A
Port size 1/2
No. of port 5
No. of position 2
Medium Air
Operating perssure range 0.2~1.2 MPa
Proof pressure 1.5 MPa
Effective orifice 41 mm2
Reponse time 50 ms
Ambient temperature -5~+50℃(No freezing)
Voltage AC110V, 220V(50/60)Hz, DC24V

Power
consumption		 Standard AC=4.8/4.4VA, 6/4.9VA, DC=2W
Power saving DC=Start:2W(*) Power saving: 0.5W
Available voltage range ±10%
Insulation class F class
Weight 453 g 554 g

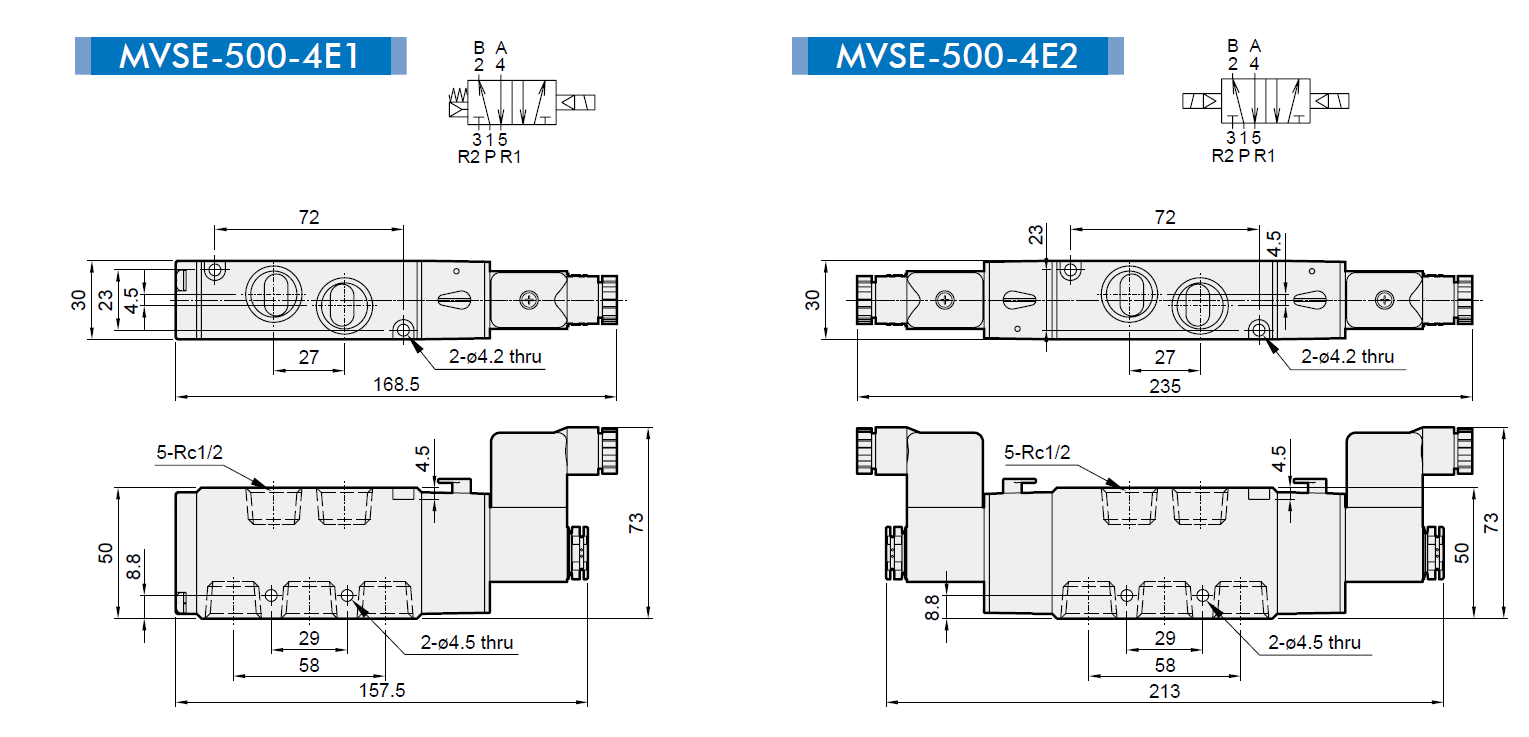

Dimensions:

Mindman MVSE-500-4E1 MVSE-500-4E2 5/2 way Solenoid Valve 1/2
