IMI Norgren RA/8032/M/25 RA/8032/M/50 RA/8032/M/80 RA/8032/M/100 Double-Acting Cylinder
IMI Norgren RA/8032/M/25 RA/8032/M/50 RA/8032/M/80 RA/8032/M/100 Double-Acting Cylinder
IMI Norgren RA/8032/M/25 RA/8032/M/50 RA/8032/M/80 RA/8032/M/100 Double-Acting Cylinder
IMI Norgren RA/8032/M/25 RA/8032/M/50 RA/8032/M/80 RA/8032/M/100 Double-Acting Cylinder
Specifications
Brand Name :
IMI Norgren, AIRWOLF or OEM
Model Number :
RA/8032/M/25, RA/8032/M/50, RA/8032/M/80, RA/8032/M/100
Certification :
CE, ISO9001
Place of Origin :
UK, China
MOQ :
1 piece
Price :
10-186USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
RA/8032/M/25, RA/8032/M/50, RA/8032/M/80, RA/8032/M/100
Barrel Material :
Anodised aluminium
Piston Rod Material :
Stainless steel
Working Pressure :
1~16 bar
Operating temperature :
-10~+80℃
Bore Size :
32mm
Stroke :
25, 50, 80, 100mm
Feature :
Double acting, adjustable cushioning
Description
IMI Norgren RA/8032/M/25 RA/8032/M/50 RA/8032/M/80 RA/8032/M/100 Double-Acting Cylinder
The IMI Norgren RA/8000/M Series Cylinder is a versatile pneumatic roundline cylinder designed for general-purpose industrial automation. It features a double-acting mechanism that provides controlled linear movement in both directions, constructed with durable stainless steel barrels and rods for excellent corrosion resistance. Key design elements include polyurethane buffers and nitrile rubber seals that ensure long-lasting performance with minimal maintenance requirements, making it a reliable workhorse for various mechanical applications.
Order Codes:
Item Code Bore Size (ø mm) Stroke (mm) Type
RA/8032/M/25 32 25 Round barrel
RA/8032/M/50 32 50 Round barrel
RA/8032/M/80 32 80 Round barrel
RA/8032/M/100 32 100 Round barrel
Datasheet:
Cylinder ø (mm) 32 40 50 63 80 100 125 160 200 250 320
Profile barrel ● ● ● ● ● ● ●



Round barrel ● ● ● ● ● ● ● ● ● ● ●
Port size G1/8 G1/4 G1/4 G3/8 G3/8 G1/2 G1/2 G3/4 G3/4 G1 G1
Piston rod ø (mm) 12 16 20 20 25 25 32 40 40 50 63
Piston rod thread M10 x 1,25 M12 x 1,25 M16 x 1,5 M16 x 1,5 M20 x 1,5 M20 x 1,5 M27 x 2 M36 x 2 M36 x 2 M42 x 2 M48 x 2
Cushion length (mm) 20 22 24 24 26 33 39 43 43 55 60
Cushioning
Adaptive cushioning systems "ACS"		 ● ● ● ● ● ● ●



Cushioning (adjustable cushion)






● ● ● ●
Initial cushion volume (cm3) 12,8 20,2 36 64 111 235 427 784 1273 2534 4559
Theoretical thrusts at 6 bar outstroke (N) 482 754 1178 1870 3016 4710 7363 12064 18840 29436 48228
Theoretical thrusts at 6 bar instroke (N) 414 633 990 1680 2722 4416 6882 11310 18090 28236 47292
Air consumption at 6 bar outstroke (l/cm) 0,056 0,088 0,137 0,218 0,35 0,55 0,86 1,41 2,2 3,44 5,63
Air consumption at 6 bar instroke (l/cm) 0,048 0,074 0,114 0,195 0,32 0,51 0,79 1,32 2,1 3,3 5,41

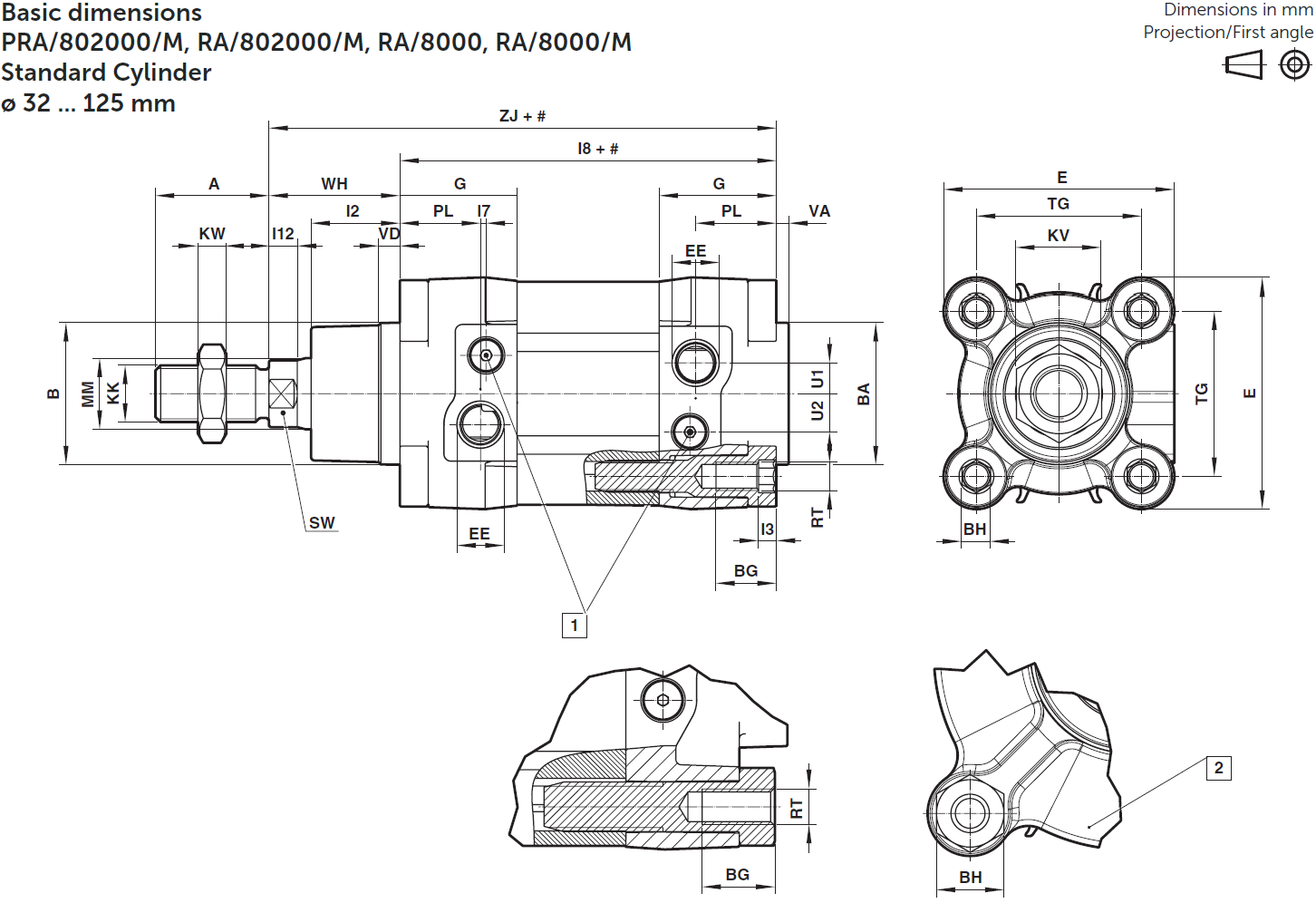

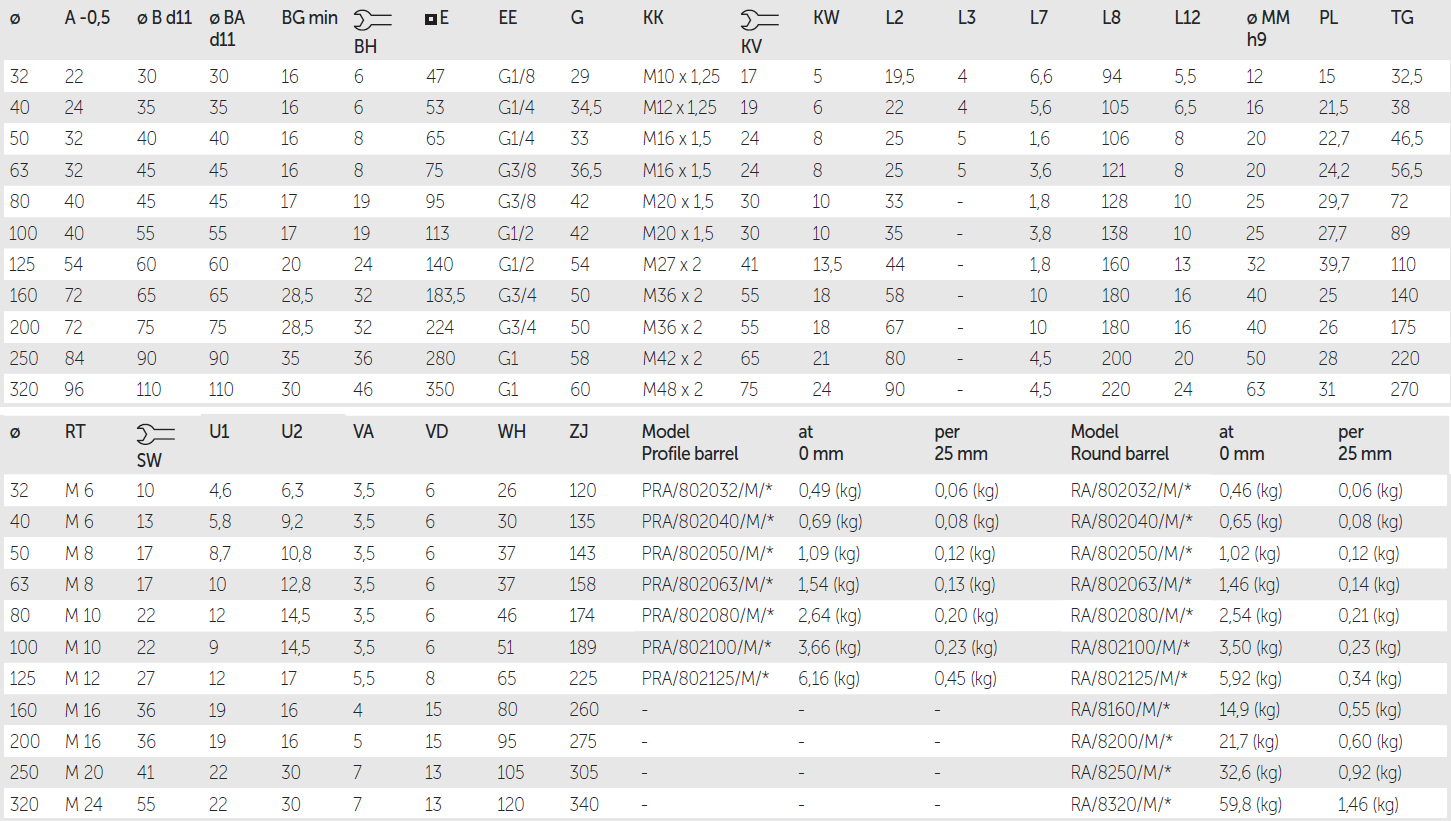

Dimensions:
IMI Norgren RA/8032/M/25 RA/8032/M/50 RA/8032/M/80 RA/8032/M/100 Double-Acting CylinderIMI Norgren RA/8032/M/25 RA/8032/M/50 RA/8032/M/80 RA/8032/M/100 Double-Acting Cylinder* Please insert stroke length.
