XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
Specifications
Brand Name :
SXPC AIRWOLF or OEM
Model Number :
XQ230440 XQ230640 XQ250440 XQ250640
Place of Origin :
CHINA
MOQ :
1 piece
Price :
5-10USD
Payment Terms :
T/T, Paypal, Western Union, Alibaba
Supply Ability :
1000 pcs per week
Delivery Time :
1-3 work days
Packaging Details :
plastic bags, carton, pallet
Body Material :
Aluminum
Seal Material :
NBR
Operating Pressure :
0.2-1.0MPa
Working Temperature Range :
-10~+60 ℃
Operating voltage :
DC12V DC24V AC110V AC220V
Port Size :
1/8", 1/4"
Position :
3/2way, 5/2way
Working Medium :
Dry compressed air filtered by 40μm
Description

XQ Series Aluminum XQ230440 XQ230640 XQ250440 XQ250640 3/2 way 5/2 way Pilot Solenoid Valve 1/4" 1/8"

Order Code:

Item Code Port Size Positions
XQ230440 1/8" 3/2 way
XQ230640 1/4" 3/2 way
XQ250440 1/8" 5/2 way
XQ250640 1/4" 5/2 way

The series is solenoid pilot operated valves with spool construction, reliable direction control and long service life. The double solenoid valve has memory function.
The valve is equipped with manual operator(s) to facilitate the equipment calibration and maintenance.
The series contains a variety of valve models.
The valves are extensively used in controlling cylinders and other pneumatic components.

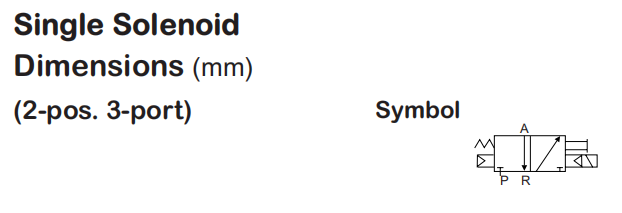

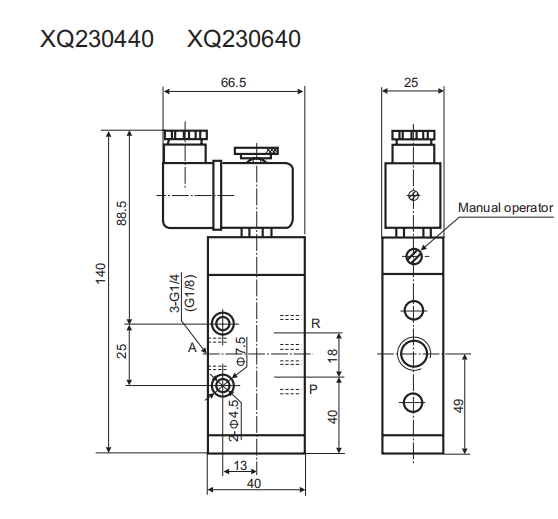

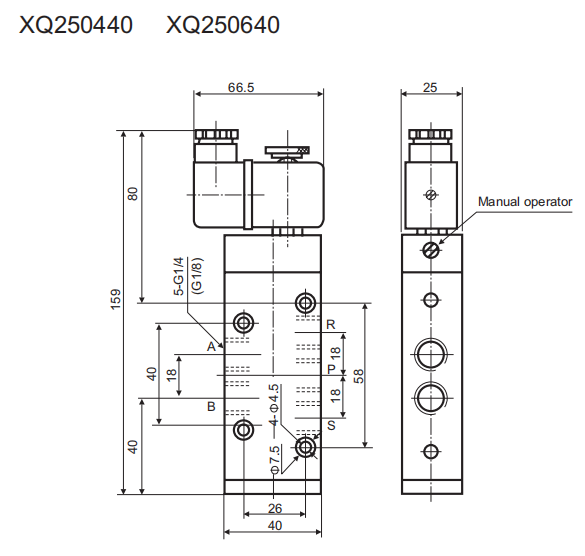

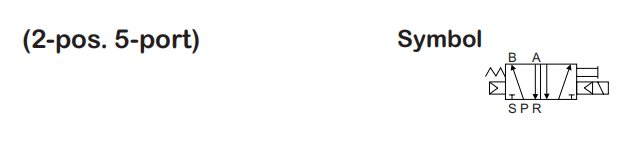

Dimensions:
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
XQ Series Aluminum Pneumatic Solenoid Valve with 0.2-1.0MPa Operating Pressure -10~+60 ℃ Temperature Range and Multi-Voltage DC12V DC24V AC110V AC220V
