RB0604, RB0806, RBC0806 SMC RB Series Carbon steel Shock Absorber
RB0604, RB0806, RBC0806 SMC RB Series Carbon steel Shock Absorber
Specifications
Brand Name :
SMC, AIRWOLF or OEM
Model Number :
RB0604, RB0806, RBC0806
Place of Origin :
Japan, China
MOQ :
1 piece
Price :
3-4USD
Payment Terms :
T/T,Western Union,Paypal
Supply Ability :
1000 pcs per week
Delivery Time :
1-7 work days
Packaging Details :
Boxes, Cartons, Pallets, Plastic bags
Item Code :
RB0604, RB0806, RBC0806
Outer Tube Material :
Free-cutting steel
Piston Material :
Copper Alloy
Piston Rod Material :
Carbon Steel
Rod seal Material :
NBR
Working Temperature Range :
-10~+80℃
Function :
Impact Protection, Shock Absorption
Collision speed :
0.3 to 1.0m/s, 0.05 to 5.0m/s
Description

RB0604, RB0806, RBC0806 SMC RB Series Carbon steel Shock Absorber

Order Codes:

Item Code O.D. Thread Size(mm) Stroke(mm) Type
RB0604 6 4 Basic Type
RB0806 8 6 Basic Type
RBC0806 8 6 With Cap
Specifications:
Model Specifications Basic type RB0604 RB0806
With cap — RBC0806
Max. energy absorption (J) Note 0.5 2.94
Thread O.D. size M6 x 0.75 M8 x 1.0
Stroke (mm) 4 6
Collision speed (m/s) 0.3 to 1.0 0.05 to 5.0
Max. operating frequency (cycle/min) 80 80
Max. allowable thrust (N) 150 245
Ambient temperature range (°C) −10 to 80 (No freezing)
Spring force (N) Extended 3.05 1.96
Retracted 5.59 4.22
Weight (g) Basic type 5.5 15
With cap — 16

Note) The maximum energy absorption, the maximum corresponding mass of impacting object and
maximum operating frequency are measured at room temperature (20 to 25°C).

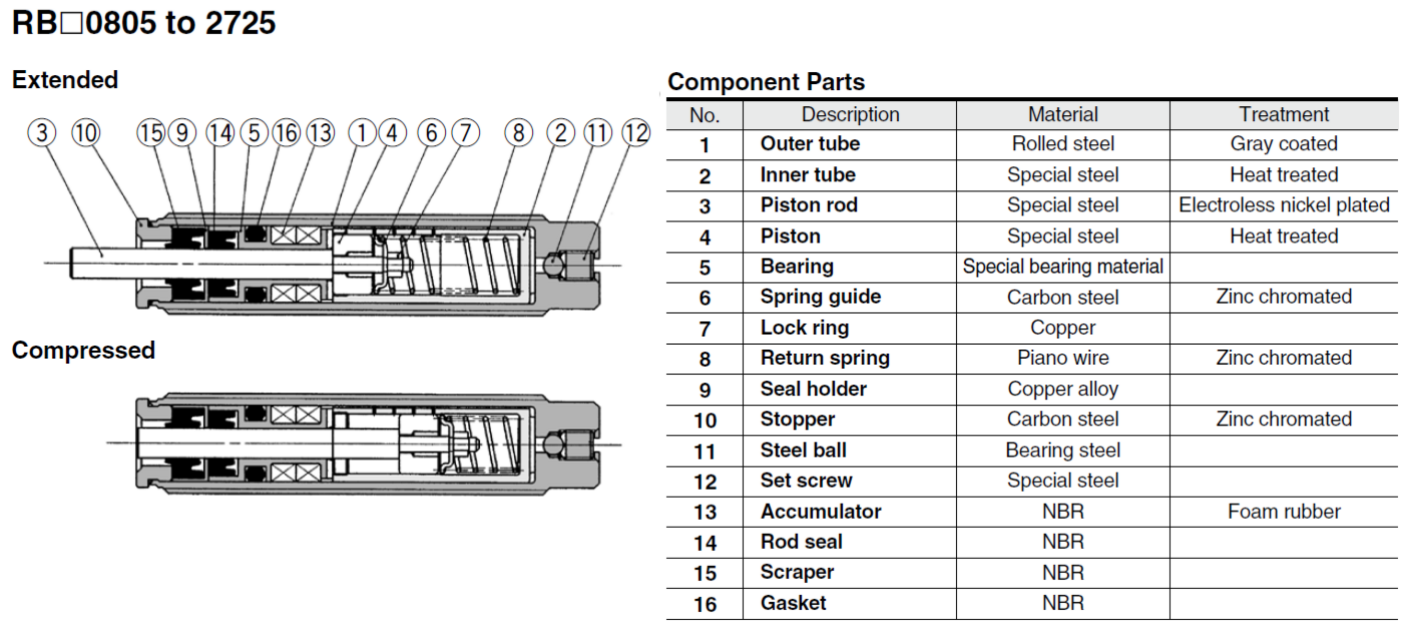

Construction:

RB0604, RB0806, RBC0806 SMC RB Series Carbon steel Shock Absorber

RB0604, RB0806, RBC0806 SMC RB Series Carbon steel Shock Absorber

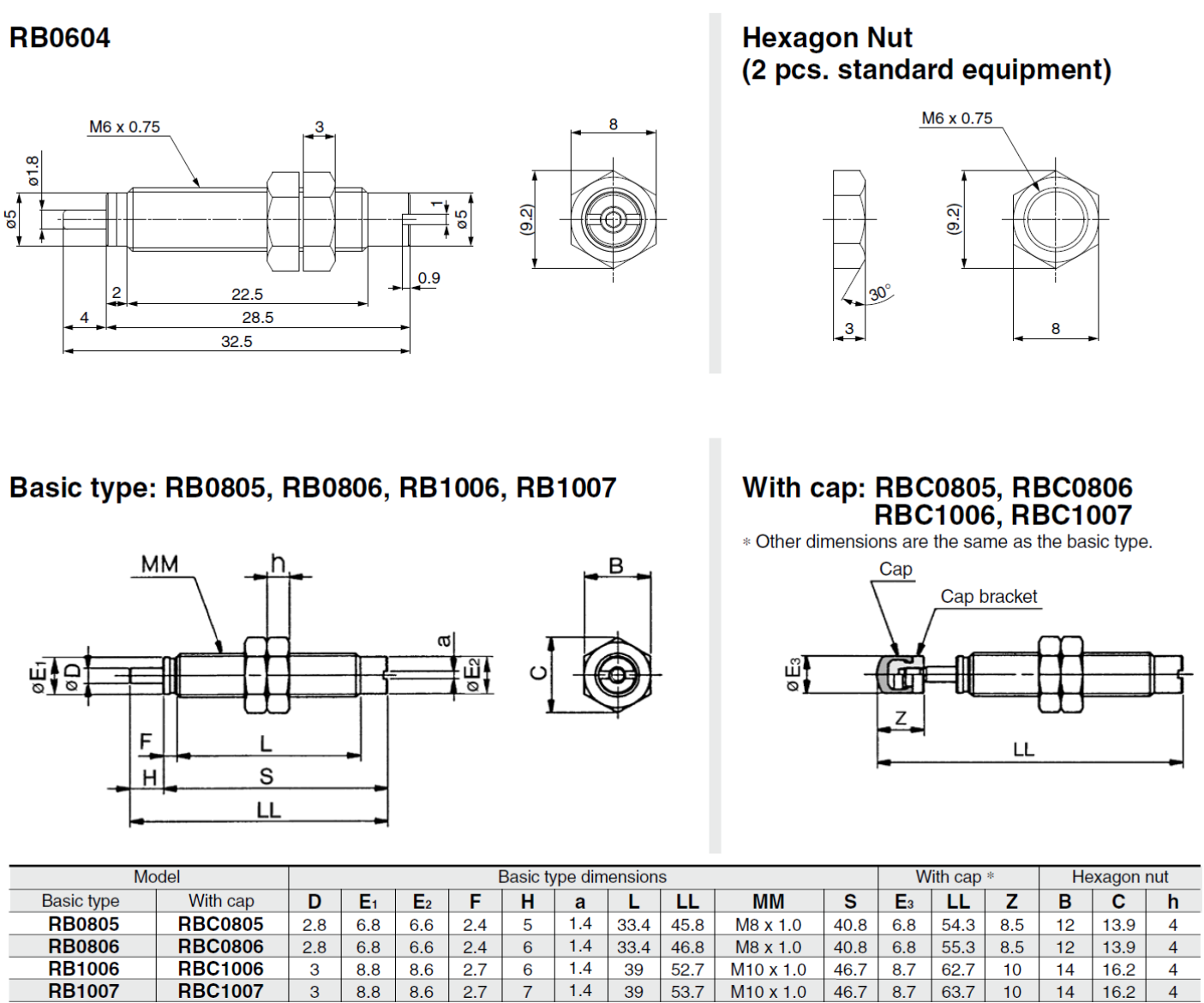

Dimensions:

RB0604, RB0806, RBC0806 SMC RB Series Carbon steel Shock Absorber


Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features: Our Services Guarantee:
1) Competitive price 1) Prompt respond (Reply with 24 hours)
2) Good quality 2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging 3) 1 year warranty
4) Produce according to Customers’ instruction 4) Photos/videos are available during production.
5) None delay shipment 5) Loading inspection, and send loading photos before shipment.
