2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V
Specifications
Brand Name :
AIRWOLF
Model Number :
2W250-25
Certification :
CE
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
Negotiation
Payment Terms :
Western Union, T/T, L/C, Paypal, Credit card
Supply Ability :
2000 pieces per 10 working days
Delivery Time :
1-7 work days
Packaging Details :
Plastic bags, boxes, cartons, Pallets or As customer's requirement
Material :
Brass
Medium :
Air water
Type :
Normally closed
Size :
1inch
Description

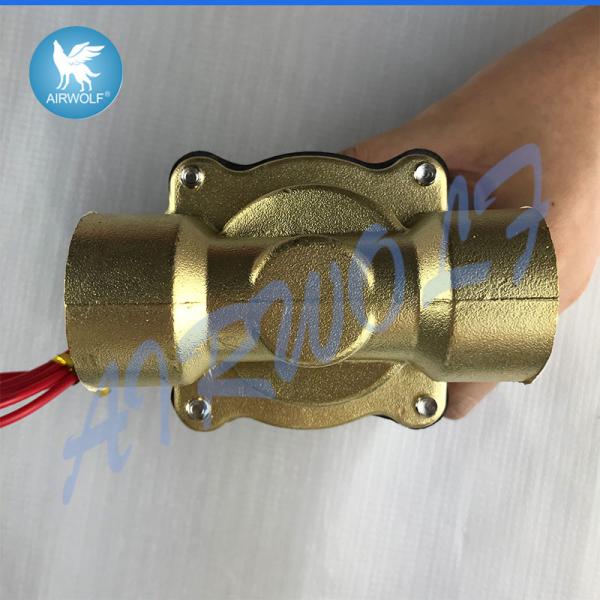

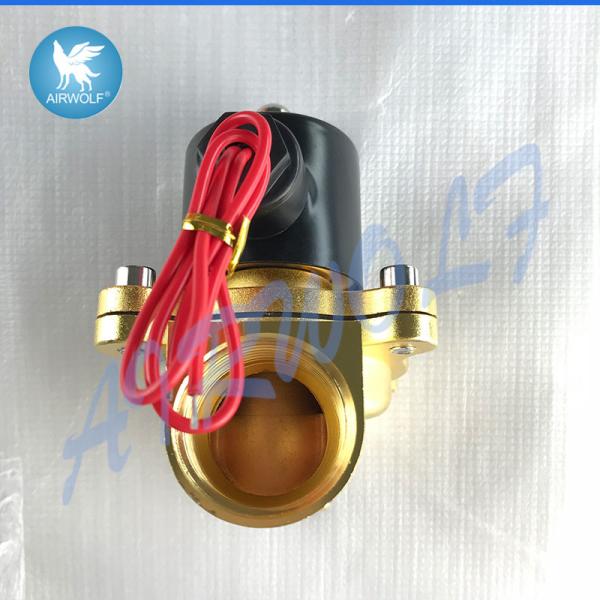

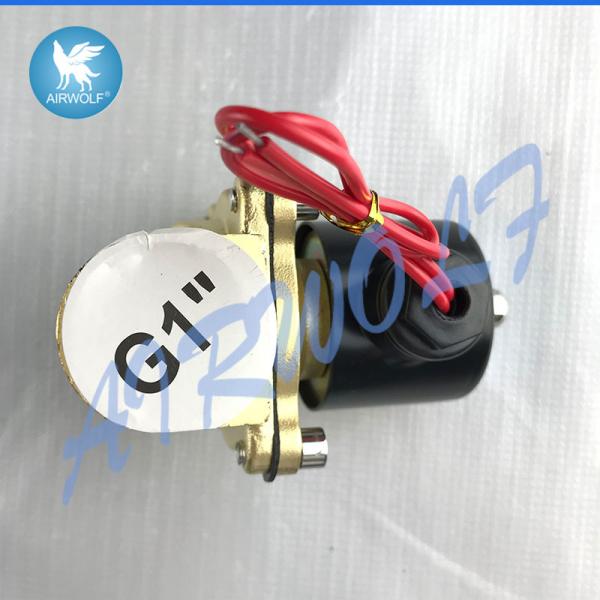

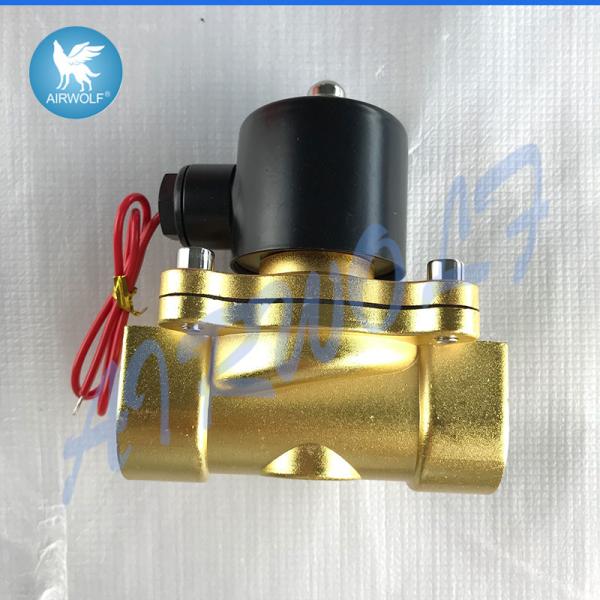

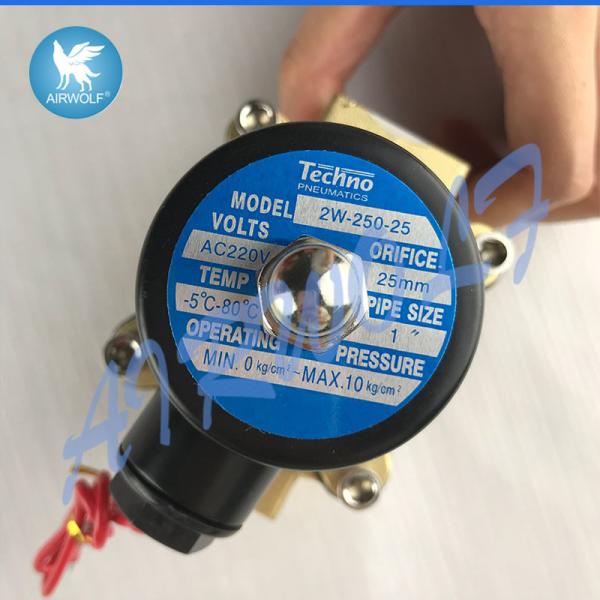

2W250-25 2/2 Way AC220vDC24V Direct Acting Air Water Solenoid Valve

2W series small oriffice Fluid Control Valve, also known zero-pressure solenoid valve, the initial state for normally closed,normally open only available for below 3/8", thread size range from 1/8" to 3/8", Din connector type and flying leads type,anti-explosion and anti-water coil are available. With the stalbe quality and wide application, 2W valve is popular with customers, especially in the water treatment system, the 2W valve is used widely.

2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V2W250-25 Water Solenoid Valves 2/2 Way AC220v DC24V

2W Series 2/2 way Direct Acting Solenoid Valve
Model 2W160-10 2W160-15 2W200-20 2W250-25 2W350-35 2W400-40 2W500-50
Medium Air,Water,Oil,Gas
Operation Direct Acting
Type Normal Close
Orifice Size(mm) 16mm 20mm 25mm 35mm 40mm 50mm
CV Value 4.8 7.6 12 24 29 48
Port Size G3/8" G1/2" G3/4" G1 " G1 1/4" G1 1/2" G2"
Operation Fluid Viscosity Below 20 CST
Operating Pressure Air,0~0.7MPA Water,0~0.5MPA Oil,Gas:0~0.5Mpa
Max Pressure Resistance 1.0MPa
Operating Temperature NBR for -5~80°C and fluororubber for -5~80°C
Voltage Range ±10%
Material of Body Stainless Steel or Brass
Material of Oil Seal NBR,fluororubber

Materials:

PARTS MATERIAL
Body Cast Bronze/ Forge Brass/Zinc Alloy
Coil Special Copper Wire (H)
Core Stainless Steel
Tube Stainless Steel
Spring Stainless Steel
Plug NBR.fluororubber .Silicon, PTFE
Diaphragm NBR.fluororubber .Silicon

One year quality guarantee Policy
We will check the goods quality before shipment. If there are some unexpected problems
happen, we hope to solve the problems with buyer through friendly in the following ways:
1, If it is quality problem, buyer can submit argue within 15days after receiving the goods,
buyer must provide photos or video and other evidence to seller for identify.
2, Man-made damaged, buyers take full responsibility.
3, Product quality processing program:
1) The buyer return the products for bad quality reasons for one year (not included those
damages coursed by shipping or Man-made damaged ). A 15% restocking fee is
assessed for any products returned in "used" condition. And then we will send a new
product to buyer and pay for the resend shipping cost.
2) If the goods (total price including shipping is less than 10USD) has quality problems, we
will resend a new product in buyer next order; if buyer don’t plan to make a new order in
the near term, buyer can pay the resend shipping cost and ask to resend a new product. If
there is an issue with the products, please contact us– we will solve it as soon as we get
your email.
