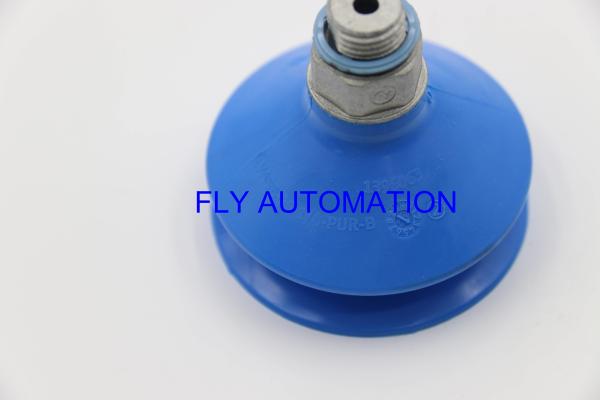

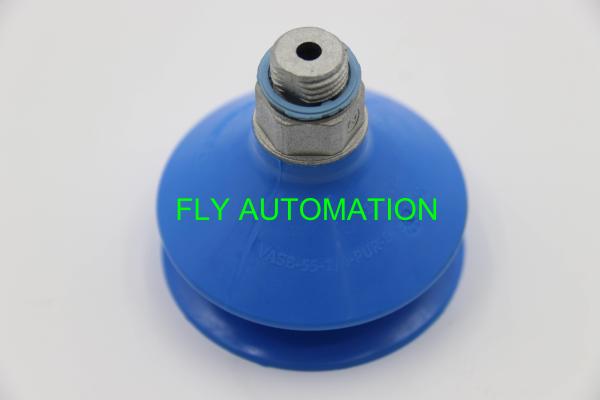

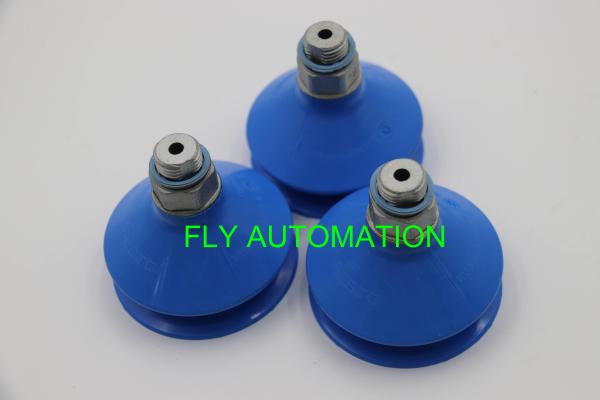

Die Cast Zinc Festo Suction Cup Complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026
Die Cast Zinc Festo Suction Cup Complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026
Die Cast Zinc Festo Suction Cup Complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026
Die Cast Zinc Festo Suction Cup Complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026
Die Cast Zinc Festo Suction Cup Complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026
Die Cast Zinc Festo Suction Cup Complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026
Specifications
Brand Name :
FESTO
Model Number :
VASB-55-1/4-PUR-B
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD20-30
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 pcs per month
Delivery Time :
7-10working days
Packaging Details :
Plastic bag, Carton
Type :
VASB-55-1/4-PUR-B
Part no :
1396063
Brand :
FESTO
Vacuum connection :
G1/4
Product weight :
39 g
Material screw-in stud :
Die-cast zinc
Description

FESTO Suction cup complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026

About product

1.Wide range to suit applications with various temperature ranges and workpiece surfaces.

2.Suction cups made from silicone are food-safe.

3.All tubing connection sizes correspond to a holder size.

Technical Data

Height compensator for suction cup 20 mm
Nominal size 4 mm
Suction cup diameter 55 mm
Position of connection Top
Mounting position optional
Symbol 00991485
Corrosion resistance class CRC 2 - Moderate corrosion stress
LABS (PWIS) conformity VDMA24364-A1-L
Holding force at nominal operating pressure 110 N
Product weight 39 g
Type of mounting Via vacuum port
Vacuum connection G1/4
Colour Blue
Material screw-in stud Die-cast zinc
Note on materials RoHS-compliant
Material suction cup PUR

General technical data

Die Cast Zinc Festo Suction Cup Complete VASB-55-1/4-PUR-B 1396063 GTIN4052568062026

A wide range of products with excellent prices. Please contact me!
