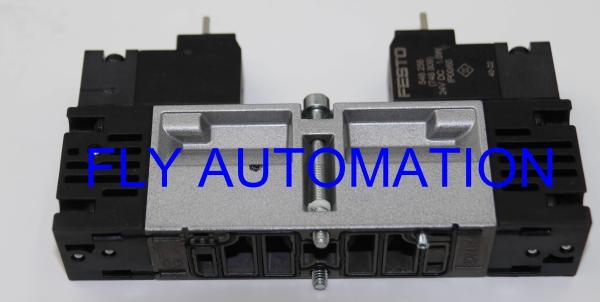

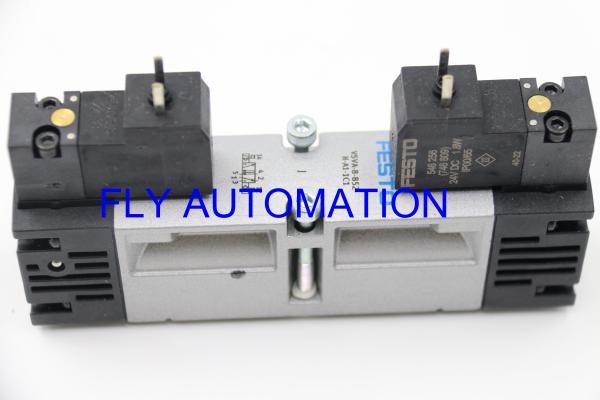

Festo Pneumatic Solenoid Valves VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924
Festo Pneumatic Solenoid Valves VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924
Festo Pneumatic Solenoid Valves VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924
Festo Pneumatic Solenoid Valves VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924
Festo Pneumatic Solenoid Valves VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924
Festo Pneumatic Solenoid Valves VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924
Specifications
Brand Name :
FESTO
Model Number :
VSVA-B-B52-H-A1-1C1
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD150-200
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
500 pcs per month
Delivery Time :
7-10working days
Packaging Details :
Plastic bag, Carton
Type :
VSVA-B-B52-H-A1-1C1
Part no :
546696
Brand :
FESTO
Valve function :
5/2 double solenoid
Type of actuation :
Electric
Material housing :
Die-cast aluminium
Description

FESTO Solenoid valve VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924

About product

1.Reverse operation.

2.Vacuum operation.

3.Individual electrical connection via square or round plug sockets.

4.Valves can be replaced under pressure using a vertical pressure shut-off plate.

5.High-performance valves in a sturdy metal housing.

Technical Data

Valve function 5/2 double solenoid
Type of actuation Electric
Valve size 26 mm
Standard nominal flow rate 1100 l/min
Operating voltage 24V DC
Operating pressure 0.2 MPa ... 1 MPa
Operating pressure 2 bar ... 10 bar
Design Piston gate valve
Approval c UL us - Recognized (OL)
Degree of protection IP65 NEMA 4
Nominal size 9 mm
Exhaust-air function With flow control option
Sealing principle Soft
Mounting position optional
Conforms to standard ISO 15407-1 VDMA 24563
Manual override Non-detenting
Type of piloting Pilot actuated
Pilot air supply Internal
Flow direction Non-reversible
Symbol 00991005
lap Positive overlap
Signal status display LED
Pilot pressure 0.3 MPa ... 1 MPa
Pilot pressure 3 bar ... 10 bar
Flow rate of valve 1400 l/min
Corrosion resistance class CRC 0 - No corrosion stress
LABS (PWIS) conformity VDMA24364-B1/B2-L
Media temperature -5°C-50°C
Sound pressure level 85 dB(A)
Pilot medium Compressed air to ISO 8573-1:2010 [7:4:4]
Ambient temperature -5°C-50°C
Product weight 305 g
Type of mounting On sub-base
Auxiliary pilot air port 12 Sub-base size 26 mm to ISO 15407-1
Auxiliary pilot air port 14 Sub-base size 26 mm to ISO 15407-1
Pilot control interface To ISO 15218
Note on materials RoHS-compliant
Material seals HNBR NBR
Material housing Die-cast aluminium
Material screws Steel Galvanised

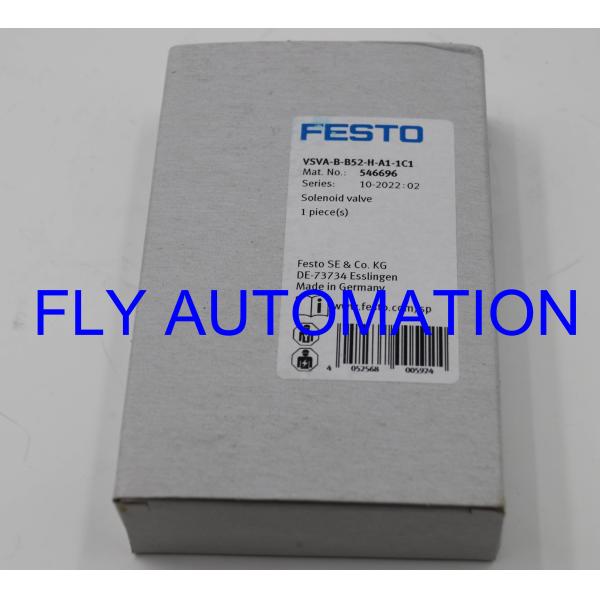

Package picture

Festo Pneumatic Solenoid Valves VSVA-B-B52-H-A1-1C1 546696 GTIN4052568005924

There are many models . Please hurry to me!
