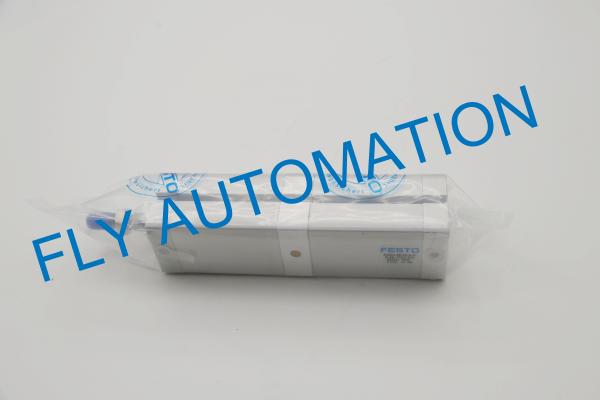

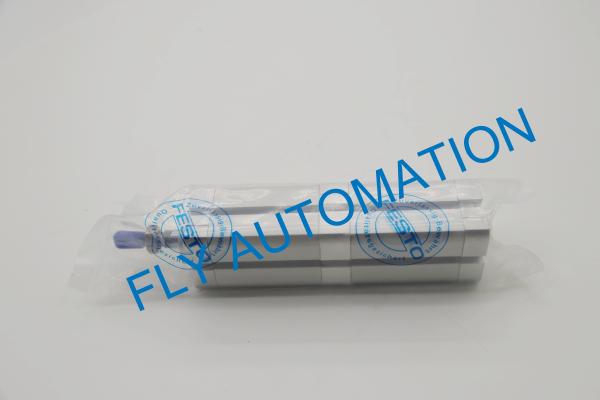

539691 Festo High-Force Cylinder ADNH-25-35-A-P-A-2N-10K2-3K8
539691 Festo High-Force Cylinder ADNH-25-35-A-P-A-2N-10K2-3K8
539691 Festo High-Force Cylinder ADNH-25-35-A-P-A-2N-10K2-3K8
539691 Festo High-Force Cylinder ADNH-25-35-A-P-A-2N-10K2-3K8
539691 Festo High-Force Cylinder ADNH-25-35-A-P-A-2N-10K2-3K8
539691 Festo High-Force Cylinder ADNH-25-35-A-P-A-2N-10K2-3K8
Specifications
Brand Name :
FESTO
Model Number :
ADNH-25-35-A-P-A-2N-10K2-3K8
Place of Origin :
China
MOQ :
1pc
Price :
EXW USD50-80
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
1000 pcs per month
Delivery Time :
7-10working days
Packaging Details :
Plastic bag, Carton
Brand :
FESTO
Part no :
539691
Type :
ADNH-25-35-A-P-A-2N-10K2-3K8
Based on standard :
ISO 21287
Cushioning :
Elastic cushioning rings/plates at both ends
Mode of operation :
Double-acting
Description

Festo High-force cylinder ADNH-25-35-A-P-A-2N-10K2-3K8 539691

About product

A maximum of 4 cylinders can be combined

Owing to the internal compressed air distribution, a total of just 2 connections is required to pressurise all cylinders.

The force of the return stroke corresponds to that of a single cylinder with corresponding piston diameter.

Operation with external limit stop only. The cylinder should not advance to the forward end position.

Technical Data

Stroke 5 mm ... 150 mm
Piston diameter r25 mm
Based on standard ISO 21287
Cushioning Elastic cushioning rings/plates at both ends
Mounting position optional
Mode of operation Double-acting
Cable designation Piston Piston rod Profile barrel
Position detection Via proximity switch
Symbol 00991223 00991246 00991267
LABS (PWIS) conformity VDMA24364-B1/B2-L
Pneumatic connection M5
Note on materials RoHS-compliant
Material cover Wrought aluminium alloy Anodised
Material seals TPE-U(PU)
Material housing Wrought aluminium alloy Anodised
Material piston rod High-alloy steel

There are so many models . Please contact with me!
