Aluminum Alloy Pneumatic Rack Pinion Actuator Control Valves
Aluminum Alloy Pneumatic Rack Pinion Actuator Control Valves
Aluminum Alloy Pneumatic Rack Pinion Actuator Control Valves
Aluminum Alloy Pneumatic Rack Pinion Actuator Control Valves
Aluminum Alloy Pneumatic Rack Pinion Actuator Control Valves
Aluminum Alloy Pneumatic Rack Pinion Actuator Control Valves
Specifications
Brand Name :
OEM
Model Number :
AT32-AT400
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
10-2000
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Type :
Double action Simple action
Material :
Aluminum Alloy
Structure :
Rack & Pinion
Application :
Automatic control valve
Power :
Pneumatic
Temperature :
Normal Temperature,Low Temperature,High Temperature
Media :
hydraulic oil or water
Color :
blue,gray, black according to customer's requirements,customized
Size :
32mm to 400mm
Description

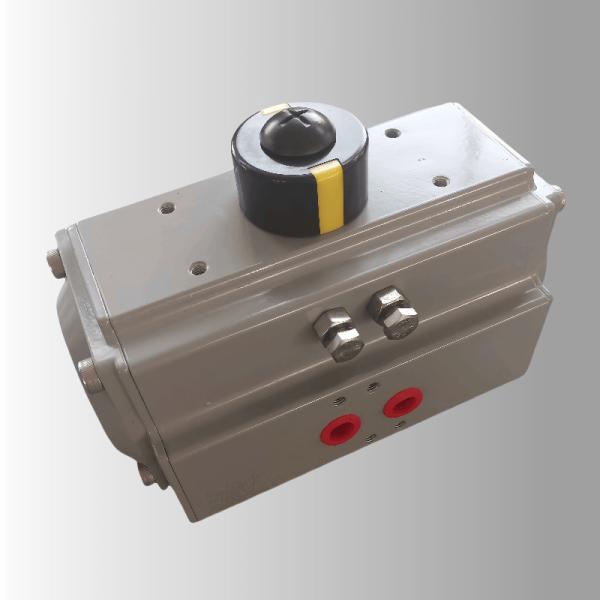

Aluminum Alloy Pneumatic Rack Pinion Actuator Control Valves

Pneumatic actuator

Pneumatic actuators are used for the mechanical opening and closing of various types of equipment, such as dampers, butterfly valves, ball valves, industrial machines and furnaces, burners, heating devices. Pneumatic actuators are air-operated and utilize the differential pressure compared to atmospheric pressure. The energy thus obtained is converted into mechanical motion depending on the type, or the setting of the pneumatic actuator for slow or fast rotation or shifting to the closed or open position.
Pneumatic actuators are highly powerful, reliable, and compact units with fast or slow 90° rotation. They are manufactured in both single-acting and double-acting versions. In addition to the standard manufacturing process, actuators can also be produced with ± 5% stroke adjustment, 180° rotation, and three closing positions (closed, open, half-open). Suitable for use with ball valves, butterfly valves, threads, and dampers.

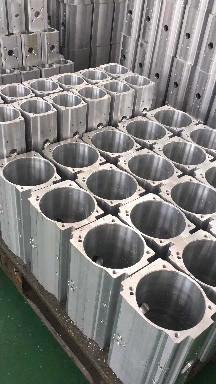

Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange

Main Features

Pneumatic rotary actuator are greatly used in ball valve and butterfly valve.

Low cost, compact design, long working life.

Pneumatic actuator type: single acting (spring return) or double acting.

Color: orange, blue, black, dark gray. we accept OEM colors and brand.

Pneumatic actuator working pressure: 0.3~0.8MPa

Bottom connection: ISO 5211

Solenoid valve standard: Namur

Accessories of pneumatic actuator: limit switch box, solenoid valve, positioner.

Pneumatic Actuator Dimension

Model A B C D H×I G N J K L M Air connection
ATO32 110 45 45 20 50×25 12 9 Æ36 M5×7.5

G1/8"
AT040 122 60 65 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
AT052 147 72 72 20 80×30 14 11 Æ50 Æ36 M6×10 M5×7.5 NAMUR G1/4"
AT063 172 88 83 20 80×30 18 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT075 184 100 95 20 80×30 20 14 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT083 204 109 103 20 80×30 21 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT092 262 117 109 20 80×30 22 17 Æ70 Æ50 M8×13 M6×10 NAMUR G1/4"
AT105 268 133 121 20 80×30 26 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
AT125 301 155 143 20 80×30 27 22 Æ102 Æ70 M10×16 M8×13 NAMUR G1/4"
AT140 394 173 152 20 80×30 32 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
AT160 458 198 174 20 80×30 34 27 Æ125 Æ102 M12×20 M10×16 NAMUR G1/4"
AT190 528 232 206 30 130×30 40 36 Æ140 M16×24 NAMUR G1/4"
AT210 532 257 226 30 130×30 40 36 Æ140 M16×24 NAMUR G1/4"
AT240 660 291 260 30 130×30 50 46 Æ165 M20×25 NAMUR G1/4"
AT270 740 330 294 30 130×30 50 46 Æ165 M20×25 NAMUR G1/2"
AT300 798 354 336 30 130×30 60 46 Æ165 M20×25 NAMUR G1/2"
AT350 880 408 385 30 130×30 60 46 Æ165 M20×25 NAMUR G1/2"
AT400 950 464 516 30 130×30 60 55 Æ254 Æ165 8-M16×25 M20×25 NAMUR G1/2"
