OEM Pneumatic Actuated Ball Valve Spring Return Pneumatic Ball Valve
OEM Pneumatic Actuated Ball Valve Spring Return Pneumatic Ball Valve
OEM Pneumatic Actuated Ball Valve Spring Return Pneumatic Ball Valve
OEM Pneumatic Actuated Ball Valve Spring Return Pneumatic Ball Valve
OEM Pneumatic Actuated Ball Valve Spring Return Pneumatic Ball Valve
OEM Pneumatic Actuated Ball Valve Spring Return Pneumatic Ball Valve
Specifications
Brand Name :
OEM
Model Number :
32mm to 400mm
Certification :
CE.ATEX.ISO9001.SIL3
Place of Origin :
China
MOQ :
1PCS
Price :
10-20000 USD
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 DAYS
Packaging Details :
Foam+Carton Box+Wooden Case
Application :
Ball Valve, Butterfly Valve
Body Color :
Silver
Valve Compatibility :
Ball Valve .Butterfly Valve
Actuator Certification :
ISO9001, CE,SIL3
Usage :
Pneumatic Actuator Control For Valves
Media :
Hydraulic Oil Or Water
Operation Method :
Pneumatic
Actuator Rotation Angle :
90°
Description

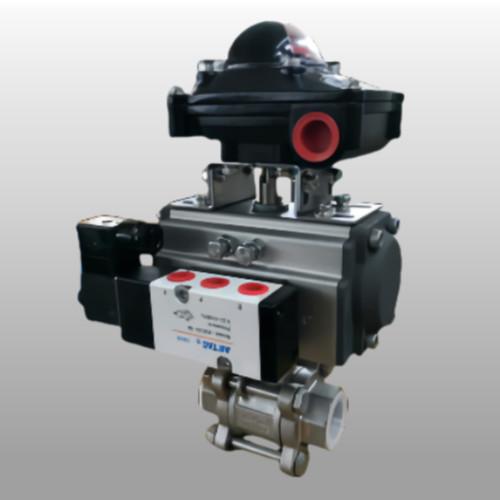

OEM Pneumatic Actuated Ball Valve Spring Return Pneumatic Ball Valve
Product Description

The Spring return Pneumatic Actuator is a versatile and reliable actuator designed for precise control in ball valve and butterfly valve systems. Featuring ISO 5211 and DIN 3337 standard connections, it ensures compatibility and easy installation across various valve types.

Attribute Value
Application Ball Valve, Butterfly Valve
Body Color Silver
Valve Compatibility Ball Valve, Butterfly Valve
Actuator Certification ISO9001, CE, SIL3
Usage Pneumatic Actuator Control For Valves
Media Hydraulic Oil Or Water
Operation Method Pneumatic
Actuator Rotation Angle 90°
Key Features
  • Material: Extruded Aluminum alloy
  • Rotary Angle: 0~90 degree
  • Structure: Rack and pinion rotary actuator
  • Working Pressure: 2~8bar
  • Surface Treatment: Hard anodizing
  • Working Temperature:
    Normal: -20ºC(-4°F) to 80ºC (+176°F)
    High: -15ºC(+5°F) to 150ºC (+302°F)
    Low: -40ºC(-104°F) to 80ºC (+176°F)
  • Connection: NAMUR, ISO5211 and DIN3337
  • Application: Ball valve, butterfly valve, and rotary machine
  • Cup Color Options: Grey, black, sky blue, dark blue, red, orange
Applications

This actuator is ideal for valve automation in industrial settings, offering reliable performance for:

  • Ball valve automation systems
  • Butterfly valve control applications

Certified with CE, ATEX, ISO9001, and SIL3 standards, it meets requirements for high-risk environments.

Frequently Asked Questions
What is the brand name of the Single Action Pneumatic Actuator?
We supply OEM service.
Where is the actuator manufactured?
Manufactured in China.
What certifications does the actuator have?
CE, ATEX, ISO9001, and SIL3 certified.
What is the minimum order quantity?
Minimum order quantity is 1PCS.
Is it suitable for high-risk environments?
Yes, the SIL3 certification makes it suitable for high-risk environments.
