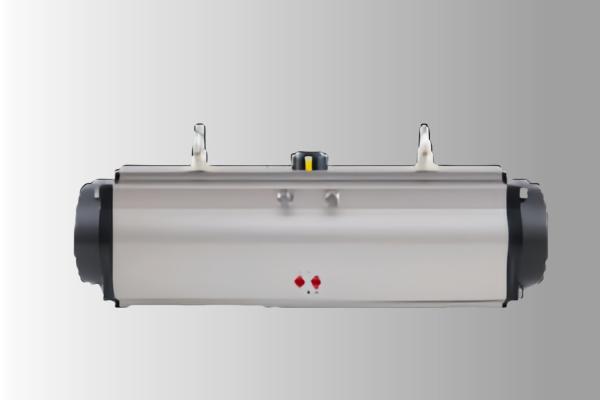

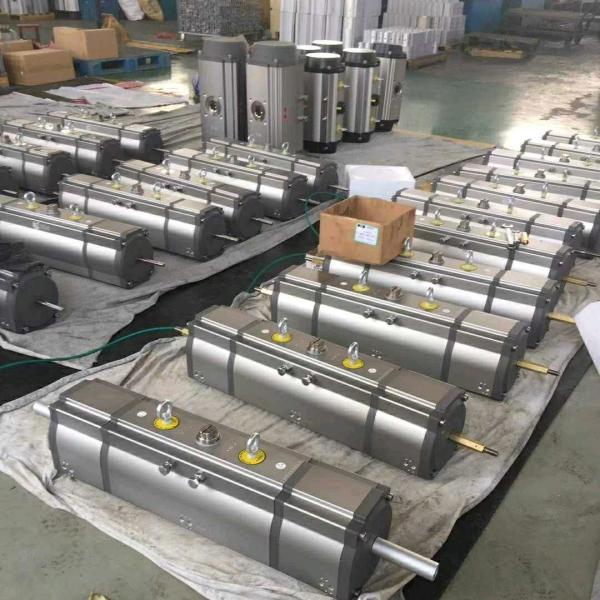

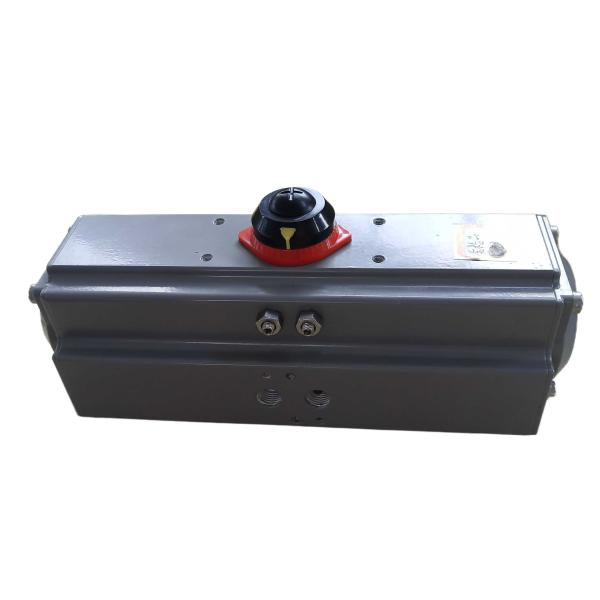

Rack And Pinion Pneumatic Valve Actuator , Rotary Actuator 120 135 180 Degree
Rack And Pinion Pneumatic Valve Actuator , Rotary Actuator 120 135 180 Degree
Rack And Pinion Pneumatic Valve Actuator , Rotary Actuator 120 135 180 Degree
Rack And Pinion Pneumatic Valve Actuator , Rotary Actuator 120 135 180 Degree
Rack And Pinion Pneumatic Valve Actuator , Rotary Actuator 120 135 180 Degree
Rack And Pinion Pneumatic Valve Actuator , Rotary Actuator 120 135 180 Degree
Specifications
Brand Name :
OEM
Model Number :
AT52-AT270
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Price :
10-2000
Installation Valve :
butterfly valves,ball valves
Body :
Aluminum Alloy
Body Color :
Silver
Product name :
Rack And Pinion Three Position Pneumatic Rotary Actuator
Structure :
Rack and Pinion
Operating Temperature Range :
-20°C to 80°C
Description

120 135 180 Degree Rack And Pinion Pneumatic Valve Actuator

Pneumatic actuator

Pneumatic actuators are used for the mechanical opening and closing of various types of equipment, such as dampers, butterfly valves, ball valves, industrial machines and furnaces, burners, heating devices. Pneumatic actuators are air-operated and utilize the differential pressure compared to atmospheric pressure. The energy thus obtained is converted into mechanical motion depending on the type, or the setting of the pneumatic actuator for slow or fast rotation or shifting to the closed or open position.
Pneumatic actuators are highly powerful, reliable, and compact units with fast or slow 90° rotation. They are manufactured in both single-acting and double-acting versions. In addition to the standard manufacturing process, actuators can also be produced with ± 5% stroke adjustment, 180° rotation, and three closing positions (closed, open, half-open). Suitable for use with ball valves, butterfly valves, threads, and dampers.

Material Extruded Aluminum alloy
Rotary Angle 0~90 degree
Structure rack and pinion rotary actuator
Working Pressure 2~8bar
Surface Treatment hard anodizing
Working Temperature Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F);

High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F);

Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F).
Connection NAMUR, ISO5211 and DIN3337
Application ball valve, butterfly valve, and rotary machine
Cup Color grey, black, sky blue, dark blue, red, orange

Pneumatic Actuator Dimension

Rack And Pinion Pneumatic Valve Actuator , Rotary Actuator 120 135 180 Degree

Product Application

AT series Pneumatic Actuator is made of dual pistons driven by racks and pinions. There are two models. One is Dual Acting model, and the other is Spring Return model, which can suit various flammable, corrosive, dusty, strong magnetic field, radiation, vibration corrosive environment indoor or outdoor.


Auto-control in the field of electric power, petrochemical, metallurgy, petroleum, gas, town, construction, drainage, chemical industry, oil refining, mining, power plant, metallurgy, architecture, medicine, food, gas, scientific research, etc.
