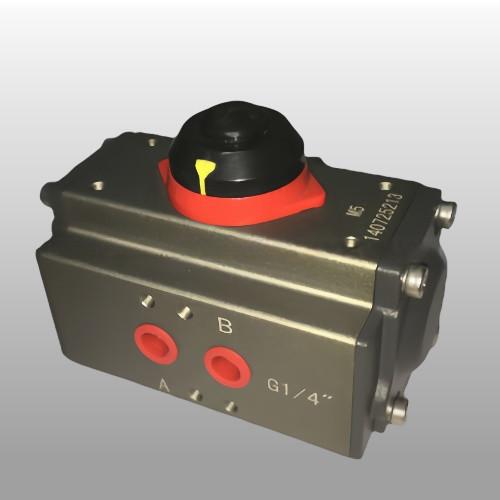

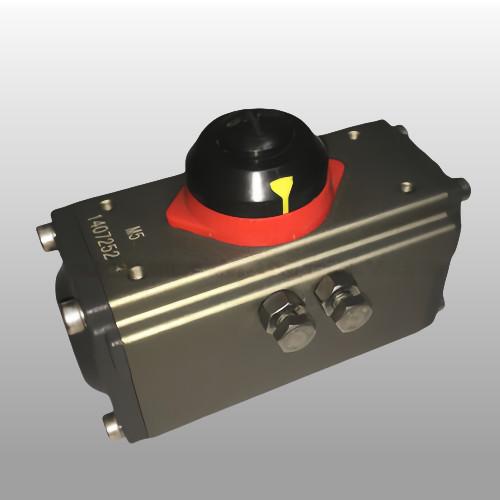

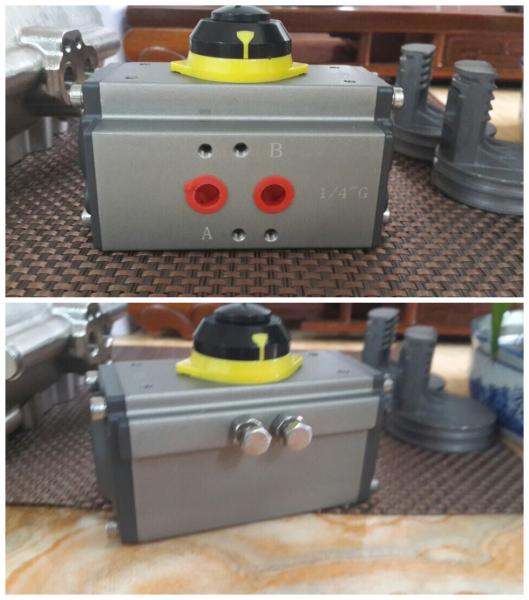

Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Specifications
Brand Name :
OEM
Model Number :
AT32-AT400
Certification :
CE,ATEX,ISO9001
Place of Origin :
China
MOQ :
1pcs
Price :
10-2000
Payment Terms :
T/T
Supply Ability :
1000pcs per day
Delivery Time :
3-7 days
Packaging Details :
Foam+Carton Box+Wooden Case
Type :
Double action spring return
Material :
Aluminum Alloy
Structure :
Rack & Pinion
Application :
Automatic control valve
Power :
Pneumatic
Temperature :
Normal Temperature,Low Temperature,High Temperature
Media :
hydraulic oil or water
Color :
red.blue,gray,according to customer's requirements,customized
Size :
32mm to 400mm
Description
Double Action 90 Degree Pneumatic Actuator Quarter-Turn Actuator AT040
Product Specifications
90° Turn Pneumatic Actuator For Valves Double Action DA Silver Body Pneumatic Actuator
AttributeValue
TypeDouble action spring return
MaterialAluminum Alloy
StructureRack & Pinion
ApplicationAutomatic control valve
PowerPneumatic
TemperatureNormal Temperature, Low Temperature, High Temperature
MediaHydraulic oil or water
ColorRed, blue, gray, or customized per customer requirements
Size32mm to 400mm
Key Features:
  • Material: Extruded Aluminum alloy
  • Rotary Angle: 0~90 degree ±5°
  • Structure: Rack and pinion rotary actuator
  • Working Pressure: 2~8bar
  • Surface Treatment: Hard anodizing
  • Working Temperature Ranges:
    • Normal Temperature: -20ºC(-4°F) ~ 80ºC (+176°F)
    • High Temperature: -15ºC(+5°F) ~ 150ºC (+302°F)
    • Low Temperature: -40ºC(-104°F) ~ 80ºC (+176°F)
  • Connection: NAMUR, ISO5211 and DIN3337
  • Application: ball valve, butterfly valve, and rotary machine
  • Endcap Color options: grey, black, sky blue, dark blue, red, orange
AT Series Pneumatic Actuator Construction
  • Indicator: Position indicator with NAMUR for easy mounting of accessories
  • Pinion: High-precision nickel alloy steel, compliant with ISO5211, DIN3337, NAMUR standards
  • Actuator Body: Extruded aluminum alloy ASTM6005 with various surface treatment options
  • End Caps: Die-casting aluminum with powder polyester paint or other treatments
  • Pistons: Twin rack pistons with symmetric mounting and reversible rotation
  • Travel Adjustment: External stop adjustment bolts for precise 5° adjustment
  • Springs: Preloaded coating springs for corrosion resistance and customizable torque
  • Bearings & Guides: Low-friction, long-life compound material
  • O-rings: NBR rubber for standard temperatures, viton/silicone for extreme conditions
Pneumatic Actuator Dimensions
ModelABCDH × IGNJKLMAir connection
ATO3211045452050 ×25129Æ36 M5 ×7.5 G1/8"
AT04012260652080 ×301411Æ50Æ36M6 ×10M5 ×7.5NAMUR G1/4"
AT05214772722080 ×301411Æ50Æ36M6 ×10M5 ×7.5NAMUR G1/4"
AT06317288832080 ×301814Æ70Æ50M8 ×13M6 ×10NAMUR G1/4"
AT075184100952080 ×302014Æ70Æ50M8 ×13M6 ×10NAMUR G1/4"
AT0832041091032080 ×302117Æ70Æ50M8 ×13M6 ×10NAMUR G1/4"
AT0922621171092080 ×302217Æ70Æ50M8 ×13M6 ×10NAMUR G1/4"
AT1052681331212080 ×302622Æ102Æ70M10 ×16M8 ×13NAMUR G1/4"
AT1253011551432080 ×302722Æ102Æ70M10 ×16M8 ×13NAMUR G1/4"
AT1403941731522080 ×303227Æ125Æ102M12 ×20M10 ×16NAMUR G1/4"
AT1604581981742080 ×303427Æ125Æ102M12 ×20M10 ×16NAMUR G1/4"
AT19052823220630130 ×304036Æ140 M16 ×24 NAMUR G1/4"
AT21053225722630130 ×304036Æ140 M16 ×24 NAMUR G1/4"
AT24066029126030130 ×305046Æ165 M20 ×25 NAMUR G1/4"
AT27074033029430130 ×305046Æ165 M20 ×25 NAMUR G1/2"
AT30079835433630130 ×306046Æ165 M20 ×25 NAMUR G1/2"
AT35088040838530130 ×306046Æ165 M20 ×25 NAMUR G1/2"
AT40095046451630130 ×306055Æ254Æ1658-M16 ×25M20 ×25NAMUR G1/2"
