Specifications
Place of Origin :
China
Brand Name :
MACHTECH
Payment Terms :
,T/T,L/C
Delivery Time :
90-120days
Description
Turnkey Solution for Modified Plastics

Our integrated system combines high-efficiency pneumatic conveying with ultra-precise batching (±0.1% accuracy) for modified PP, PA, PC, and other engineering plastics. Designed for glass/carbon fiber reinforced, flame-retardant, and conductive compounds, this solution increases productivity by up to 40% while ensuring batch-to-batch consistency.

System Components & Benefits
1. Smart Pneumatic Conveying
  • ✔ Dual-Mode Technology:
    Dilute phase: 20 T/H throughput for bulk materials
    Dense phase: <0.1% fiber breakage for sensitive additives
  • ✔ Material-Specific Features:
    Anti-static lines for carbon black
    Wear-resistant pipes for mineral fillers
    Temperature control for hygroscopic resins
2. Precision Batching System
  • ✔ Multi-Scale Weighing:
    Macro-dosing (50-500kg): ±0.2%
    Micro-dosing (1g-5kg): ±0.5%
  • ✔ Advanced Material Handling:
    Vibratory feeders for fibrous additives
    Liquid injection systems for modifiers
    Dedicated paths for cross-contamination prevention
Technical Specifications
Parameter Performance
Total Capacity 2-30 T/H
Max Conveying Distance 200m (H)/50m (V)
Batch Accuracy ±0.1-0.5%

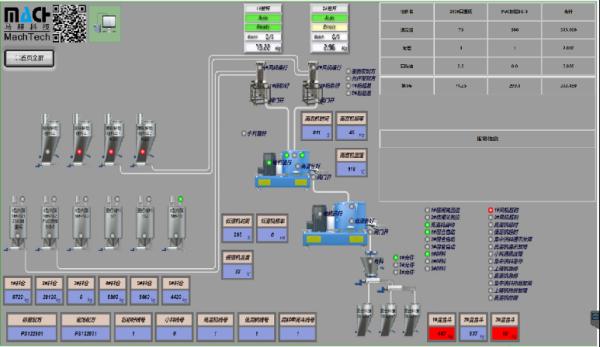

Control System Rockwell PLC with IoT gateway
Key Safety/Certifications:
  • ATEX Zone 22 (optional)
  • OSHA-compliant dust control
  • FDA-grade models available
