75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems
Specifications
Rated Voltage :
400V AC
Rotor Speed :
300rpm
Phase :
3 Phase
Cooling Method :
Air Cooled
Payment Terms :
T/T,L/C,Western Union
Packaging Details :
Export plywood case with shock-proof foam and waterproof wrapping, suitable for sea freight
Working Mode :
Grid Tie / Off Grid
Rated Power :
75kW
Delivery Time :
15-25 working days after deposit
Insulation Class :
Class H (180C)
Certification :
CE, ISO 9001:2015
Brand Name :
ECER
Model Number :
PMG-75HY
MOQ :
1 Set
Price :
USD 7,500-11,000 / Set
Number of Poles :
20
Frequency :
50Hz
Rated Speed :
300rpm
Place of Origin :
Fujian, China
Protection Class :
IP54
Supply Ability :
100 Sets per Month
Efficiency :
96%
Description
75kW Grid Tie Off Grid Permanent Magnet Generator 400V Hybrid Renewable PMG
75kW Grid Tie Off Grid Permanent Magnet Generator

This 75kW permanent magnet generator supports both grid tie and off grid operation, giving system integrators maximum flexibility for hybrid renewable projects. In grid tie mode it feeds 400V 50Hz power through a compatible inverter; in off grid mode it charges battery banks with stable rectified output.

As a dual mode permanent magnetic generator, it is the core power unit of wind-solar hybrid systems, diesel replacement plants and island microgrids. The 20 pole rotor produces rated power at 300rpm with 96% efficiency.

Key Features
  • Dual working mode for grid tie and off grid systems
  • Compatible with mainstream wind and hybrid inverters
  • 20 pole low speed rotor at 300rpm
  • 96% efficiency across the operating range
  • Stable output for battery charging applications
  • Air cooled structure, low maintenance requirement

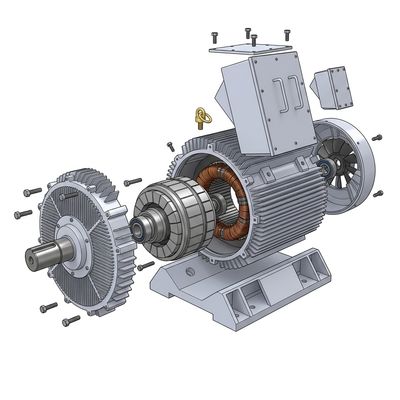

Structure Diagram

75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems

Technical Specifications
Rated Power 75kW
Rated Speed 300rpm
Rated Voltage 400V AC
Frequency 50Hz
Phase 3 Phase
Number of Poles 20
Efficiency 96%
Working Mode Grid Tie / Off Grid
Insulation Class Class H (180C)
Protection Class IP54
Cooling Method Air Cooled
Application Hybrid Wind Solar

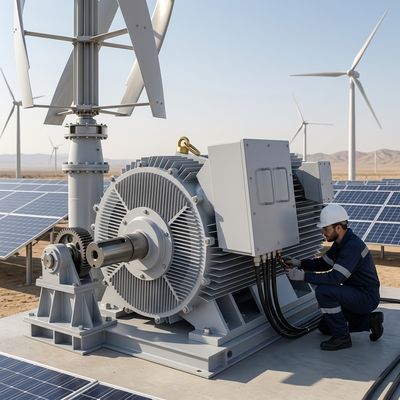

Application Scene

75kW 400V Grid Tie Off Grid Permanent Magnet Generator for Hybrid Renewable Energy Systems

Typical Applications
  • Wind solar hybrid power plants
  • Island microgrids
  • Diesel replacement systems
  • Commercial off grid energy projects
We supply matched rectifier and inverter recommendations for your chosen working mode. Contact us for the system design.
