Specifications
Payment Terms :
T/T,L/C,Western Union
Magnet Type :
NdFeB Neodymium
Power Density :
High
Supply Ability :
100 Sets per Month
Phase :
3 Phase
Protection Class :
IP55
Place of Origin :
Fujian, China
MOQ :
1 Set
Packaging Details :
Export plywood case with shock-proof foam and waterproof wrapping, suitable for sea freight
Number of Poles :
48
Rated Power :
50kW
Delivery Time :
15-25 working days after deposit
Brand Name :
ECER
Insulation Class :
Class H (180C)
Rated Voltage :
400V AC
Frequency :
50Hz
Certification :
CE, TUV, ISO 9001:2015
Rated Speed :
200rpm
Model Number :
PMG-50CE
Cooling Method :
Natural Cooled
Price :
USD 5,500-8,000 / Set
Efficiency :
95%
Description
CE Certified 50kW Low Speed Permanent Magnet Generator 400V Wind Turbine PMG
CE Certified 50kW Low Speed Permanent Magnet Generator

This CE certified 50kW low speed permanent magnet generator is a direct drive PMG developed for small and medium wind turbines. The multi-pole rotor enables power generation at only 200rpm without a gearbox, reducing mechanical loss and maintenance. As a permanent magnetic generator with full TUV certification, it meets the compliance requirements of European and American renewable energy projects.

The generator adopts NdFeB neodymium magnets, class H insulation and IP55 protection, delivering 95% efficiency at rated load. The 400V 50Hz three phase output connects easily to standard wind inverters and grid tie systems.

Key Features
  • CE and TUV certified for export to EU and North America
  • Direct drive multi-pole design, gearbox free at 200rpm low speed
  • NdFeB permanent magnet rotor with high power density
  • Class H insulation and IP55 protection for outdoor installation
  • Natural cooled structure, maintenance free operation
  • Smooth 400V 50Hz three phase output compatible with grid tie inverter

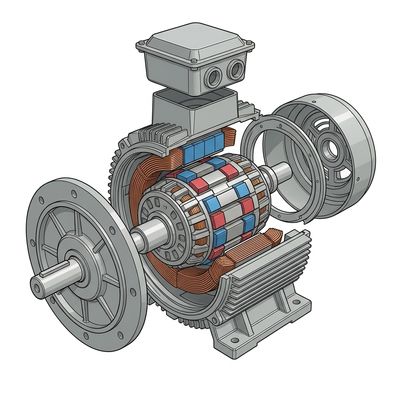

Structure Diagram

CE Certified 50kW Low Speed Permanent Magnet Generator 400V for Wind Turbines

Technical Specifications
Rated Power 50kW
Rated Speed 200rpm
Rated Voltage 400V AC
Frequency 50Hz
Phase 3 Phase
Number of Poles 48
Efficiency 95%
Insulation Class Class H (180°C)
Protection Class IP55
Cooling Method Natural Cooled
Magnet Type NdFeB Neodymium
Application Wind Turbine

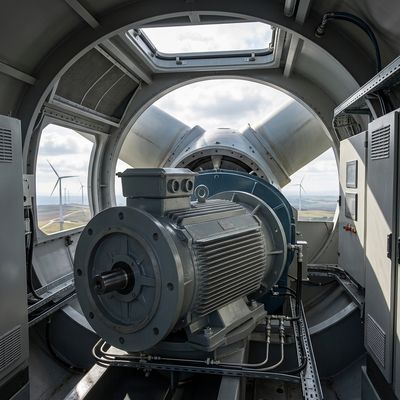

Application Scene

CE Certified 50kW Low Speed Permanent Magnet Generator 400V for Wind Turbines

Typical Applications

Horizontal and vertical axis wind turbines, distributed wind power stations, hybrid renewable energy systems.

All generators are factory tested with full load before delivery. Contact our engineers for a complete technical drawing and quotation.
