IE4 Efficiency 3 Phase Power Permanent Magnet Synchronous Motor With Rare Earth NdFeB For Industrial
IE4 Efficiency 3 Phase Power Permanent Magnet Synchronous Motor With Rare Earth NdFeB For Industrial
Specifications
Brand Name :
ENNENG
Model Number :
PMM
Certification :
CE,UL
Place of Origin :
China
MOQ :
1 set
Price :
USD 500-5000/set
Payment Terms :
L/C,T/T
Supply Ability :
20000 sets/year
Delivery Time :
15-120 days
Packaging Details :
seaworthy packing
Name :
Industry Use Permanent Magnet Synchronous Electric Motor Manufacturer
Current :
AC
Material :
Rare Earth NdFeB
Installation :
IMB3 IMB5 IMB35
Phase :
3 phase
Poles :
2,4,6,8,10
Power Range :
5.5-3000kw
Voltage :
380v, 660v, 1140v, 3300v, 6kv, 10kv
Frame Size :
From H112 to H450
Control Mode :
Invertor Open Loop Vector Control
Description
Industry Use Permanent Magnet Synchronous Electric Motor
The TYC series ultra-high-efficiency rare earth permanent magnet synchronous motor that exceeds the IE4 efficiency standard is the latest special motor for compressors developed by our company. It adopts high-performance rare earth permanent magnet materials and frequency conversion technology, operates without encoder vector control, and has a magnetic steel structure with advantages of high efficiency, reliable operation, and good installation interchangeability.
Product Parameters
ModelRated Power (KW)Rated Voltage (V)Rated Current (A)Rated Speed (r/min)Efficiency (%)Power FactorRated Frequency (Hz)Service Factor
TYC7.5-3000-Z132S67.538012.8300093.00.961501.2
TYC11-3000-Z132S61138018.5300094.00.961501.2
TYC15-3000-Z132S61538025.2300094.30.961501.2
TYC18.5-3000-Z160M618.538031.0300094.40.961501.2
TYC22-3000-Z160M62238036.8300094.60.961501.2
TYC30-3000-Z160L63038050.0300095.00.961501.2
TYC37-3000-Z160L63738061.3300095.50.961501.2
TYC45-3000-Z180M84538074.5300095.60.962001.2
TYC55-3000-Z180M85538090.9300095.80.962001.2
TYC75-3000-Z225M875380123300096.20.962001.2
TYC90-3000-Z225M890380148300096.50.962001.2
TYC110-3000-Z225L8110380180300096.80.962001.2
TYC132-3000-Z225L8132380215300097.00.962001.2
TYC160-3000-Z225L8160380261300097.00.962001.2
TYC185-3000-Z250M8185380301300097.00.962001.2
TYC-200-3000-Z250M8200380326300097.00.962001.2
TYC-200-3000-Z250L8220380359300097.00.962001.2
TYC-200-3000-Z250L8250380408300097.00.962001.2
Architectural Features
Frame Size132160180200225250M/L280M/L
Mechanical Properties
Frame/End shield/Terminal boxes MaterialCast Iron
MountingB3/B35
IP GradeIP23
Cooling MethodIC01(ODP)
EarthInside the wiring cover and the machine base
Bearing Dust cover/clearanceZZ/C3/C3/C3/C3/C3/C3/C3
Bearing fixDE fix, NDE with Wave spring washer
DE fix bearings 3000rpm630863096312631263136314/63186314/6318
DE fix bearings 1500rpm630863096312631263136318/63186318/6318
NDE fix bearings 3000rpm630863096312631263136314/63166314/6316
NDE fix bearings 1500rpm630863096312631263136316/63166316/6316
Lubrication MaterialESSO UNIREX N2
Oil pipe/End shield oiling device pipe plug
Shaft MaterialSteel45#
B type vibration limit (mm/s)1.62.2
Balance1/2 key G2.5 grade
Nameplate MaterialAluminum alloy
Electrical Performance
Voltage380/400V(or440/460V) three terminals
Winding MaterialHigh purity copper
Dipping methodVPI and drying
Insulation grade155(F)
Service Factor1.0/1.2/1.3
Stator and rotor laminationSilicon steel
Permanent magnetNdFeB
Detailed Pictures

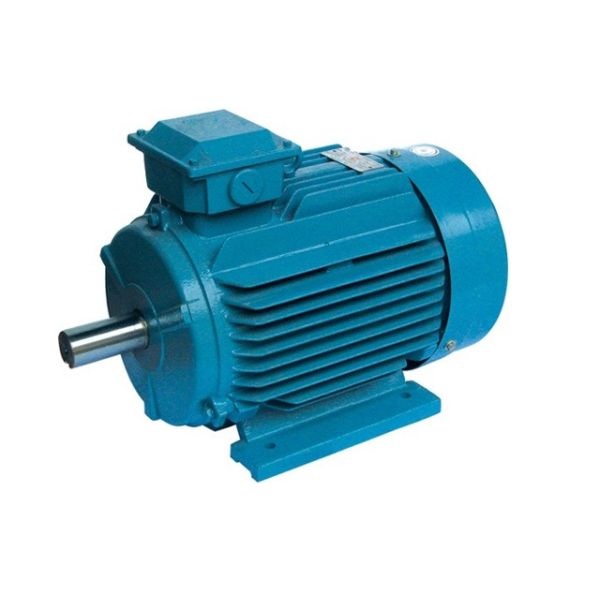

IE4 Efficiency 3 Phase Power Permanent Magnet Synchronous Motor With Rare Earth NdFeB For Industrial
Installation Outline Drawing
IE4 Efficiency 3 Phase Power Permanent Magnet Synchronous Motor With Rare Earth NdFeB For Industrial
Operating Principle
A permanent magnet motor is a device that utilizes permanent magnets to generate a magnetic field for motor rotation. It consists of a stator and a rotor. A coil on the stator is energized with electric current to produce a rotating magnetic field. The permanent magnets on the rotor, in turn, are attracted to the rotating magnetic field and follow it. By constantly changing the direction of the current in the stator coil, a continuous rotary motion can be produced in the rotor. Permanent magnet motors are characterized by high efficiency, high power density, and fast response.
Key Features
  • Simple and reliable structure: no encoder vector control, can realize unlimited start and stop
  • High protection level: IP55 protection level avoids the disadvantages of low protection level motor permanent magnets absorbing iron dust and blocking the air gap
  • Strong anti-demagnetization ability: It adopts an intercalated magnetic steel structure and designs a higher maximum demagnetization working point
  • Good installation interchangeability: the shape and installation dimensions of the motor are consistent with those of ordinary asynchronous motors, and the design of the host does not need to be modified, which is suitable for both new machines and old machines for energy-saving renovation
  • Ultra-high efficiency operation: ultra-high efficiency, the efficiency is higher than the standard value of IE4 efficiency (the stray loss is recommended according to the 112B method)
