GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
Specifications
Brand Name :
Tianniu
Model Number :
GFC
Certification :
ISO 9001
Place of Origin :
China
MOQ :
1 pcs
Price :
Negotiable
Payment Terms :
T/T, Western Union, MoneyGram, L/C, D/A, D/P
Supply Ability :
10000 per month
Delivery Time :
3-5 working days
Packaging Details :
Cartons by sea shipping by airplane
Model :
GFC JAW COUPLING
Warranty :
12 months
Bore size :
3-55mm
Length :
14-95mm
Touque :
5-250
Description

GFC Shaft Coupling Flexible Coupling

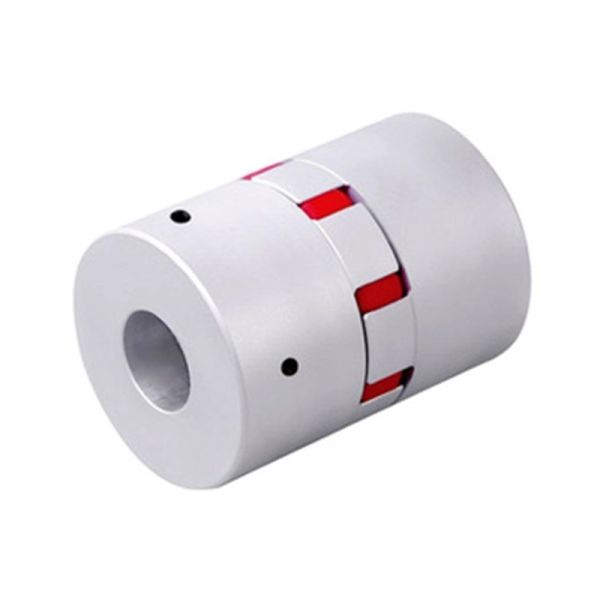

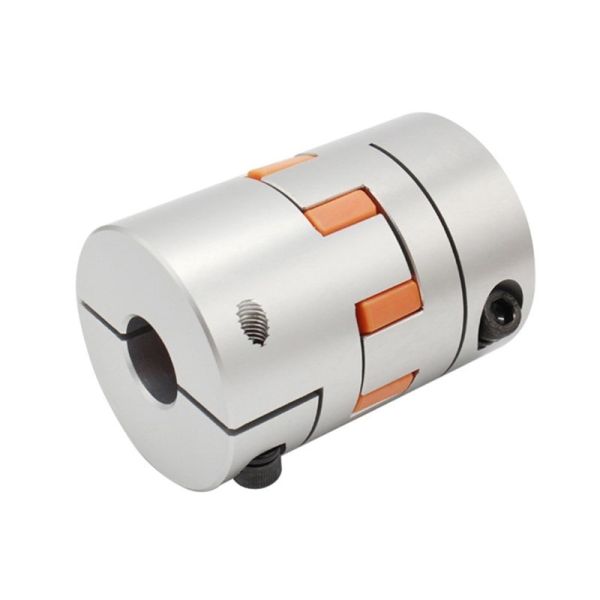

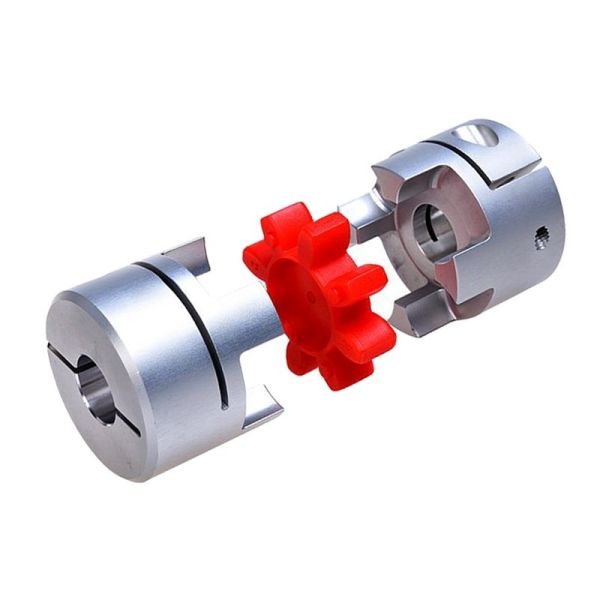

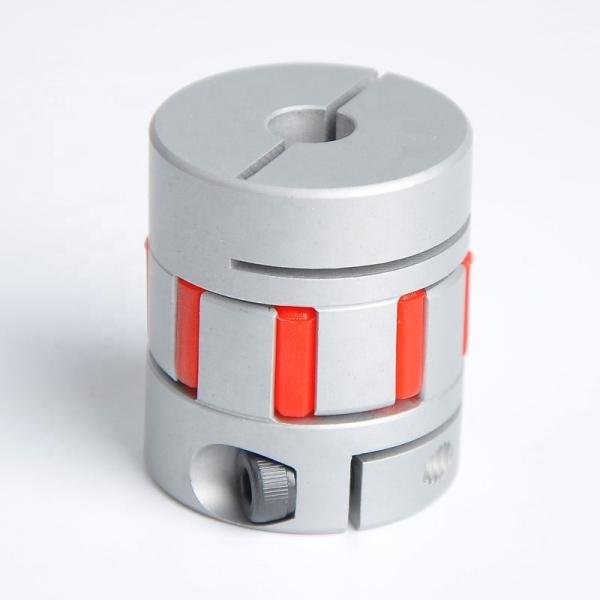

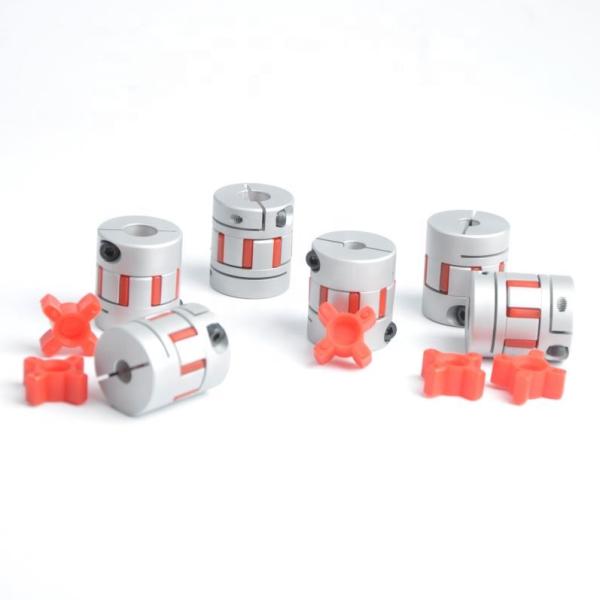

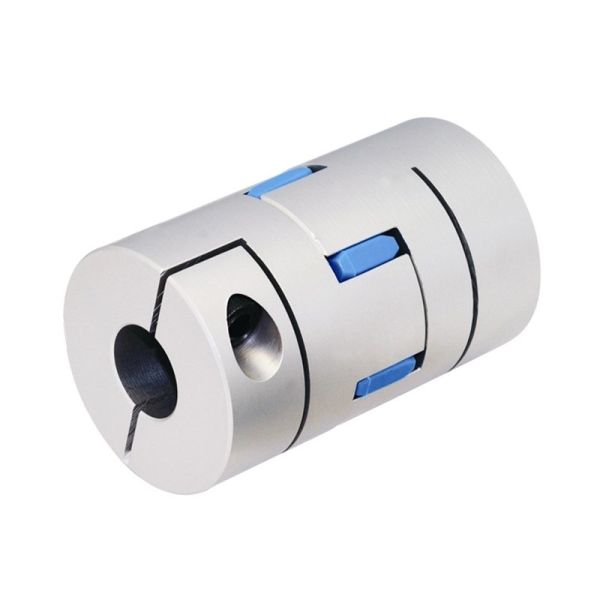

GFC14x22 Flexible Jaw Shaft Coupling

Products Features

>High torque rigidity, can accurately control the rotation of the shaft, can carry out high-precision control
>Designed for servo and stepping motor
>No gap between the shaft and sleeve connection, general for positive and negative rotation
>Low inertia, suitable for high speed operation
>The diaphragm is made of spring steel with excellent fatigue resistance

Products Parameters

GFC14x22 Flexible Jaw Shaft Coupling
GFC14x22 Flexible Jaw Shaft Coupling
model parameter
common bore diameter d1,d2
ΦD
L
LF
LP
F
M
tightening screw torque
(N.M)
GFC-14X22
3,4,5,6,6.35
14
22
14.3
6.6
5.0
M2.5
1.0
GFC-20x25
3,4,5,6,6.35,7,8,9,9.525,10
20
25
16.7
8.6
5.9
M3
1.5
GFC-20X30
3,4,5,6,6.35,7,8,9,9.525,10
20
30
19.25
8.6
5.9
M3
1.5
GFC-25X30
4,5,6,6.35,7,8,9,9.525,10,11,12
25
30
20.82
11.6
8.5
M4
2.5
GFC-25X34
4,5,6,6.35,7,8,9,9.525,10,11,12
25
34
22.82
11.6
8.5
M4
2.5
GFC-30x35
5,6,6.35,7,8,9,10,11,12,12.7,14,15,16
30
35
23
11.5
10
M4
2.5
GFC-30X40
5,6,6.35,7,8,9,10,11,12,12.7,14,15,16
30
40
25
11.5
10
M4
2.5
GFC-40X50
6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24
40
50
32.1
14.5
14
M5
7
GFC-40X55
6,8,9,10,11,12,12.7,14,15,16,17,18,19,20,22,24
40
55
34.5
14.5
14
M5
7
GFC-40X66
6,8,910,11,12,12.7,14,15,16,17,18,19,20,22,24
40
66
40
14.5
14
M5
7
GFC-55X49
10,11,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32
55
49
32
16.1
13.5
M6
12
GFC-55X78
8,10,12,12.7,14,15,16,17,18,19,20,22,24,25,28,30,32
55
78
46.4
16.1
19
M6
12
GFC-65X80
14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40
65
80
48.5
17.3
14
M8
20
GFC-65X90
14,15,16,17,18,19,20,22,24,25,28,30,32,35,38,40
65
90
53.5
17.3
22.5
M8
20
GFC-80X114
19,20,22,24,25,28,30,32,35,38,40,42,45
80
114
68
22.5
16
M8
20
GFC-95X126
19,20,22,24,25,28,30,32,35,38,40,42,45,50,55
95
126
74.5
24
18
M10
30
model parameter
Rated torque
(N.M)*
allowable eccentricity
(mm)*
allowable deflection angle
(°)*
allowable axial deviation
(mm)*
maximum speed
rpm
static torsional stiffness
(N.M/rad)
moment of inertia
(Kg.M2)
weight
(g)
GFC-14X22
5.0
0.1
1
±02
10000
50
1.0x10-6
10
GFC-20X25
5.0
0.1
1
±02
10000
50
1.0x10-6
15
GFC-20X30
5.0
0.1
1
^02
10000
53
1.1x10-6
19
GFC-25X30
10
0.1
1
10000
90
5.2X10-6
33
GFC-25X34
10
0.1
1
£)2
10000
90
5.2x10-6
42
GFC-30X35
12.5
0.1
1
±02
10000
123
6.2x10-6
50
GFC-30x40
12.5
0.1
1
102
10000
123
6.2x10-6
60
GFC-40X50
17
0.1
1
8000
1100
3.8x10-5
115
GFC-40X55
17
0.1
1
±02
8000
1100
3.8x10-5
127
GFC-40X66
17
0.1
1
7000
1140
3.9x10-5
154
GFC-55X49
45
0.1
1
±02
6500
2350
1.6x10-3
241
GFC-55X78
45
0.1
1
102
6000
2500
1.6x10-3
341
GFC-65X80
108
0.1
1
±02
5500
4500
3.8x10-3
433
GFC-65X90
108
0.1
1
±02
5500
4800
3.8x10-3
583
GFC-80X114
145
0.1
1
£)2
4500
5000
1.8x10-3
1650
GFC-95X126
250
0.1
1
±02
4000
5000
2.0x10-3
1000
