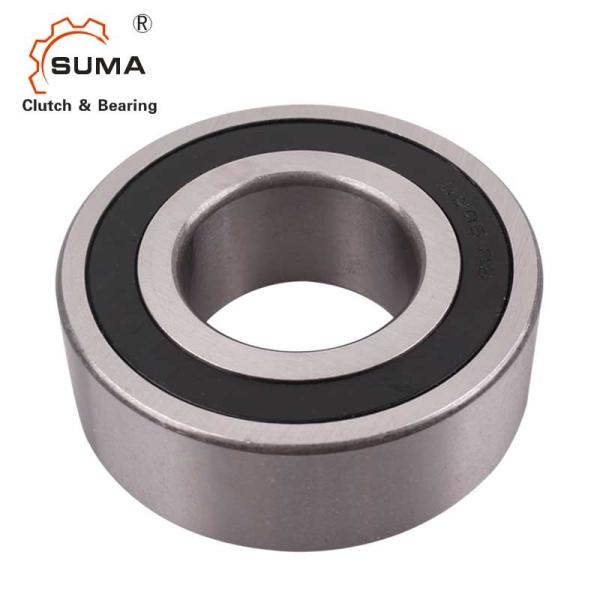

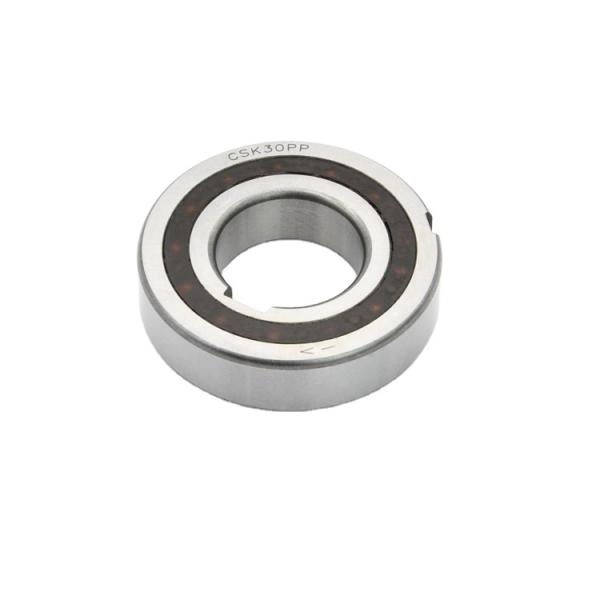

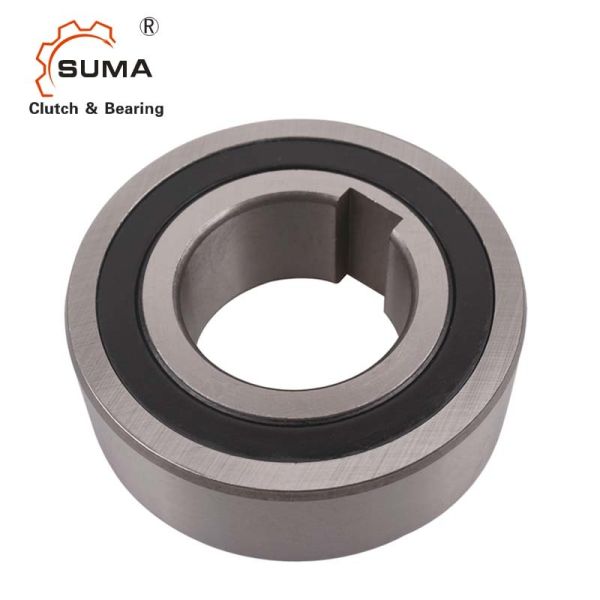

CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
CSK 25mm Inner Diameter 52mm Outer Diameter 5200r/min Overrunning Speed One Way Bearing Overrunning Clutch
Specifications
Model Number :
CSK25
Brand Name :
SUMA
Place of Origin :
Jiangsu, China
MOQ :
2
Price :
$1.80-2
Precision Rating :
P0
Seals Type :
sealed
Material :
GCr15
Weight :
0.14kgs
Outer Diameter :
52mm
Inner Diameter :
25mm
Overrunning Speed :
5200r/min
Thickness :
20mm
Torque Capacity :
85Nm
Dynamic Load :
10.7kN
Static Load :
5.46kN
Drag Torque :
2Ncm
Bearing Series :
6205
Keyway Quantity :
2
Keyway Depth :
2mm
Description

CSK Bearing Manufacturer ZZ 6205 PP One Way

Electric Motor Clutch

Product Description

CSK series are sprag type one way freewheel bearings.

CSK P has one keyway in the inner side.

CSKPP has two keyways on both inner and outer side.

CSK P 2RS , has one keyway and seals to protect from water resistance, and it is 5mm wider than CSKP and CSKPP.

Product name

 electric motor clutch

Model

CSK25PP2RS

Material

GCr15

Inner diameter

25mm

Outer diameter

52mm

Thickness

20mm

Torque capacity

85Nm

Weight

0.14kg

Package

Carton Box / Wooden box

Payment terms

TT. L/C, D/A,D/P,Western Union

Delivery time

2-4 days for the sample, 7 days for big order

Catalogue of electric motor clutch for your choice

Tips: All the CSK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

Type Size Bearing series Bearing loads Weight Drag torque
dynamic static
CSK..P d TKN1) nmax D L b t C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [mm] [mm] [kN] [kN] [kg] [Ncm]
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
CSK..PP 15 6202 17 8400 35 11 2 0.6 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 2 1 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 3 1.5 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 6 2 10.7 5.46 0.14 2
30 6206 138 4200 62 16 6 2 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 8 2.5 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 10 3 15.54 12.25 0.5 7
45 _ 218 1600 85 19 12 2.5 18.36 15.35 0.44 9.3
50 _ 230 1500 90 20 12 2.5 19.53 17.68 0.49
CSK..P-2RS 12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 – 17 8400 35 16 7.4 3.42 0.07 4
17 – 30 7350 40 17 7.9 3.8 0.09 5.6
20 – 50 6000 47 19 9.4 4.46 0.145 6
25 – 85 5200 52 20 10.7 5.46 0.175 6
30 – 138 4200 62 21 11.7 6.45 0.27 7.5
35 – 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10
Detailed Images

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Production flow

Certifications

Clients Visit

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
