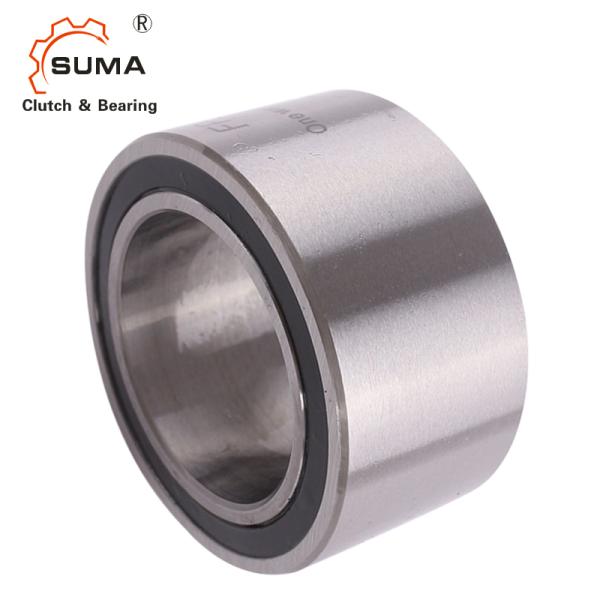

P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
P6 Precision One Way Bearing Freewheel Clutch Unit with 30mm Inner Diameter and 46mm Outer Diameter
Specifications
Model Number :
FPD442M FPD442Z
Brand Name :
SUMA
Place of Origin :
Jiangsu, China
MOQ :
10
Price :
$62-86
Precision Rating :
P6
Seals Type :
Sealed
Type :
sprag
Inner diameter :
30mm
Outer diameter :
46mm
Thickness :
34mm
Torque capacity :
208Nm
Material :
GCr15
Weight :
0.18kg
Operating temperature :
max. 100° C
Lubrication :
Operative lifetime oil lubrication
Installation tolerances :
Shaft h5; hub H6
Max speed :
1,500 rpm
Dynamic load :
10,247 N
Static load :
10,708 N
Description

Complete Freewheel Clutch Unit One Way Bearing Factory FPD442M FPD442Z

Product Description

Features of FPD Complete Freewheel Clutch Unit

Characteristics

Width:34 mm

Operating temperature:max. 100° C

Lubrication

Operative lifetime oil lubrication

Installation

Installation tolerances

Shaft h5; hub H6

Catalogue of FPD Complete Freewheel Clutch Unit for your choice

Model d D W Tnom nmax Cdyn. Cstat. Weight Item no.
[mm] [mm] [mm] [Nm] [rpm] [N] [N] [kg]
FPD 427 M 15 31 34 94 2,000 7,679 6,397 0.09 306516
FPD 427 Z 15 31 34 84 2,000 7,679 6,397 0.09 306517
FPD 432 M 20 36 34 133 1,800 8,104 7,241 0.12 306518
FPD 432 Z 20 36 34 121 1,800 8,104 7,241 0.12 306519
FPD 437 M 25 41 34 176 1,700 9,201 8,142 0.15 306520
FPD 437 Z 25 41 34 160 1,700 9,201 8,142 0.15 306521
FPD 442 M 30 46 34 223 1,500 10,247 10,708 0.18 300696
FPD 442 Z 30 46 34 208 1,500 10,247 10,708 0.18 300697
FPD 448 M 35 53 34 286 1,300 11,642 13,440 0.23 306524
FPD 448 Z 35 53 34 262 1,300 11,642 13,440 0.23 306525
FPD 453 M 40 58 34 343 1,200 11,417 13,577 0.26 300702
FPD 453 Z 40 58 34 314 1,200 11,417 13,577 0.26 300700
FPD 463 M 50 68 34 461 1,100 13,070 17,063 0.34 306534
FPD 463 Z 50 68 34 428 1,100 13,070 17,063 0.34 306535
FPD 473 M 60 78 34 588 1000 14128 19896 0.41 306536
FPD 473 Z 60 78 34 543 1000 14128 19896 0.41 306537
Detailed Images

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Certifications

Clients Visit

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
