CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque
Specifications
Model Number :
CK-A25622
Brand Name :
SUMA
Place of Origin :
Jiangsu, China
MOQ :
1
Price :
$12-18
Precision Rating :
P0
Seals Type :
open
Type :
SPRAG TYPE
Material :
GCr15
Torque Capacity :
145Nm
Inner Diameter :
25mm
Outer Diameter :
62mm
Thickness :
23mm
Weight :
0.35kg
Overrunning Speed :
1260 r/min (inner race), 350 r/min (outer race)
Bearing Model :
6306
Outer Race Dimensions :
62mm x 23mm
Inner Race Dimensions :
25mm x 24mm
Sprag Dimensions :
4x2.5mm (outer race), 4x1.8mm (inner race)
Nominal Torque :
145Nm
Description

CKA Bearing Manufacturer in China Stainless Steel Bearing

CK-A25622 (6305)

Product Description

Features of stainless steel bearing

CKA is a sprag type freewheel non-bearing supported . Bearings are required to support axial and radial loads, Units are delivered grease lubricated.

Product name

CKA bearing

Model

CK-A 2562

Material

GCr15

Inner diameter

25mm

Outer diameter

62mm

Thickness

23mm

Torque capacity

145Nm

Weight

0.35Kg

Package

Carton Box / Wooden box

Payment terms

TT. L/C, D/A,D/P,Western Union, Paypal

Delivery time

3-5 Days

Catalogue of stainless steel bearing for your choice

CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque

Model

Nominal

Torque

Overrunning Limiting

Speed (r/min)

 Dimension [mm] Bearing Weight
Outer race Inner race
[N.m]

Inner

race

Outer

race

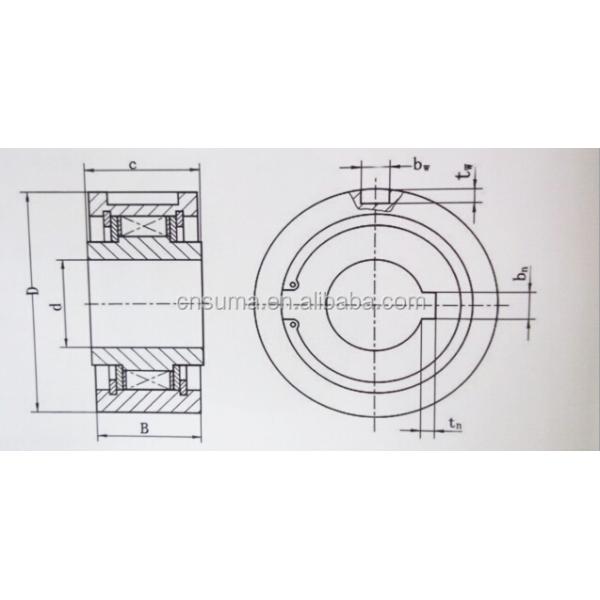

 D[h7] B bwxtw d[h7] C bnxtn [kg]
CK-A1542 54 1750 500 42 23 3x1.8 15 24 3x1.4 6302 0.17
CK-A1747 75 1575 400 47 23 3x1.8 17 24 3x1.4 6304 0.21
CK-A2052 95 1400 400 52 23 3x1.8 20 24 3x1.4 6305 0.25
CK-A2562 145 1260 350 62 23 4x2.5 25 24 4x1.8 6306 0.35
CK-A3072 208 1050 300 72 23 5x3.0 30 24 5x2.3 6307 0.47
CK-A3580 340 815 200 80 28 8x4.0 35 30 6x2.8 6308 0.69
CK-A4090 462 700 200 90 28 8x4.0 40 30 6x2.8 6309 0.87
CK-A45100 783 560 200 100 28 8x4.0 45 30 6x2.8 6310 1.07
CK-A50110 850 525 180 110 28 10x5.0 50 30 8x3.3 6311 1.59
CK-A60130 1050 490 180 130 34 10x5.0 60 36 8x3.3 6312 2.16
CK-A65140 1224 490 180 140 34 10x5.0 65 36 10x3.3 6313 2.49
CK-A70150 1850 455 150 150 40 10x5.0 70 42 10x3.3 6314 3.36
CK-A75160 2140 455 150 160 40 12x5.0 75 42 12x3.3 6315 3.81
CK-A80170 2450 420 150 170 40 12x5.0 80 42 12x3.3 6316 4.29
CK-A1250 31.5 1750 400 50 22 3x1.8 12 24 3x1.4 0.24
CK-A1855 50 1575 350 55 22 4x2.5 18 24 4x1.8 0.28
CK-A2060 63 1600 350 60 22 6x3.5 20 24 6x2.8 0.33
CK-A2563 100 1260 350 63 24 6x3.5 25 26 6x2.8 0.37
CK-A2563T 140 1260 350 63 30 6x3.5 25 32 8x3.3 0.68
CK-A2870 180 1050 300 70 30 8x4.0 28 32 8x3.3 0.6
CK-A3080T 340 875 200 80 30 8x4.0 30 32 8x3.3 0.75
CK-A3585 400 815 200 85 30 8x4.0 35 32 8x3.3 1
CK-A35100 780 875 200 100 32 10x5.0 35 34 10x3.3 1.34
CK-A35140 1000 490 180 140 35 8x4.0 35 35 10x3.5 3.28
CK-A40100 780 560 200 100 34 10x5.0 40 34 10x3.3 1.2
CK-A40110 850 700 180 110 32 10x5.0 40 34 10x3.3 1.19
CK-A50125 1000 490 180 125 36 14x5.5 50 35 14x3.8 2.21
CK-A50130 1050 560 180 130 36 14x5.5 50 38 14x3.8 3.02
CK-A55160 2000 455 150 160 52 16x6.0 55 55 16x4.3 6.96
CK-A58130 1050 490 180 130 36 14x5.5 58 38 14x3.8 2.6
CK-A60180 2000 420 140 180 52 18x6.0 60 52 18x4.4 7.4

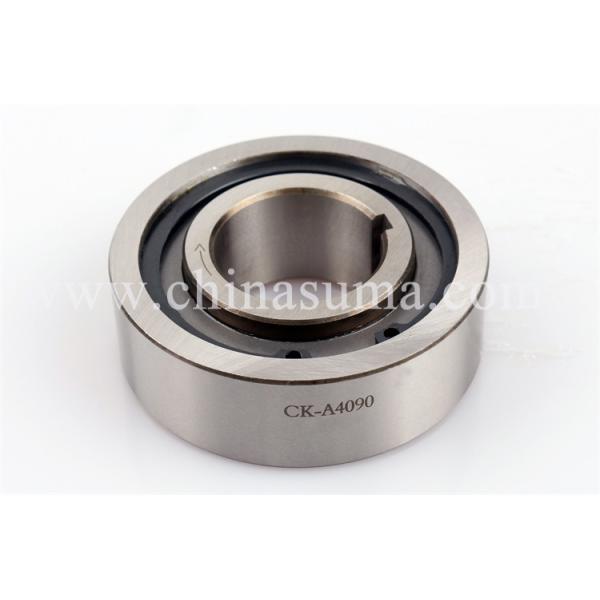

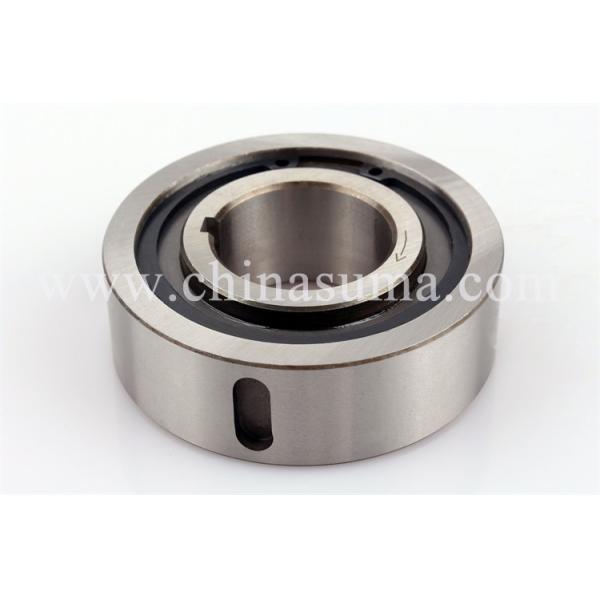

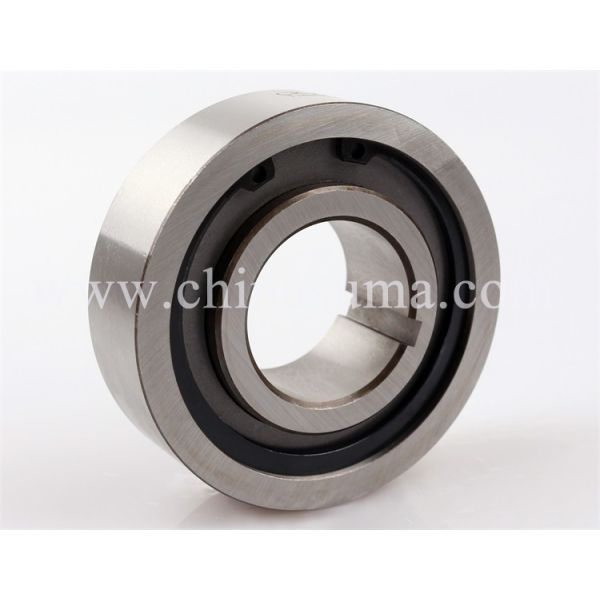

Detailed Images

CKA One Way Bearing 25mm ID 62mm OD 145Nm TorqueCKA One Way Bearing 25mm ID 62mm OD 145Nm TorqueCKA One Way Bearing 25mm ID 62mm OD 145Nm Torque

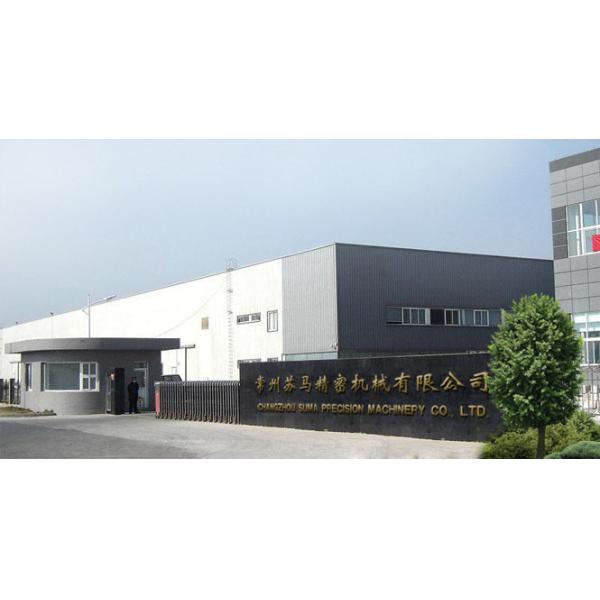

Company Information

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque

We are following "Best Quality, Best Price, Fast Delivery, Best Serves" to make all of our old and new customers satisfied.

Clients Visit

CKA One Way Bearing 25mm ID 62mm OD 145Nm Torque

After-Sales Service

Pre-sale service:

We will delivery the goods in 10 days after your order is confirmed.

After sale service:

Our factory provide technical assistance to support every doubt during usage and maintenance.

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
