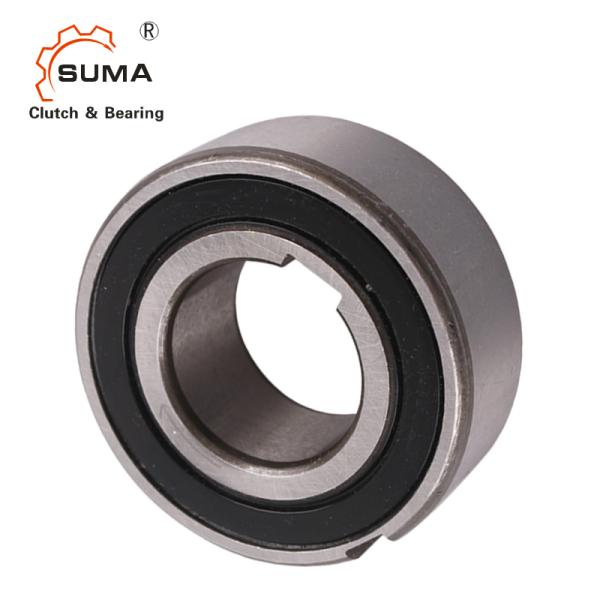

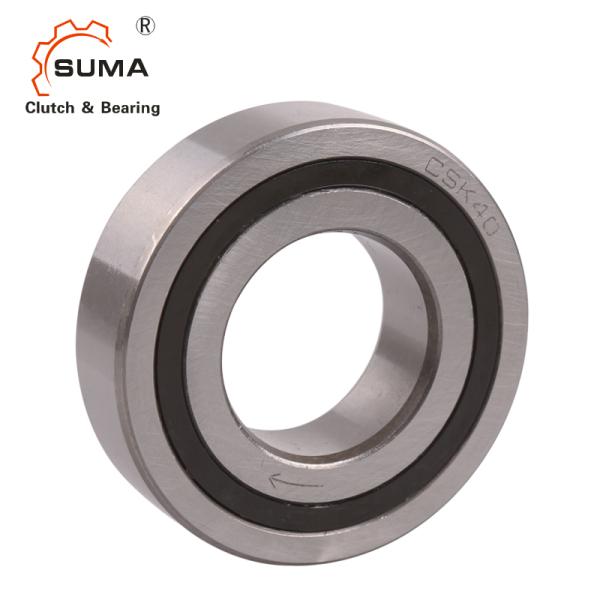

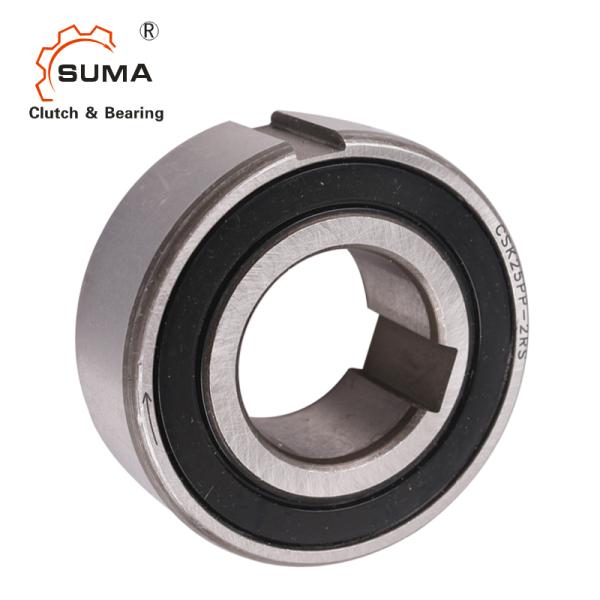

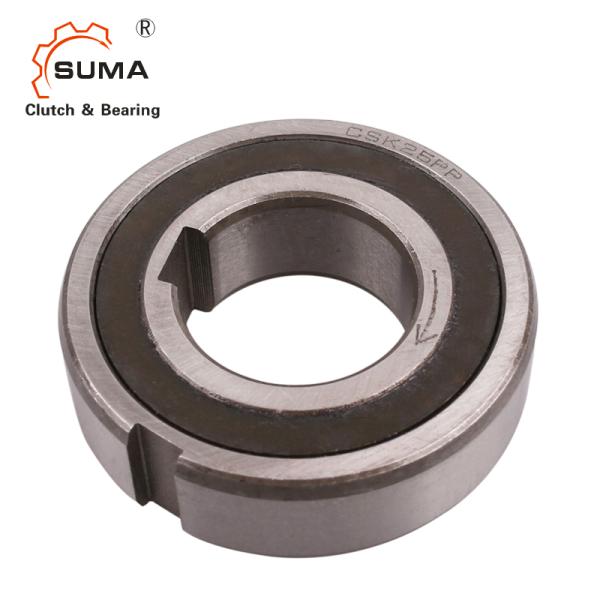

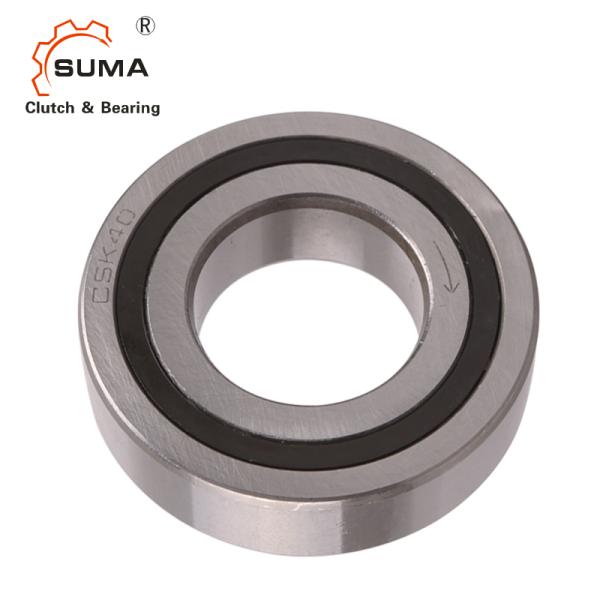

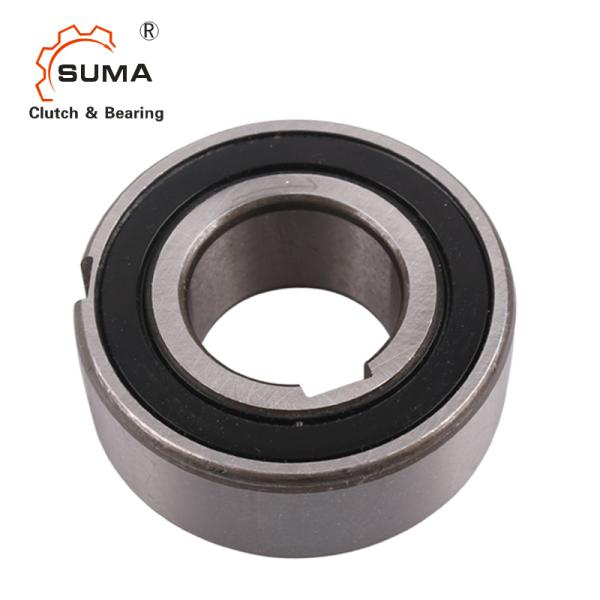

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch
Specifications
Model Number :
CSK25
Brand Name :
SUMA
Place of Origin :
Jiangsu, China
MOQ :
10
Price :
$1.80-2
Precision Rating :
P0
Seals Type :
SEALED
Type :
SPRAG
Size :
25*52*15mm
Torque :
85Nm
Weight :
0.14KG
Material :
GCr15
Inner diameter :
25mm
Outer diameter :
52mm
Overrunning speed :
5200r/min
Torque capacity :
85Nm
Dynamic load :
10.7kN
Static load :
5.46kN
Drag torque :
2Ncm
Bearing series :
6205
Description

CSK25 CSK6205 One Way Sprag Type Bearing Washing Machine clutch

Product Description

Features of csk washing machine clutch: One way bearing CSK12 is a sparg type freewheel integrated into a 62series ball bearing( except size 8 and 40).

Supply size ranges: from CSK 8- 40m, CSK... 2RS 8-40mm various sizes for your demands.

Packing details: bearing supported, delivered grease lubricated and protected against dust of more than 0.3mm.

Product name

csk washing machine clutch

Model

CSK25

Material

GCr15

Inner diameter

25mm

Outer diameter

52mm

Overrunning speed

5200r/min

Torque capacity

85Nm

Weight

0.12kg

Package

Tube / Carton Box / Wooden box

Payment terms

TT. L/C, D/A,D/P,Western Union

Delivery time

2-4 days for the sample, 7 days for big order

Catalogue of csk washing machine clutch for your choice

Tips: All the CSK versions are equippede with " formchromed" sprags. This process increases several times the overrunning life time.

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch

Type Size Bearing series Bearing loads Weight

Drag

torque
dynamic static
CSK(KK) d TKN1) N max D L C C0 TR
[mm] [Nm] [min-1] [mm] [mm] [kN] [kN] [kg] [Ncm]
8* – 2.5 15000 22 9 3.28 0.86 0.015 0.5
12 6201 9.3 10000 32 10 6.1 2.77 0.04 0.7
15 6202 17 8400 35 11 7.4 3.42 0.06 0.9
17 6203 30 7350 40 12 7.9 3.8 0.07 1.1
20 6204 50 6000 47 14 9.4 4.46 0.11 1.3
25 6205 85 5200 52 15 10.7 5.46 0.14 2
30 6206 138 4200 62 16 11.7 6.45 0.21 4.4
35 6207 175 3600 72 17 12.6 7.28 0.3 5.8
40 – 325 3000 80 22 15.54 12.25 0.5 7
CSK..2RS 8** 2.5 15000 22 9 3.28 0.86 0.015 0.8
12 – 9.3 10000 32 14 6.1 2.77 0.05 3
15 17 8400 35 16 7.4 3.42 0.07 4
17 30 7350 40 17 7.9 3.8 0.09 5.6
20 50 6000 47 19 9.4 4.46 0.145 6
25 85 5200 52 20 10.7 5.46 0.175 6
30 138 4200 62 21 11.7 6.45 0.27 7.5
35 175 3600 72 22 12.6 7.28 0.4 8.2
40 – 325 3000 80 27 15.54 12.25 0.6 10

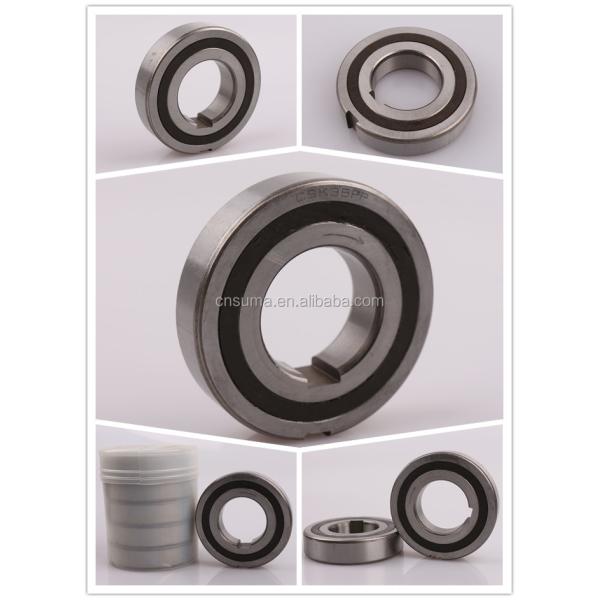

Detailed Images

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine ClutchCSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine ClutchCSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch



Production flow

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch

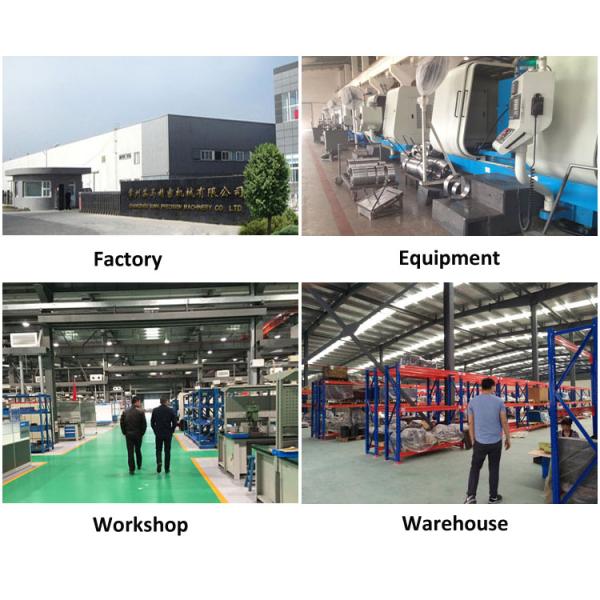

Company Information

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch

Changzhou Suma Precision Machinery Co., Ltd(Changzhou Tianniu Clutch Factory)is a manufacturer specialized in Producing Various cam clutch, one way bearing, one way clutch, backstop clutch, overrunning clutch and other bearings with high technology.

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch

Certifications

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch

Clients Visit

CSK25 One Way Sprag Bearing 25x52x15mm 85Nm Washing Machine Clutch

FAQ

Q: How do you pack the goods?

  • Small Items:

Each in small white box or Roll Pack or Tube pack - in 19x18x9CM carton box - 29*28*19CM carton box - Wooden box / Wooden pallet

  • Medium Items: 29*28*19cm carton box + Wooden box /Wooden pallet
  • Heavy Items: Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
