Specifications
Model Number :
DC3175(3C)-N, DC3175 ( 3C )
Brand Name :
SUMA
Place of Origin :
Jiangsu, China
MOQ :
2
Precision Rating :
P0
Seals Type :
OPEN
Type :
SPRAG
Surface Hardness :
HRC60-62
Sprag Quantity :
16 Pieces
Max width :
13.5mm
Material :
GCr15
Torque capacity :
159Nm
Inner diameter :
31.75mm
Outer diameter :
48.41mm
Overrunning speed inner :
6000r/min
Overrunning speed outer :
3000r/min
Width :
13.5mm
Weight :
0.060kg
Sprag space :
8.33mm
Description

Freewheel sprag clutch dc one way bearings DC3175(3C)-N

Product Description

Features of dc one way bearings : DC is a sprag type freewheel bearing cage without inner or outer races.

Installation Condition: It must be installed in a design providing races,bearing support for axial and radial loads. Lubrication and sealing.

Caution: The sprag tolerance must not be exceeded. Inner and outer races must both have am ini- mum plain widttie, without any recess, to ensure the freewheel functions correctly.

Product name

DC one way bearings

Model

DC3175(3C)-N

Torque capacity

159Nm

Inner diameter

31.75mm

Outer diameter

48.41mm

Overrunning speeds

Inner race

6000r/min

Outer race

3000r/min

Material

GCr15

Width

13.5mm

Weight

0.060kg

Package

Carton Box / Wooden Box

Payment terms

TT, L/C, D/A, D/P, Western Union

Delivery time

IN STOCK

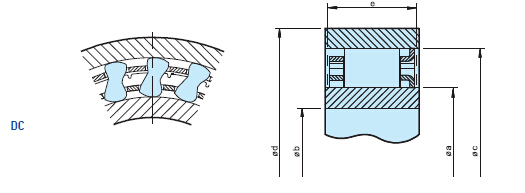

Catalogue of dc one way bearings for your choice

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

Size

Torque

Overrunning speeds [min-1]

Øa

+ 0,008

- 0,005

Øc

± 0,013

Sprag space

emin

Ødmin

Øbmax

NO of clips

Num of sprags

Weight

TKN1[Nm]

nimax

Namax

[mm]

[mm]

[mm]

[mm]

[mm]

[mm]

[kg]

DC2222G

63

8600

4300

22.225

38.885

8.33

10.0

50

15

-

12

0.030

DC2776

119

6900

3400

27.762

44.422

8.33

13.5

58

18

-

14

0.055

DC3034

124

6300

3100

30.340

47.000

8.33

13.5

62

20

-

14

0.060

DC3175(3C)

159

6000

3000

31.750

48.410

8.33

13.5

63

24

3

16

0.060

DC3809A

275

5000

2500

38.092

54.752

8.33

16

71

29

-

18

0.085

DC4127(3C)

224

4600

2300

41.275

57.935

8.33

13.5

75

32

3

18

0.090

DC4445A

363

4300

2100

44.450

61.11

8.33

16

79

34

-

20

0.095

DC4972(4C)

306

3800

1900

49.721

66.381

8.33

13.5

86

38

4

22

0.100

DC5476A

525

3500

1700

54.765

71.425

8.33

16

92

42

-

24

0.110

DC5476A(4C)

525

3500

1700

54.765

71.425

8.33

16

92

42

4

24

0.130

DC5476B(4C)

769

3500

1700

54.765

71.425

8.33

21

92

42

4

24

0.180

DC5476C(4C)

990

3500

1700

54.765

71.425

8.33

25.4

92

42

4

24

0.200

DC5776A

604

3300

1600

57.760

74.420

8.33

16

98

44

-

26

0.110

DC6334B

806

3000

1500

63.340

80.000

8.33

21

104

50

-

26

0.175

DC7221(5C)

675

2600

1300

72.217

88.877

8.33

13.5

115

56

5

30

0.140

DC7221B

1279

2600

1300

72.217

88.877

8.33

21

115

56

-

30

0.185

DC7221B(5C)

1279

2600

1300

72.217

88.877

8.33

21

115

56

5

30

0.210

DC7969C(5C)

2038

2400

1200

79.698

96.358

8.33

25.4

124

61

5

34

0.280

DC8334C

2055

2300

1100

83.340

100.00

8.33

25.4

132

65

-

34

0.270

DC8729A

1250

2200

1100

87.290

103.96

8.33

16

134

67

-

34

0.165

DC10323A(3C)*

1612

1800

900

103.231**

119.891

8.33

16

155

80

3

40

0.205

DC12334C*

4800

1500

750

123.34**

140.00

8.33

25.4

184

96

-

50

0.400

DC12388C(11C)

4875

1500

750

123.881

142.88

9.5

25.4

196

96

11

44

0.400


Detailed Images

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm WidthDC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

Packaging & Shipping

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

Company Details 1

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

Changzhou Suma Precision Machinery Co., Ltd is a manufacturer specialized in Producing Various One way bearing, One way clutch, Backstop clutch, Overrunning clutch, Needle roller bearing and other bearings with high technology.

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

Production flow

DC3175(3C)-N Sprag One Way Bearing 31.75mm ID 13.5mm Width

FAQ

Q: How do you pack the goods?

  • Total less than 25 KG : Each in white box + 19*18*9cm box + 29*28*19CM carton box
  • Total Weight over 100KG : Carton box + Wooden Box / Wooden Pallet

Q: Can i get the samples from you?

A: It is highly encouraged to ask for the samples for quality check.

Q: Can you promise to deliver the goods in time?

  • Small items: In stock.
  • Medium Items: 10-15 Days
  • Big items: 20-25 Days
