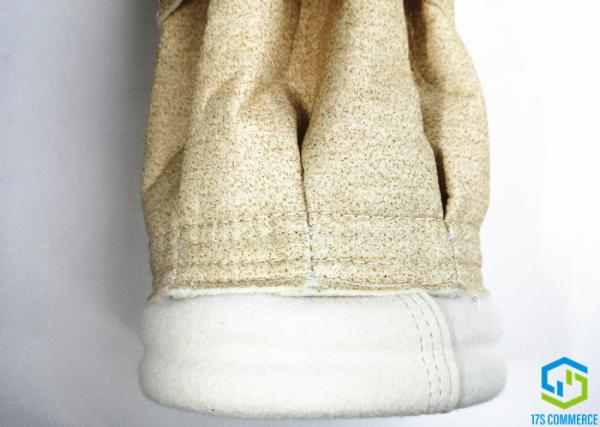

8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
Specifications
Brand Name :
17s
Model Number :
160mm Pleat bag
Certification :
ISO
Place of Origin :
China
MOQ :
negotiable
Price :
negotiable
Payment Terms :
T/T, L/C
Supply Ability :
TBD
Delivery Time :
TBD
Packaging Details :
Polybag and Pallets
Name :
Star bag
Fabric :
Aramid / Nomex
Diameter :
160mm
No. of Pleats :
8 pleats
Head :
Bead Cuff, seal cuff
HS code :
5911 9000 90
Origin :
China
Pack :
Polybag and pallet or carton and pallet
Description

Extend Filter Area Star Bag 160mm Diameter Aramid Dust Collect Pleat Bag Aramid Star Bag Nomex Wrinkled Bag​

Feature

Style star bag, pleat bag, extend surface/area bag
Pleats No. 8 pleats
Material Aramid / Nomex
Diameter 160 mm
Length TBD mm
Strap / band Type cut felt strap
afixing thread sewing to bag
Width 25 mm
Distance 250 mm
Top Opening 150 mm
Cuff Type seal cuff
Width 10-12mm
Thickness 8-10mm
Distance 4-8mm
Metal hoop inside of top yes
material 304 stainless steel
width 25-30mm
Fix sew to bag body
Boot / Bottom Diameter 150 mm
Height 100-120 mm
Reinforcement two layers
Bottom disc two layers
Metal hoop no, 20-25mm 304 stainless steel if yes
Fix sew to bag body
Seam Type thread sewing
Bag panel/body triple rows sewing
Cuff panel 2 double rows sewing
boot upper 2 double rows sewing
boot bottom double rows sewing
Pack Poly bag and pallet, or carton and pallet

Filter area expanded

The Star filter bags extend the filter surface, the increaing filter area compared to ordinary round ones is below,

Filter area increasing (%)

filter surface Dianmter mm Bag Length
1m 2m 3m 4m 5m 6m
8 pleats 160 73.57 95.26 102.49 106.11 108.28 109.73


Product on site

8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags 8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags 8 Pleats 160mm Aramid Filter Bags Nomex Filter Bags
