Specifications
Sales Price :
$1200
Lead time :
3-5 working days
Packaging Details :
Original box packaging
Module Numeber :
IOC4Mk2
Brand Name :
Other
Model Number :
IOC4Mk2 600-043
Certification :
Certificate of Origin
Place of Origin :
China
Condition :
In stock
MOQ :
1 pc
Price :
$1200
Weight :
1kg
Origin :
China
Supply Ability :
1-99 pcs / 3-5 days
Brand :
Other
Delivery Time :
3-5 days
Ordering Number :
600-043
Payment Terms :
T/T
Warrenty :
1 year
Description
IOC4Mk2 600-043
Product Overview

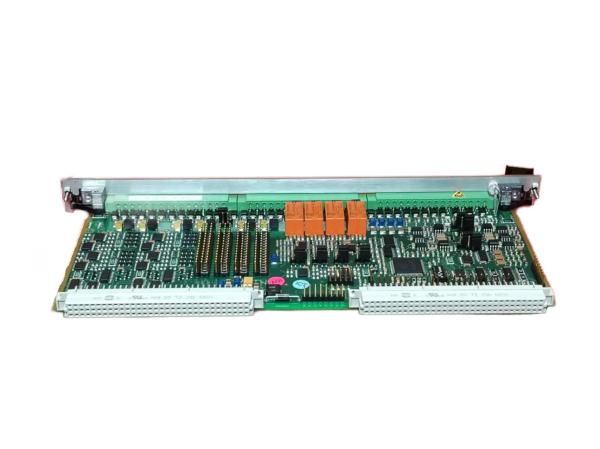

The IOC4Mk2 600-043 is a standard input/output module designed to be paired with the MPC4Mk2 processing module to form a complete mechanical protection and condition monitoring channel.

This module is suitable for most industrial applications, supporting 4 dynamic channels and 2 auxiliary channels (configurable as tachometers or DC inputs), and provides 4 user-configurable relay outputs, 4 analog outputs (4-20mA or 0-10V), and 1 status relay.

This module offers high precision, high reliability, and strong scalability. It is primarily used for the acquisition and output control of signals such as vibration, speed, displacement, pressure, and temperature from rotating machinery.

It is suitable for rotating machinery protection and condition monitoring in industries such as power generation, petrochemicals, and metallurgy. Its flexible I/O configuration, robust alarm logic, and software ecosystem support make it an ideal core monitoring component for industrial environments.

Key Features
Operating Temperature -20°C to +65°C
Storage Temperature -40°C to +85°C
Humidity 0% to 95% relative humidity (non-condensing)
Altitude Up to 2000 meters (Standard Version)
Powerful Output Capabilities
  • 4 analog outputs (configurable as 4-20 mA or 0-10 V)
  • 5 relay outputs (4 user-configurable + 1 fault status)
High Integration A single-slot-width module installed at the rear of the VM600Mk2 rack, paired one-to-one with the MPC4Mk2 processing module.
Hot-swap Support The standard version supports hot-swapping and automatic reconfiguration (for non-safety applications).
Technical Specifications
Brand Name Other
Model IOC4Mk2
Ordering Information 600-043
Catalog Vibration Monitoring
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $1200
Warranty 12 months
Courier Partners DHL, UPS, TNT, FedEx and EMS

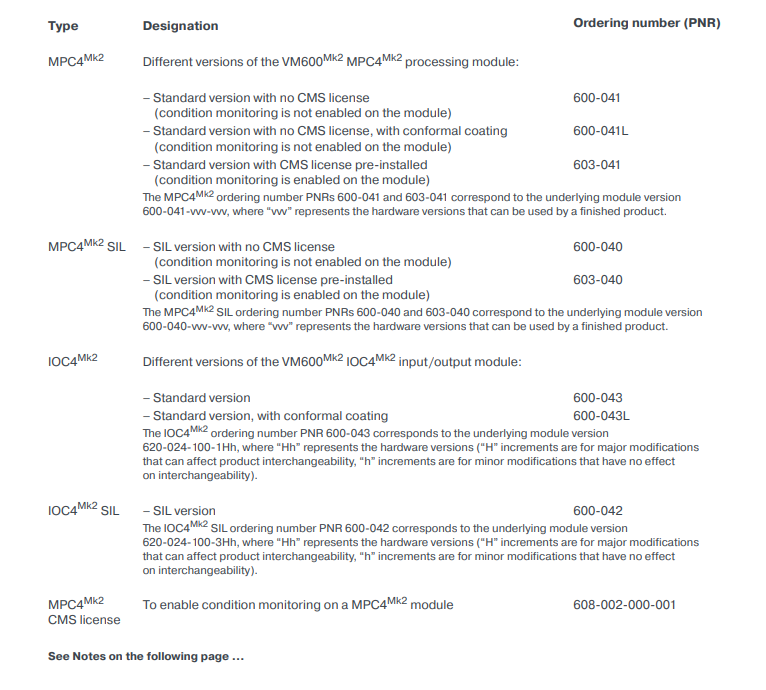

Ordering Information

Different versions of the IOC4Mk2 input/output module:

  • Standard version 600-043
  • Standard version, with conformal coating 600-043L

Note: The IOC4Mk2 ordering number PNR 600-043 corresponds to the underlying module version 620-024-100-1Hh, where "Hh" represents the hardware versions ("H" increments are for major modifications that can affect product interchangeability, "h" increments are for minor modifications that have no effect on interchangeability).

IOC4Mk2 600-043
Product Selection and Pairing
Module Type Part Number Description
Processing Module MPC4Mk2 (600-041 / 603-041) Standard version, supports mechanical protection (default) and optional condition monitoring (license required)
Rack ABE04x (6U) / ABE056 (1U) System rack or compact rack
Relay Expansion RLC16Mk2 (Standard version) Provides additional relay outputs
Control and Communication CPUMMk2 + IOCNMk2 For fieldbus communication, data aggregation, alarm reset, etc.
Software VibroSight Protect / Capture Configure and operate mechanical protection and condition monitoring functions
Frequently Asked Questions
Can the IOC4Mk2 600-043 be used on its own?

No. This module is a pure I/O unit and must be paired one-to-one with the MPC4Mk2 processing module to form a complete system. The two modules must be installed in corresponding slots at the front and rear of the rack, respectively; neither can be omitted.

What is the difference between 600-043 and 600-043L, and how should I choose between them?

The two models have identical hardware specifications; the difference lies in the protective coating.

600-043: Standard bare panel, suitable for conventional indoor server rooms and electrical distribution rooms with dry conditions, low dust levels, and no corrosive gases.

600-043L: Features a triple-proof coating that provides protection against moisture, dust, and mild corrosion; recommended for harsh environments such as chemical plants, mines, outdoor cabinets, and high-humidity facilities.

Which racks are compatible with the IOC4Mk2 600-043?

It is fully compatible with the entire VM600Mk2 rack series: the 6U standard rack (ABE04x) and the 1U slim rack (ABE056). It is also compatible with older VM600 racks. A single module occupies one standard rack slot.

What is the warranty period?

Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
