XMV16 600-003-VVV-VVV

The XMV16 600-003-VVV-VVV is a high-performance vibration condition monitoring and processing module designed specifically for rack-mounted mechanical monitoring systems. As a core component of such systems, this module is primarily used for vibration data acquisition, real-time monitoring, fault diagnosis, and performance optimization of large rotating equipment (such as steam turbines, compressors, and fans).

The module provides 16 dynamic channels and 4 tachometer (speed) channels, all of which can be configured independently. It supports signal inputs from various sensor types, including accelerometers, speed sensors, and displacement probes. For data acquisition, the module employs 24-bit data acquisition technology, offering high resolution and high fidelity.

Product Specifications
Brand Name Other
Model XMV16
Ordering Information 600-003-VVV-VVV
Catalog Extended Condition Monitoring Modules
Gross Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $7400
Warranty 12 months
Courier Partners DHL, UPS, TNT, FedEx and EMS
Technical Features
  • Channel Configuration: 16 dynamic channels + 4 tachometer channels
  • ADC Resolution: 24 bits
  • Maximum Sampling Rate: 102.4 kS/s per channel (all channels synchronized)
  • Frequency Response Range: DC to 45 kHz (-3 dB)
  • Dynamic Range: >110 dB
  • Input Impedance: >100 kΩ (differential)
  • FFT Resolution: Up to 6400 lines/500 ms
  • Signal Processing Capability: Up to 20 processing outputs per channel
  • Communication Interface: Ethernet (RJ45), supports Modbus TCP/IP
  • Power Supply: Supplied by the VM600 rack backplane
  • Operating Temperature: 0°C to +65°C
  • Storage Temperature: -40°C to +85°C
  • Operating Humidity: 0 to 90% relative humidity (non-condensing)
  • Storage Humidity: 0 to 95% relative humidity (non-condensing)
  • Certifications: CE, EAC, IEC 61326-1
Case Study
In the centrifugal compressor monitoring system at a petrochemical plant, two XMV16 modules achieved synchronous data acquisition from 32 measurement points, increasing rack space utilization by 60%. The high-density channel design significantly reduced system costs and rack space requirements.
XMV16 600-003-VVV-VVV

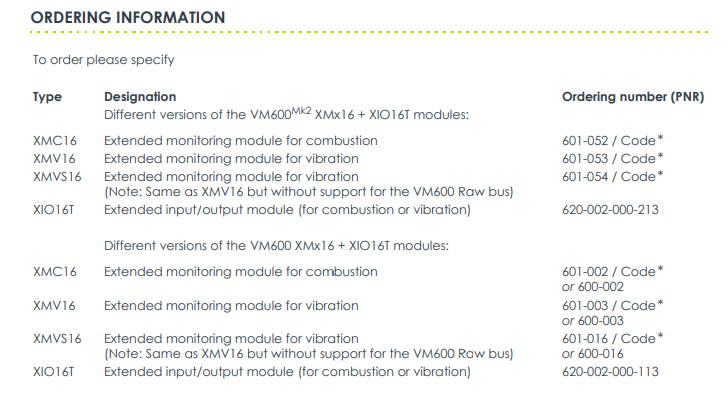

Model Selection and Configuration
Model Differences Between Module Version
XMV16 Front panel has painted finish. Part number prefix typically 600-xxx.
XMV16 Mk2 Front panel has bare aluminum finish. Part number prefix typically 601-xxx.
Required Components
  • Interface module: Must be used with XIO16T (part number 620-002-000-113 or -213)
  • Rack: Compatible with VM600/VM600 Mk2 standard racks (ABE04x) or slim racks (ABE056)
Note: Both versions have identical functionality and performance; the only difference is in the finish.
XMV16 600-003-VVV-VVV
Frequently Asked Questions
What is the difference between the XMV16 and the XMC16?
The XMV16 is optimized for vibration monitoring; the XMC16 is optimized for combustion monitoring.
What is the difference between the XMV16 and the XMVS16?
The XMVS16 has the same functionality as the XMV16, but it does not support the Raw bus on the VM600 rack (it cannot share dynamic signals).
What is the warranty period?
Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
Routine Maintenance Procedures

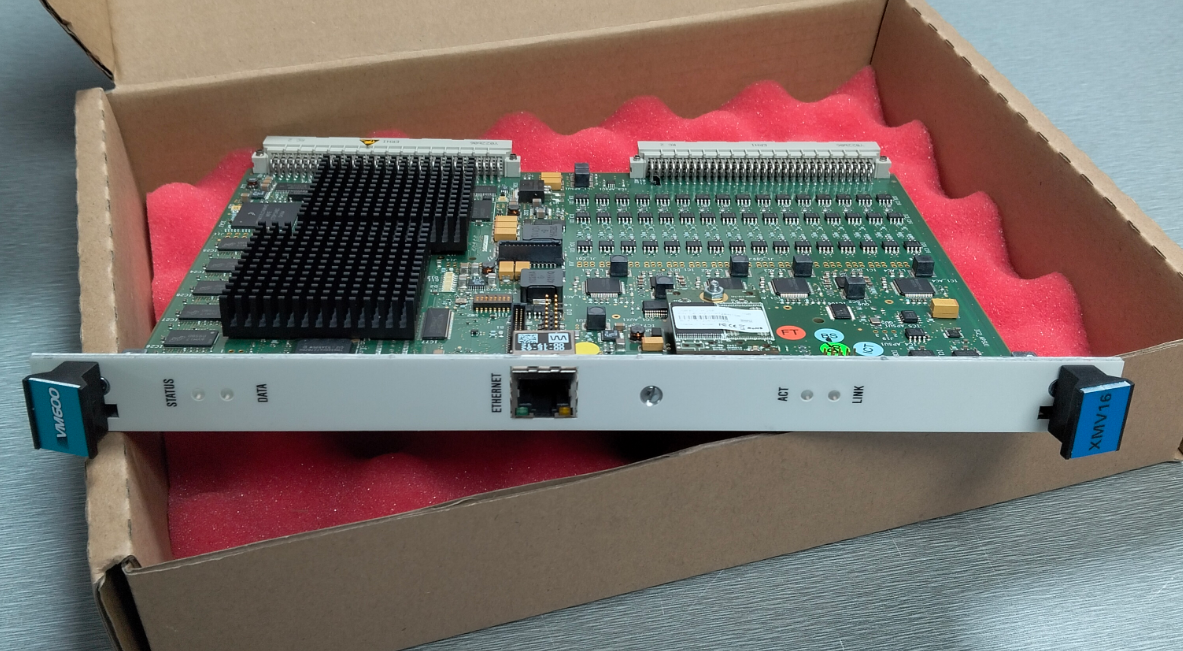

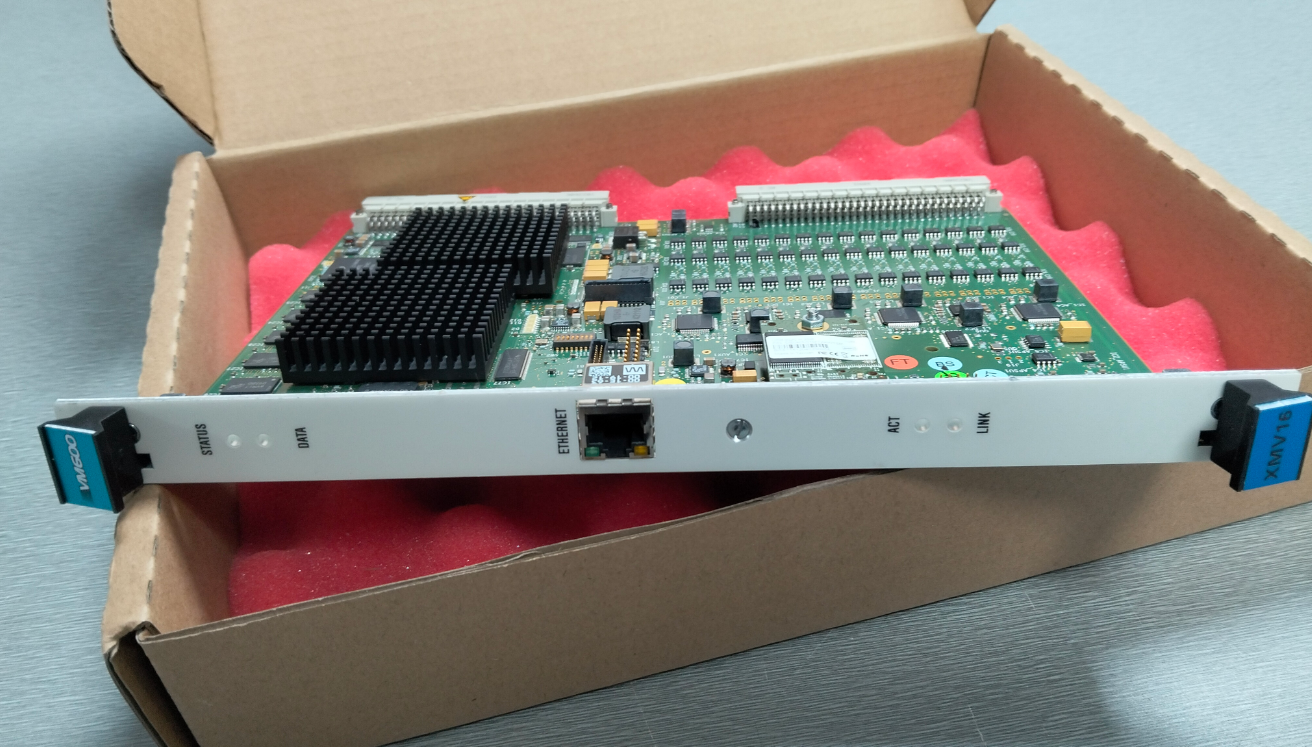

  1. Status Indicator Check: Periodically check the STATUS and DATA multicolor LED indicators on the XMV16 front panel to verify normal operation.
  2. Ethernet Communication Check: Check the ACT and LINK LED indicators to confirm proper Ethernet communication functionality.
  3. XIO16T Status Check: Check the STATUS LED on the XIO16T module to confirm normal configuration status.
