CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
CA202 144-202-000-115
Specifications
Sales Price :
$8500
Supply Ability :
1-99 pcs / 3-5 days
Ordering Number :
144-202-000-115
Model Number :
CA202 144-202-000-115
Lead time :
3-5 working days
Warrenty :
1 year
MOQ :
1 pc
Delivery Time :
3-5 days
Origin :
China
Payment Terms :
T/T
Brand :
Other
Price :
$8500
Condition :
In stock
Certification :
Certificate of Origin
Module Numeber :
CA202
Brand Name :
Other
Weight :
1kg
Place of Origin :
China
Packaging Details :

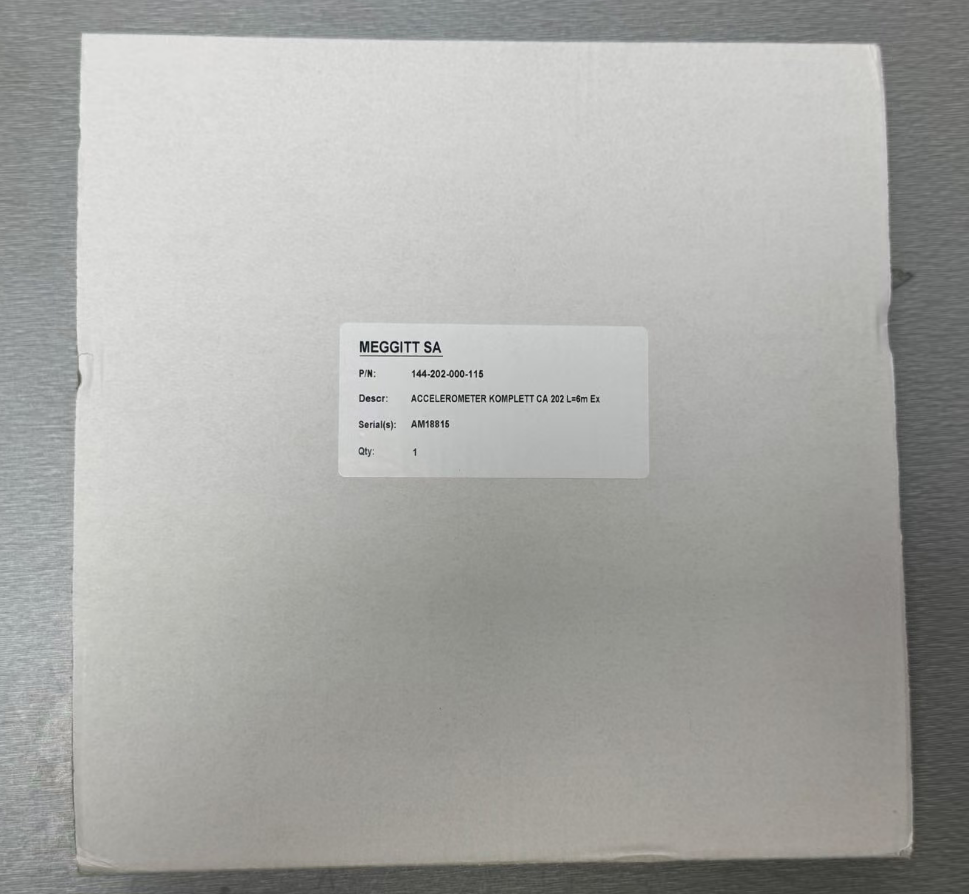

Original box packaging
Description
CA202 144-202-000-115
Product Overview

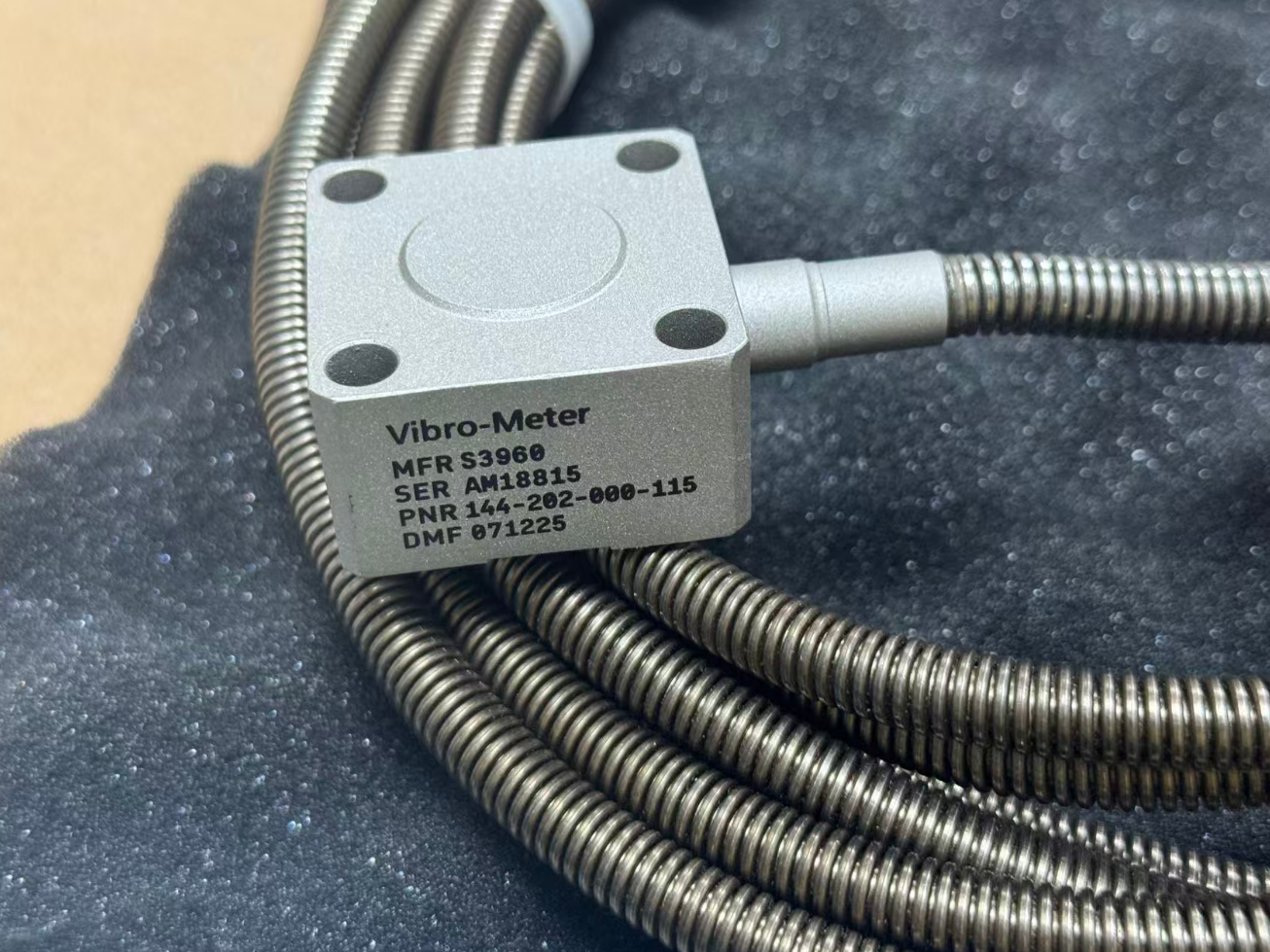

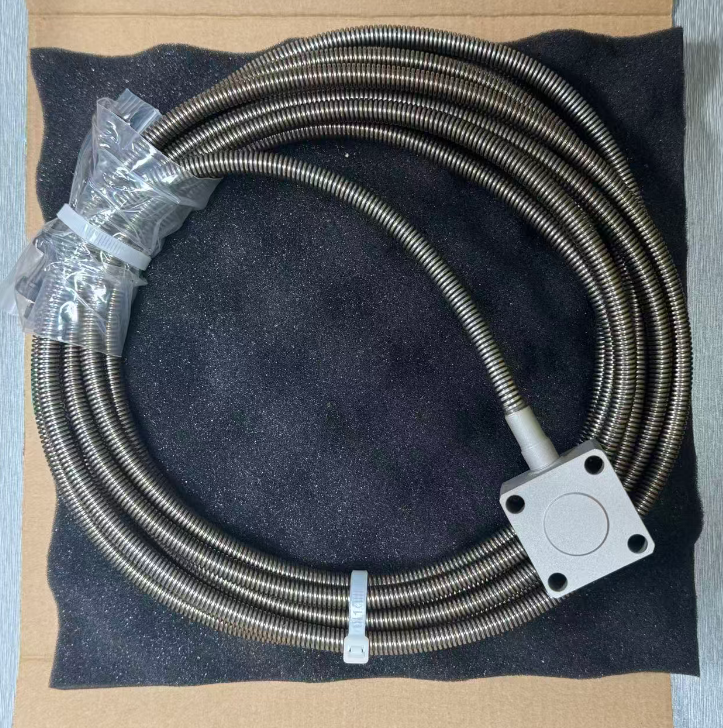

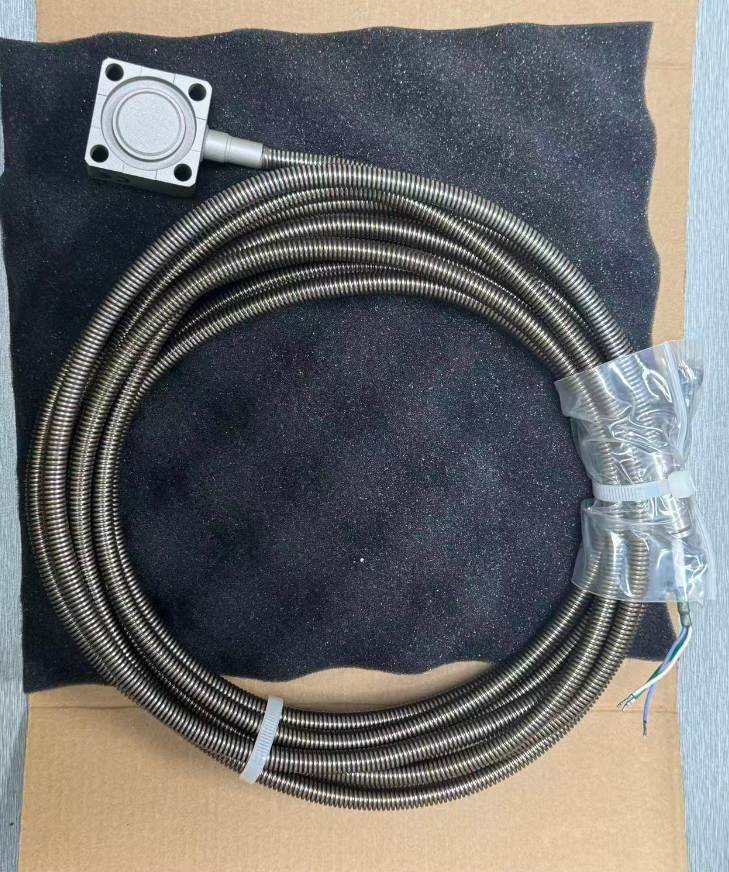

The CA202 144-202-000-115 is an explosion-proof piezoelectric accelerometer in the CA202 series, equipped with a 6-meter-long integrated armored cable and designed specifically for industrial vibration monitoring in environments with potentially explosive gases.

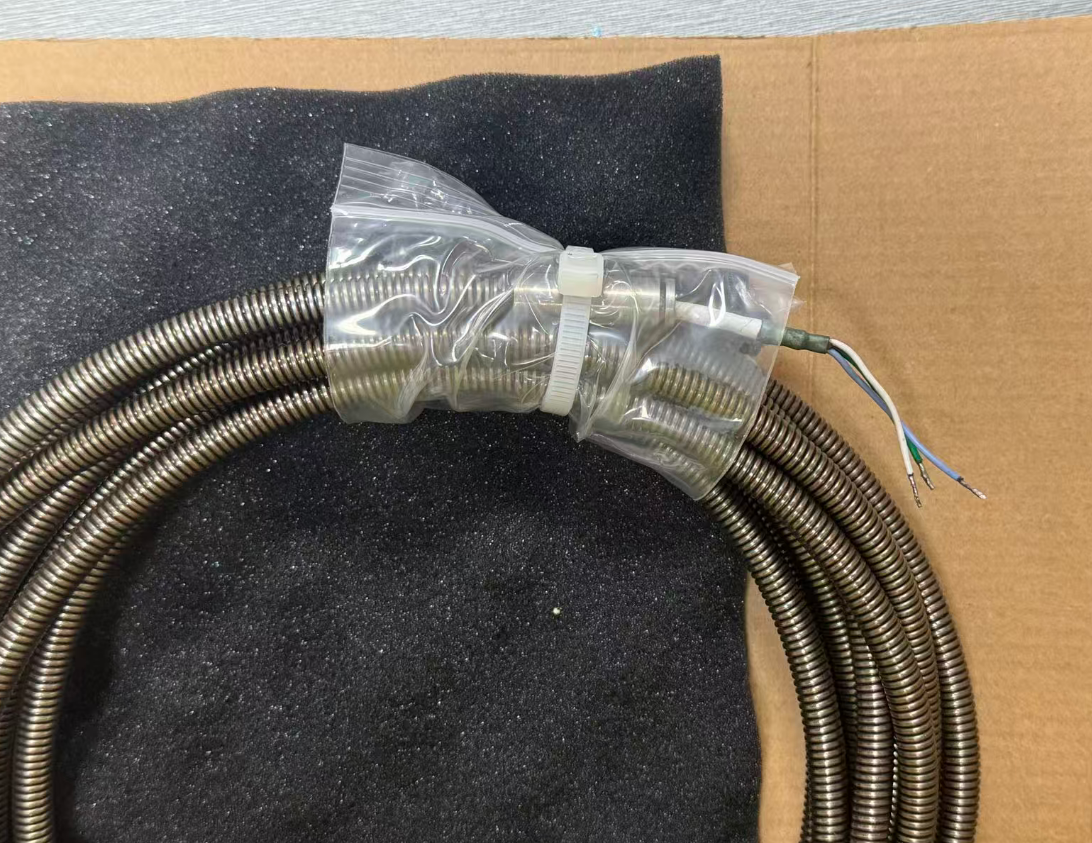

This product utilizes a symmetrical shear mode polycrystalline piezoelectric sensing element and features internal housing insulation. Its integrated low-noise cable is encased in a flexible stainless steel hose and hermetically sealed to the housing via a fully welded process, forming a robust, leak-proof assembly. It serves as a core front-end vibration acquisition sensor for environments subject to the dual challenges of high temperatures and explosion hazards.

Brand Name Other
Model CA202
Ordering Information 144-202-000-115
Catalog Vibration Monitoring
Gross Weight/Shipping Weight 2.2 lbs / 35.2 oz / 1kg
Packing Size 16cm x 16cm x 12cm
Country of Origin China
HS Code 8537101190
Lead Time In Stock
Shipping Port Xiamen
Payment T/T
Sales Price $8500
Warranty 12 months
Lead Time 3-5 work days
Courier Partners DHL, UPS, TNT, FedEx and EMS
CA202 144-202-000-115
Technical Specifications
  • Sensitivity: 100 ± 5 pC/g
  • Dynamic Measurement Range: 0.01 g to 400 g peak (random)
  • Linearity: Soil 1% (0.01-20 grams); ±2% (20-400 grams)≤3%
  • Transverse Sensitivity: ≤3%
  • Insulation Resistance: ≥ 10⁹ Ω (min)
  • Installation Resonance: Frequency 20 kHz (nominal)
Product Pairing and Selection
CA202 144-202-000-115
Installation and Usage Guidelines

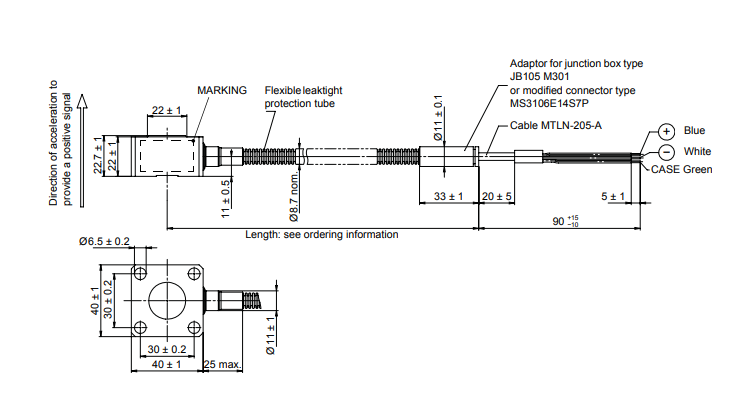

  • Installation: The mounting surface must be flat and free of burrs. Secure with M6 bolts tightened to 15 Nm, and align the sensitive measuring axis with the primary direction of equipment vibration
  • Cables: Avoid sharp bends of less than 90°. Do not drag the armored sheath. Cables in explosion-proof areas must be fully sealed throughout their entire length
  • Temperature: If the equipment surface exceeds 200°C, the MA133 thermal insulation kit must be used. Do not operate the device continuously at temperatures exceeding 260°C
  • Calibration: Factory-calibrated at 5 g/120 Hz; no annual calibration is required under normal operating conditions; sensitivity may be re-tested at the factory after prolonged exposure to shock or high temperatures
  • Storage: Store in a dry environment when not in use; avoid moisture and severe impacts to prevent deterioration of insulation performance
Case Study

At a coastal refining and petrochemical plant, the outlet temperature of a critical reciprocating compressor reached as high as 210°C, and the compressor room was classified as Zone 1 with Class IIB gas explosion protection. The standard accelerometers previously used frequently failed due to excessive heat and poor sealing. After discussion, the team ultimately selected the CA202 144-202-000-115, which was installed on the exhaust side of the compressor cylinder head.


This sensor model is connected via a 6-meter integral cable to a junction box in the hazardous area, and then connected through a safety barrier to a charge amplifier located in the control room. It has operated continuously and stably for more than two years at a cylinder wall temperature of 200°C, successfully capturing high-frequency impact signals caused by valve plate wear and providing early warnings to prevent cylinder scoring incidents.

CA202 144-202-000-115
Frequently Asked Questions
Does the sensor mounting surface need to be insulated?

No. The sensor is internally insulated (with extremely high impedance between the pins and the housing). The manual explicitly states that "the mounting surface does not need to be electrically insulated," so it can be mounted metal-to-metal to ensure high-frequency transmission efficiency.

Is a 6-meter cable long enough? If not, can it be cut and reconnected?

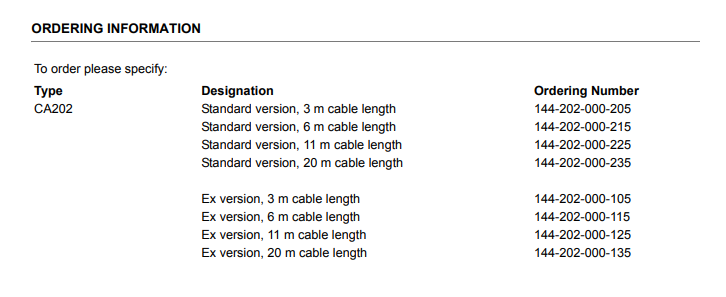

6 meters is the standard length commonly used for installations in hazardous areas. Cutting or reconnecting the cable on your own is strictly prohibited, as the cable and sensor form a sealed, welded, integrated unit; cutting it will compromise the explosion-proof seal and insulation resistance. If a longer cable is required, you may purchase other models (144-202-000-125/135).

What is the warranty period?

Standard industrial warranty: 12 months; with proper installation and no overloading, the product has a service life of 5-10 years.
