GE IS200TBTCH1CBB Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1CBB Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1CBB Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1CBB Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1CBB Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1CBB Thermocouple Input Terminal Board for Turbine Control
Specifications
Brand Name :
GE
Model Number :
IS200TBTCH1CBB
Certification :
COO
Place of Origin :
US
MOQ :
1pc
Price :
$5000
Payment Terms :
T/T
Supply Ability :
999pcs
Delivery Time :
5-7days
Packaging Details :
New and original factory, individual box packing
Name :
GE IS200TBTCH1CBB Thermocouple Input Terminal Board
Product ID :
IS200TBTCH1CBB
Series :
Turbine Specific Primary Trip Board
Function :
Thermocouple Input Terminal Board
Product Net Depth/Length :
330mm
Product Net Height :
200mm
Product Net Width :
100mm
Product Net Weight :
2kg
Warranty :
1year
Description

GE IS200TBTCH1CBB Thermocouple Input Terminal Board


Product Details:

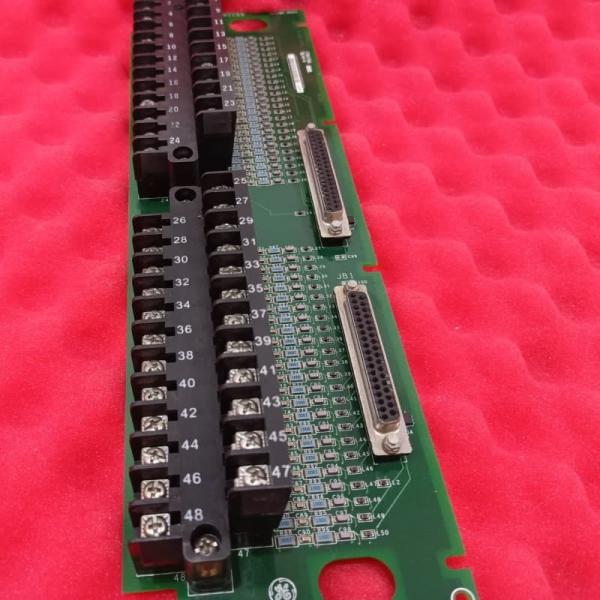

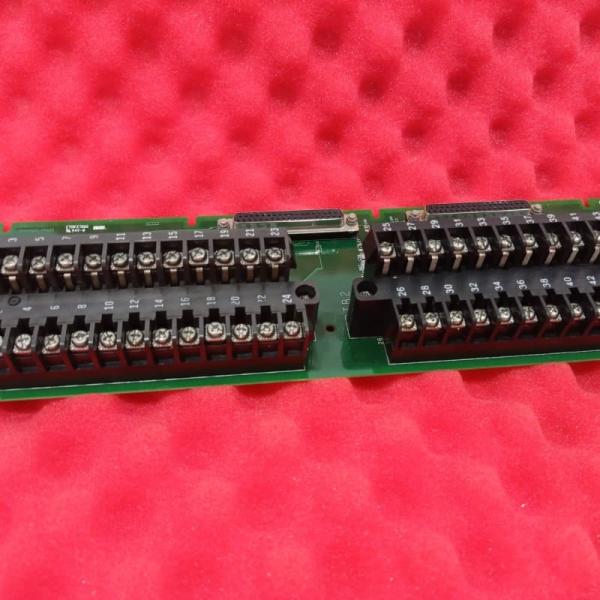

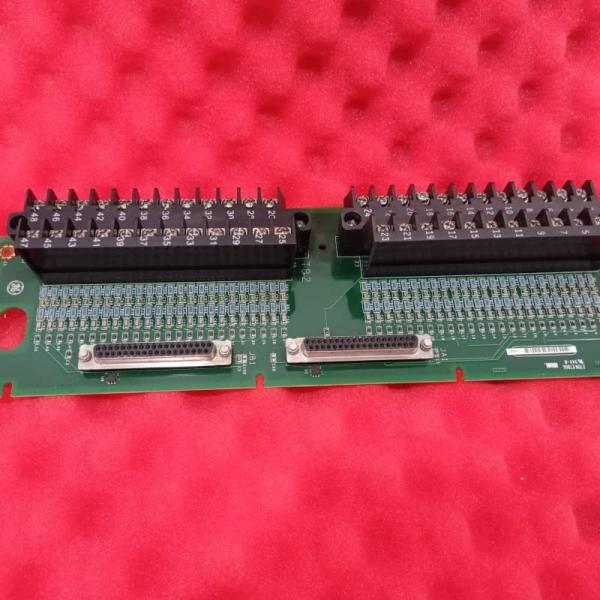

The GE IS200TBTCH1CBB is a Thermocouple Input Terminal Board in the Mark VI Series, integral to GE’s Distributed Turbine Control Systems.It accepts 24 thermocouple inputs via two barrier-type terminal blocks, supporting both grounded and ungrounded thermocouples up to 300 meters from the control panel.


Communication with I/O processors uses DC-type connectors, with configurations for simplex (TBTCH1C, 2 DC connectors) or TMR (TBTCH1B, 6 DC connectors) setups. Equipped with high-frequency noise suppression and two cold junction reference devices, it ensures signal integrity. Analog-to-digital conversion and linearization occur in the I/O processor, with PTCC I/O packs handling processing in Mark VIe systems.


Features:
24 Input Channels: Supports 24 thermocouple inputs (E, J, K, S, T) with a -8.0 mV to +45.0 mV range, suitable for diverse temperature measurements.


Dual Configurations: Compatible with simplex or TMR systems, with TMR distributing signals to three processors for redundancy.


Noise & Signal Protection: Integrates high-frequency noise suppression and cold junction references (-30°C to 65°C) to maintain accuracy; shield terminal strips reduce electrical interference.


Flexible Installation: Terminal blocks accept up to #12 AWG wires, with J-type connectors for I/O pack integration, scalable for redundancy needs.


Fault Tolerance: Cold junction faults trigger backups, ensuring reliability in critical industrial environments.
