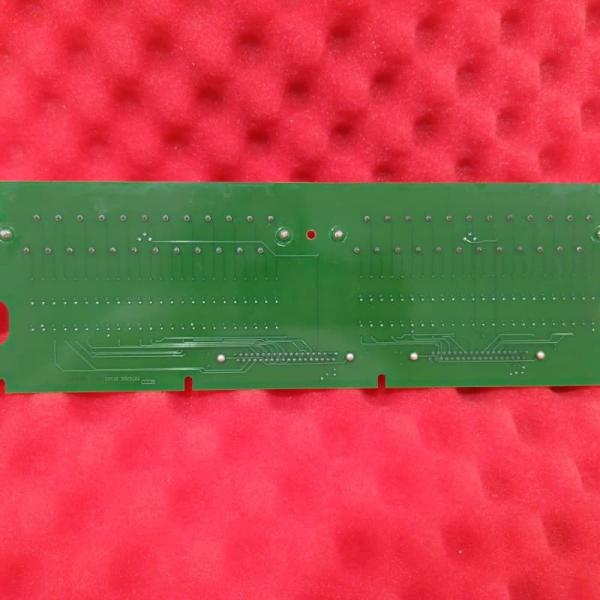

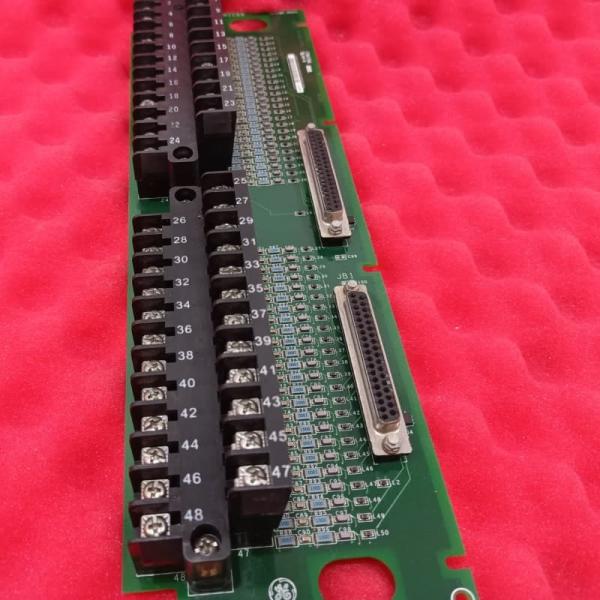

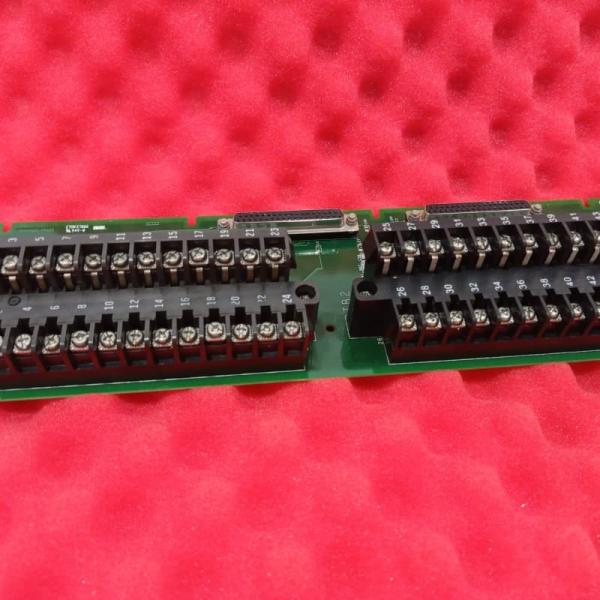

GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
GE IS200TBTCH1C Thermocouple Input Terminal Board for Turbine Control
Specifications
Brand Name :
GE
Model Number :
IS200TBTCH1C
Certification :
COO
Place of Origin :
US
MOQ :
1pc
Price :
$5000
Payment Terms :
T/T
Supply Ability :
999pcs
Delivery Time :
5-7days
Packaging Details :
New and original factory, individual box packing
Name :
GE IS200TBTCH1C Thermocouple Input Terminal Board
Product ID :
IS200TBTCH1C
Series :
Turbine Specific Primary Trip Board
Function :
Thermocouple Input Terminal Board
Product Net Depth/Length :
330mm
Product Net Height :
200mm
Product Net Width :
100mm
Product Net Weight :
2kg
Warranty :
1year
Description
GE IS200TBTCH1C Thermocouple Input Terminal Board
Product Specifications
Attribute Value
Name GE IS200TBTCH1C Thermocouple Input Terminal Board
Product ID IS200TBTCH1C
Series Turbine Specific Primary Trip Board
Function Thermocouple Input Terminal Board
Dimensions (L x W x H) 330mm x 100mm x 200mm
Weight 2kg
Warranty 1 year
Product Description
The GE IS200TBTCH1C is a thermocouple Input Terminal Board designed for Turbine Control Systems. This industrial-grade component supports 24 inputs for types E, J, K, S, or T thermocouples, with connections made through two barrier-type terminal blocks.
Key Features
  • Supports both grounded and ungrounded thermocouple configurations
  • Maximum cable length of 300 meters with 450 ohm resistance
  • High-frequency noise suppression for signal integrity
  • Dual cold junction references (-30°C to 65°C)
  • Interfaces with I/O processors through DC-type connectors
  • Supports simplex (2 connectors) or Triple Modular Redundancy (6 connectors) setups
  • Analog-to-digital conversion and linearization handled in I/O processor
  • Compatible with PTCC I/O packs in Mark VIe systems
  • Terminal blocks accept 12 AWG wires with shield terminals for grounding
  • Input range of -8.0 to +45.0 mV
  • Cold junction fault protection with backup values for continuous operation
