GE IS200TPROH1BBB Mark VI Turbine Protection Board
GE IS200TPROH1BBB Mark VI Turbine Protection Board
GE IS200TPROH1BBB Mark VI Turbine Protection Board
GE IS200TPROH1BBB Mark VI Turbine Protection Board
GE IS200TPROH1BBB Mark VI Turbine Protection Board
GE IS200TPROH1BBB Mark VI Turbine Protection Board
Specifications
Brand Name :
GE
Model Number :
IS200TPROH1BBB
Place of Origin :
US
MOQ :
1pc
Price :
$3600
Payment Terms :
T/T
Supply Ability :
999pcs
Delivery Time :
5-7days
Packaging Details :
New and original factory, individual box packing
Name :
GE IS200TPROH1BBB Protection Board
Product ID :
IS200TPROH1BBB
Series :
Mark VI
Function :
Vibration Terminal Board
Product Net Depth/Length :
330mm
Product Net Height :
200mm
Product Net Width :
100mm
Product Net Weight :
2kg
Warranty :
1year
Description

GE IS200TPROH1BBB Protection Board


Product Details:

The GE IS200TPROH1BBB is a protection board in the Mark VI series, critical for turbine safety systems. It supplies essential signals to triple redundant VPRO boards, forming an independent emergency overspeed and synchronization protection system. This setup operates separately from the primary turbine control, ensuring reliable safety responses.

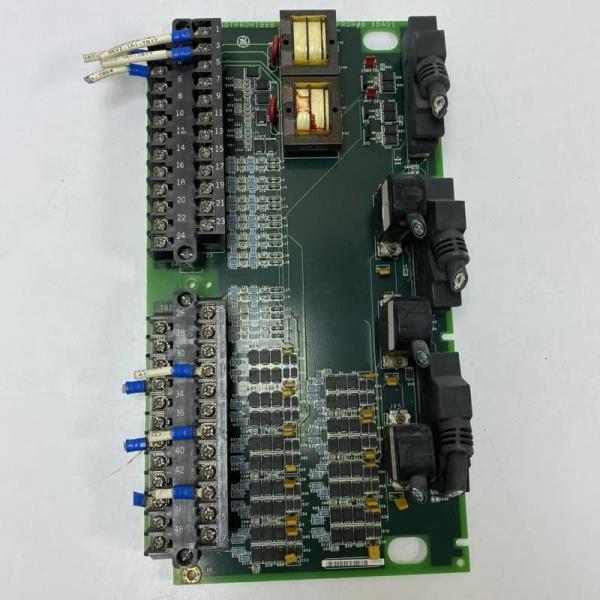

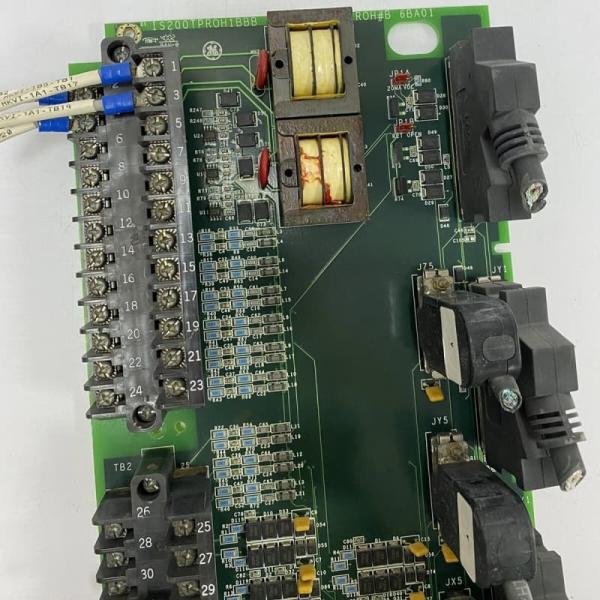

Physically, the long rectangular board features two large black terminal blocks on its left edge, red relays with yellow components, red MOVs, three vertical variable resistors, small yellow capacitors, and black diodes. It connects to VPRO boards and TREx terminal boards, facilitating signal flow for trip solenoid control and emergency trip functions.


Features:
Safety-Critical Signaling: Delivers speed, temperature, and voltage signals to VPRO boards, enabling independent emergency overspeed and synchronization protection.


Redundancy Integration: Works with triple redundant VPRO boards, ensuring fault tolerance in safety systems separate from primary controls.


Trip Control: Supports up to three trip solenoids via TREx and TRPx boards, with either capable of triggering turbine trips.


Relay Management: VPRO controls 12 TREG relays 9 in voting groups to manage solenoids; a secondary TREG can be driven via J4 for enhanced redundancy.


Robust Hardware: Includes terminal blocks, relays, MOVs, and resistors, designed for durable performance in industrial turbine environments.


GE IS200TPROH1BBB Mark VI Turbine Protection Board


GE IS200TPROH1BBB Mark VI Turbine Protection Board




DS200DTBBG1ABB DS200TCCAF1BDF
DS200SDCIG2AFB IS200ISBBG1AAB
DS200SDCIG2AHB IS200CABPG1BAA
DS200BDAAG1AAA IS200DSFCG1AEB
DS200SIOBH1ABA IS200DRLYH1BBB
