GE IS200EXHSG3AEC Exciter HS Relay Driver Board 330mm Net Depth
GE IS200EXHSG3AEC Exciter HS Relay Driver Board 330mm Net Depth
GE IS200EXHSG3AEC Exciter HS Relay Driver Board 330mm Net Depth
GE IS200EXHSG3AEC Exciter HS Relay Driver Board 330mm Net Depth
GE IS200EXHSG3AEC Exciter HS Relay Driver Board 330mm Net Depth
GE IS200EXHSG3AEC Exciter HS Relay Driver Board 330mm Net Depth
Specifications
Brand Name :
GE
Model Number :
IS200EXHSG3AEC
Place of Origin :
US
MOQ :
1pc
Price :
$5000
Payment Terms :
T/T
Supply Ability :
999pcs
Delivery Time :
5-7days
Packaging Details :
New and original factory, individual box packing
Name :
GE IS200EXHSG3AEC Exciter HS Relay Driver Board
Product ID :
IS200EXHSG3AEC
Series :
Mark VI
Function :
Exciter Backplane Board
Product Net Depth/Length :
330mm
Product Net Height :
200mm
Product Net Width :
100mm
Product Net Weight :
2kg
Warranty :
1year
Description

GE IS200EXHSG3AEC Exciter HS Relay Driver Board


Product Details:

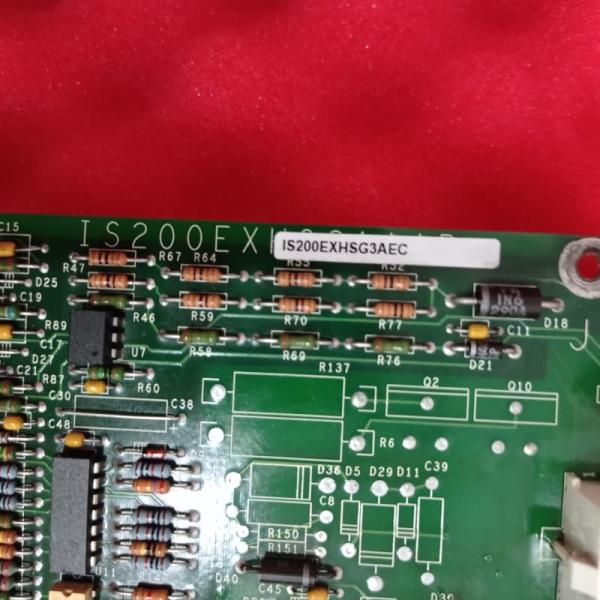

The IS200EXHSG3AEC is a printed circuit board by GE Industrial Systems, part of the EX2100 Excitation Control series—a TMR system for turbine generators. As a Static Exciter High-Speed Terminal board, it integrates with the Mark VI Turbine Control System, leveraging GE's Speedtronic technology. It is crucial for excitation control, supporting de-excitation, field flashing, and signal transmission.

Core Functions: Drives DC contactors and pilot relays for de-excitation and field flashing. Includes pilot relays for flashing relays 53A/53B and de-excitation relay KDEP.


Signal Handling: Conditions de-excitation status signals and crowbar status signals, transmitting them to the EMIO system for monitoring.


Power Specifications:
Relay coil power: 125 V DC from J9.
Relay contact power: 24 V DC from the exciter cabinet.


Relay Performance:
Resistive load: Up to 2 A at 28 V DC.
Inductive load: 1 A at 28 V DC for 0.007 seconds (L/R).
Suppression: External suppression for the relay coil to mitigate voltage spikes.

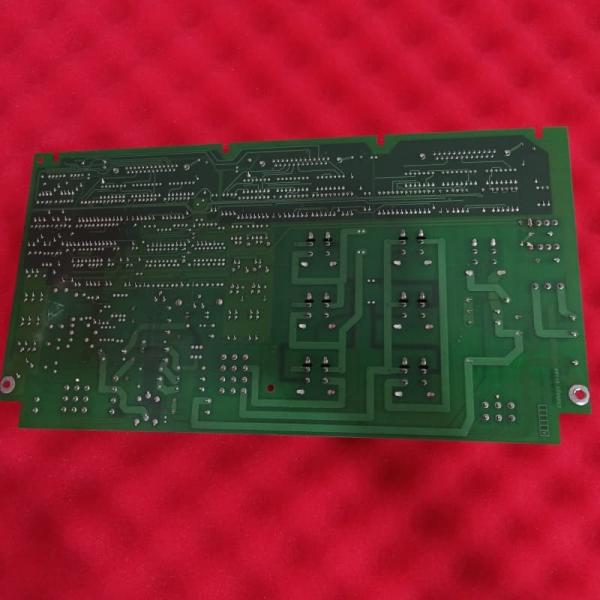

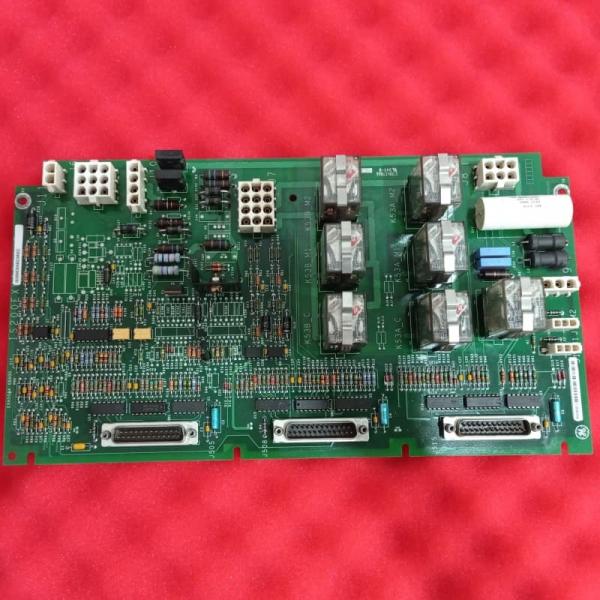

Hardware: Features solid-state relay drivers, heat sinks, 7 relays, capacitors, resistors, connectors (3 d-shell, 8 plugs), and mounting-friendly drillings/notches. Protected by standard PCB coating.
