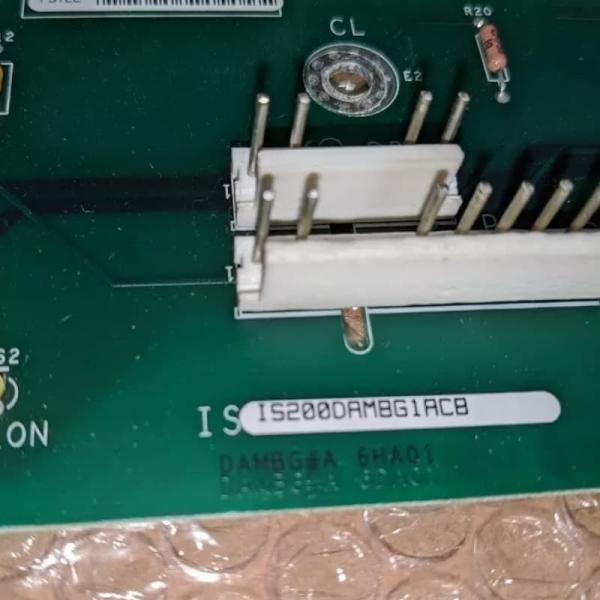

GE IS200DAMBG1ACB Mark VI, Gate Driver Board 100mm Net Width
GE IS200DAMBG1ACB Mark VI, Gate Driver Board 100mm Net Width
GE IS200DAMBG1ACB Mark VI, Gate Driver Board 100mm Net Width
GE IS200DAMBG1ACB Mark VI, Gate Driver Board 100mm Net Width
Specifications
Brand Name :
GE
Model Number :
IS200DAMBG1ACB
Certification :
COO
Place of Origin :
USA
MOQ :
1
Price :
$2400
Payment Terms :
T/T
Supply Ability :
999
Delivery Time :
5-7days
Name :
GE IS200DAMBG1ACB Mark VI, Gate Driver Board
Product ID :
IS200DAMBG1ACB
Series :
Mark VI
Product Net Depth/Length :
330mm
Product Net Width :
100mm
Product Net Height :
200mm
Product Net Weight :
2kg
Warranty :
1 Year
Description

GE Mark VI IS200DAMAG1BCB Printed Circuit Board

Product Description:

The IS200DAMBG1ACB is a gate drive amplifier/interface board designed by GE Industrial Systems, a subsidiary of General Electric (GE), as one of six variants of gate drive boards for use in GE Innovation Series drive assemblies and related components. It is one of six gate drive board variants in the GE Innovation Series drive assemblies and related components, and is intended for use in 375-frame low-voltage drive systems, between the DAMA (620-frame) and DAMC (250-frame) models. It is based on the IS200DAMBG1 motherboard and contains three unique revisions: two functional revisions (and one artwork revision).


Features:

Core Function: Serves as the interface between the control frame and the IGBT power switching devices responsible for driving and connecting the IGBTs in the low-voltage Innovation Series drives, using one IGBT module (model Powerrex CM600HA-28H) per phase leg, one for each of the upper and lower phase legs.


Hardware Configuration:

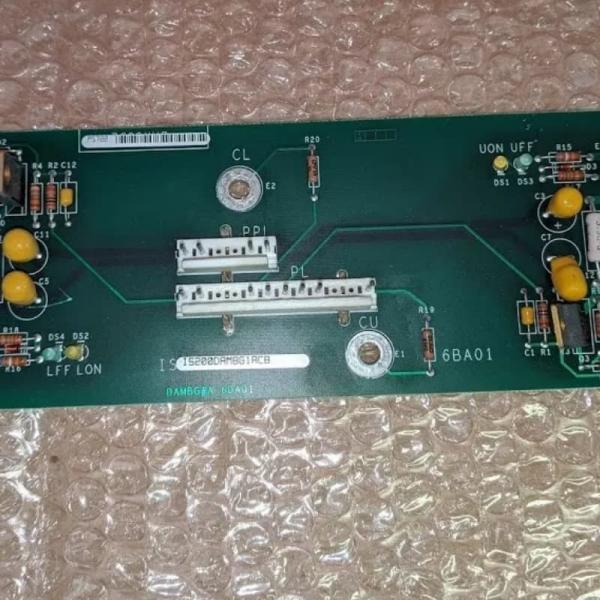

is equipped with LED indicators (DS1 - DS4) for diagnostics and display of IGBT status: DS1 (UON, yellow) indicates that the upper IGBT is on, and DS3 (UFF, green) indicates that the upper IGBT is off; DS2 (LON, yellow) and DS4 (LFF, green) correspond to the on and off states of the lower IGBTs, respectively.


The surface of the board is covered with a thick layer of conventional chemical coating for protection.


Application Scenario: Typically used in groups of three in Innovation Series drive assemblies, similar to DAMA, DAMC, etc., this is a key component in the drive system connecting the control and power devices.

Technical Parameters:

Product ID: IS200DAMBG1ACB
Name: GE IS200DAMBG1ACB Mark VI, Gate Driver Board
Series: Mark VI
Product Net Height: 200mm
Product Net Width: 100mm
Product Net Depth/Length: 330mm
Product Net Weight: 2kg
Warranty: 1 Year
