Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Specifications
Brand Name :
FOXBORO
Model Number :
FBM203
Place of Origin :
America
MOQ :
1
Price :
$750
Payment Terms :
T/T
Supply Ability :
999
Delivery Time :
5-7days
Product ID :
Foxboro FBM203 Series – 8-Channel RTD Input Module with Channel Isolation
Brand :
FOXBORO
Series :
FBM203
Model number :
FBM203
Warranty :
1 Year
Function :
Good
Condition :
New
Description
Foxboro FBM203 Series – 8-Channel RTD Input Module with Channel Isolation
The Foxboro FBM203 series are RTD input modules with eight isolated channels for temperature measurement. The FBM203 supports 0–320 ohms for 2- or 3-wire sensors, the FBM203b covers up to 640 ohms, the FBM203c supports 0–30 ohms, and the FBM203d is designed for 4-wire RTDs within 0–320 ohms. Each channel is electrically isolated and provides sigma-delta conversion for high accuracy. Suitable for harsh environments, the modules support configurable conversion time and rate of change limits, and can be wired locally or remotely using DIN rail or baseplate-mounted termination assemblies for easy integration into optionally redundant fieldbus systems.
Technical Specifications
Module Type 8-Channel RTD Input Module
Input Channels
8 channels
Accuracy
±0.1% of span
Dimensions 102mm x 114 mm x 45mm
Operating Temperature 0°C to +60°C

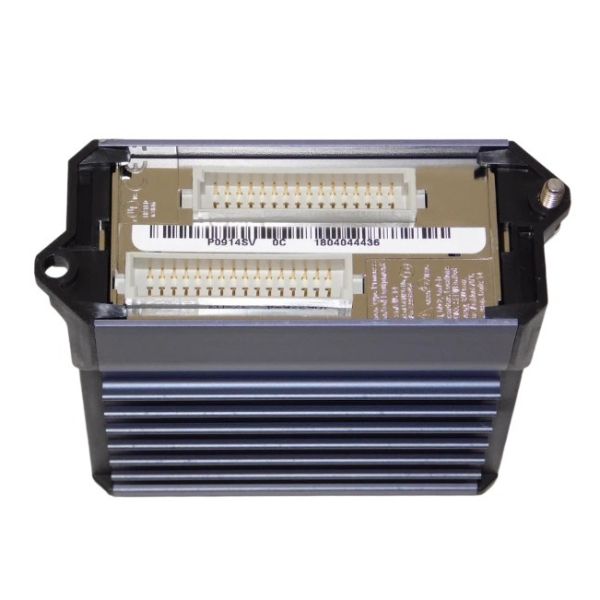

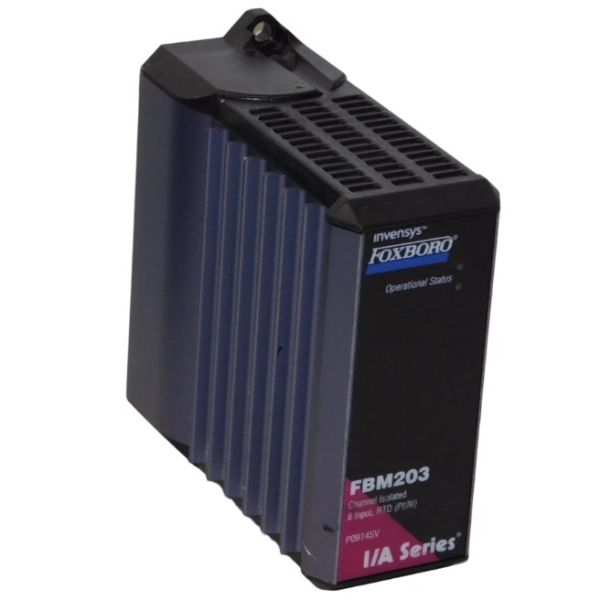

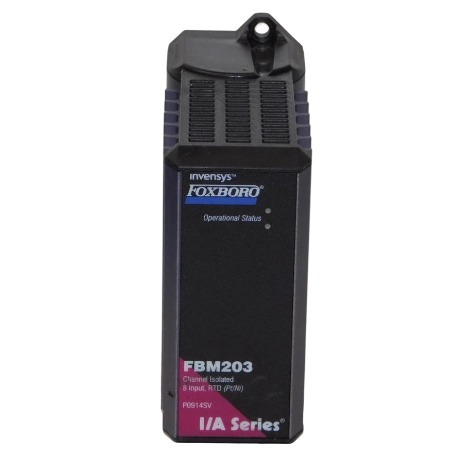

Product Images
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Foxboro FBM203 Series 8-Channel RTD Input Module with Channel Isolation and Sigma-Delta Conversion for High Accuracy
Installation Requirements
This industrial control panel requires professional installation to ensure optimal performance and operational safety. Proper implementation is essential for reliable system integration.
  • Professional installation required for optimal performance and safety
  • Ensure proper mounting and adequate ventilation
  • Comply with all applicable electrical safety standards
