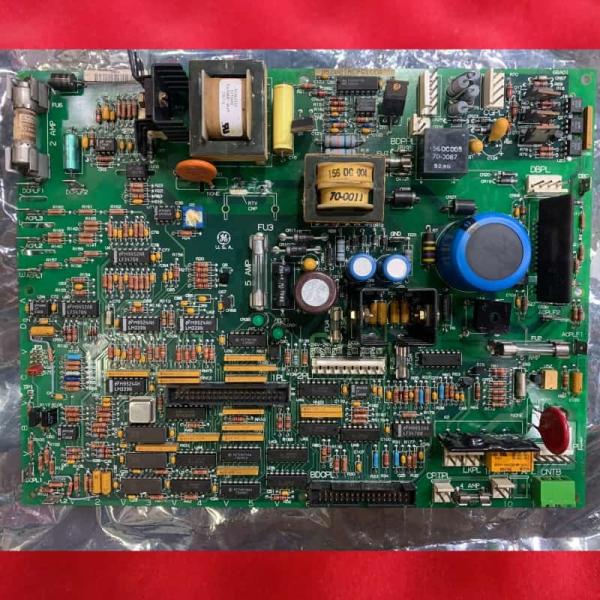

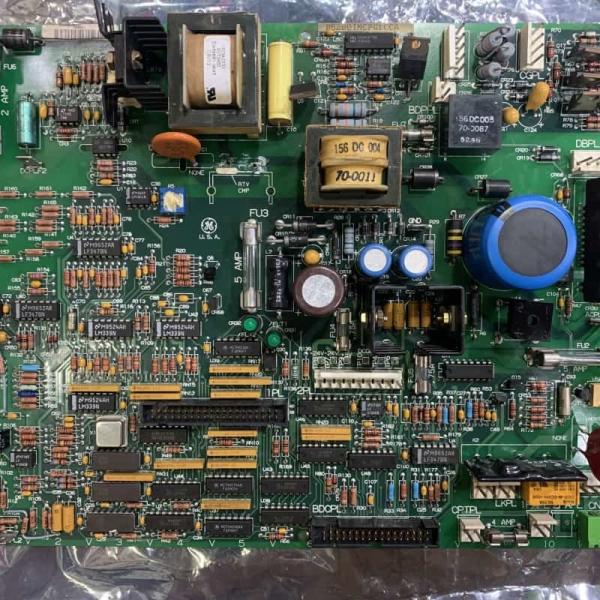

GE DS200TCPAG1AJD Control Processor Board

Product Details:

The GE DS200TCPAG1AJD stands as a critical control processor board engineered exclusively for the Speedtronic Mark V turbine control system—GE’s flagship platform for regulating gas and steam turbines in power generation, oil, and industrial facilities. Positioned at the very core of the Mark V control panel, it functions as the system’s central operational hub, orchestrating seamless coordination between turbine subsystems. By integrating power distribution, real-time data processing, and fault monitoring into a single unit, it directly elevates turbine operational efficiency, reduces response latency to system changes, and ensures the consistent performance required for safe, long-term turbine management.

Key Features:
Specialized Non-VME Mounting ArchitectureUnlike standard industrial control boards that rely on VME racks and metallic faceplates, the DS200TCPAG1AJD features a unique, rack-free design. This allows it to be directly installed into the Mark V control unit’s internal core—eliminating the need for intermediate mounting hardware, reducing spatial constraints within the control panel, and optimizing its proximity to the system’s critical components. This specialized layout ensures faster signal transmission between the processor and connected subsystems, reinforcing its role as a dedicated central control node.

Industrial-Grade PCB Coating for Harsh EnvironmentsThe board is protected by a conventional yet rigorously tested PCB coating that adheres to global industrial control standards. This coating forms a resilient barrier against the harsh conditions typical of turbine installations, including exposure to dust, moisture, thermal cycling, and minor chemical contaminants. By shielding the board’s internal circuitry from these stressors, the coating extends its operational lifespan, minimizes wear-related performance degradation, and maintains reliability even in 24/7 industrial operating environments.

125V DC Power System with Integrated DistributionDesigned to operate on a stable 125V DC power supply—an industry-standard voltage for heavy-duty turbine controls—the DS200TCPAG1AJD ensures consistent power delivery to the Mark V system’s critical components. It incorporates dedicated, high-grade power distribution cables that route electricity to downstream modules with minimal voltage drop. This optimized power routing prevents fluctuations that could disrupt turbine control logic, ensuring the system retains precision even during high-load operational periods.

Fuse Protection Network with Real-Time LED MonitoringTo safeguard against electrical faults that could damage the board or connected subsystems, the DS200TCPAG1AJD is equipped with a comprehensive series of industrial-grade fuses. Each fuse is paired with a dedicated LED indicator, creating a visual monitoring system that provides instant status feedback: a lit LED confirms a functional fuse, while an unlit LED immediately signals a blown or faulty fuse. This design eliminates the need for manual fuse testing, enabling operators to identify and address issues in seconds—drastically reducing unplanned downtime and supporting proactive preventive maintenance schedules.

Continuous Status Feedback for Proactive ReliabilityBuilding on its LED fuse monitoring, the board delivers continuous, real-time status feedback to the Mark V system’s central interface. This feedback includes not just fuse health, but also power output stability and basic processor functionality, allowing operators to track the board’s performance at a glance. By alerting teams to potential issues before they escalate into critical failures, the system reduces the risk of unplanned turbine outages. This proactive reliability framework ensures the turbine maintains stable operation, adheres to performance benchmarks, and minimizes the costs associated with unexpected downtime.
