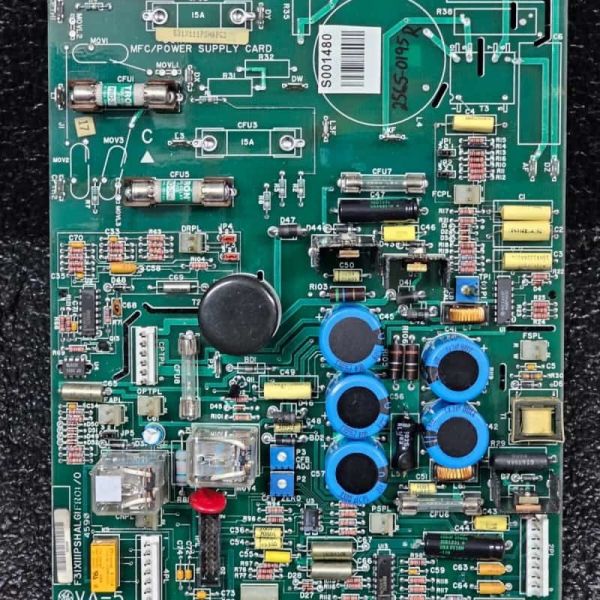

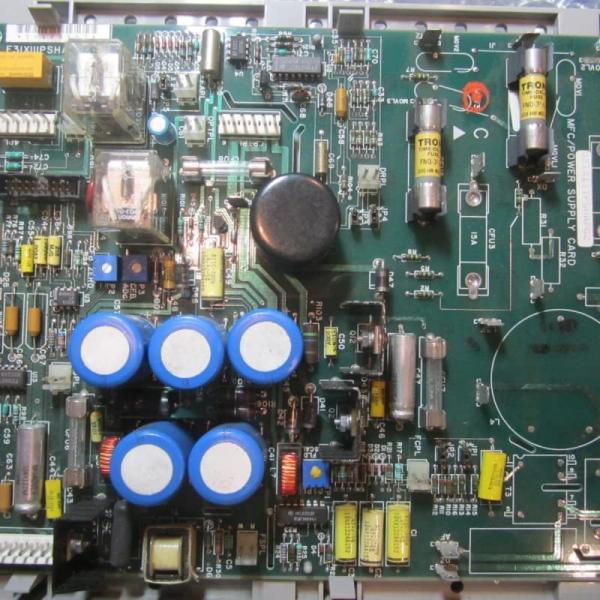

The GE 531X111PSHAPG2 is a Terminal Board Relay Card. Its core roles include supplying regulated DC power to power critical drive operations and integrating a pulse transformer dedicated to motor field circuitry—ensuring stable motor field current and supporting smooth drive-motor coordination.

As a specialized replacement part, it is strictly intended for installation and servicing by qualified, trained personnel. This requirement stems from the high-voltage nature of the drives it supports and the presence of moving parts that pose injury risks. Safety protocols for use mandate pre-installation area inspections (e.g., using only grounded extension cords, clearing trip hazards, ensuring dry floors), verification of 3-phase power cabling, and confirmation of functional emergency shutoff systems. Additionally, all service work must be conducted with a nearby trained assistant to address potential emergencies, aligning with industrial safety standards for high-risk equipment.

Power Supply Function: Delivers 5V DC, 15V DC, and 24V DC current essential for drive operation, plus integrates a pulse transformer to support motor field circuitry.

Safety-Centric Design: Classified as a specialized replacement part, requiring qualified installers/servicers to mitigate risks from high voltage and moving drive components.

Hazard Mitigation Protocols: Requires pre-installation area checks (grounded cords, dry floors, trip hazard removal) and power system verification (3-phase cabling, functional emergency shutoff) to ensure safe operation.

Emergency Support Requirement: Mandates a nearby, trained assistant during all service work, ensuring rapid response to potential accidents and aligning with industrial safety standards.
