Specifications
Brand Name :
Pepperl+Fuchs
Model Number :
NBB8-18GM50-E2-V1
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
120$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
110*60*60mm
Working Temperature :
-20°C~70°C
Sampling Period :
0~100s Configurable
Net Weight :
1.5 kg
Input Voltage Range :
0-10V
On Status :
15~30VDC
Number Of Inputs :
8
Color :
Black
Quality :
100% Original 100% Brand
Description

1. Sensing Excellence

The NBB8 - 18GM50 - E2 - V1 from Pepperl + Fuchs is an inductive proximity sensor renowned for its precise sensing capabilities. With a rated sensing distance of 8 mm when flush - mounted, it can accurately detect metallic objects within an assured operating range of 0 - 6.48 mm. The PNP output in a 3 - wire configuration ensures seamless integration with industrial control systems. Its switching frequency of up to 1,350 Hz enables rapid response to object presence or absence, making it suitable for high - speed industrial processes. A yellow LED clearly indicates the switching state, facilitating easy monitoring.

2. Durable Build

This sensor features a robust brass housing with a white bronze coating and a green PBT sensing face. The IP68 protection rating makes it impervious to dust and capable of withstanding temporary water immersion, suitable for harsh industrial environments. The 18 - mm diameter cylindrical design with M18 threading allows for flexible flush mounting, and it can be tightened with a torque of up to 30 Nm. It can operate in a wide ambient temperature range from - 40 °C to + 85 °C, ensuring consistent performance in extreme conditions.

3. Electrical Reliability

Operating on a voltage range of 5 - 36 V DC, the NBB8 - 18GM50 - E2 - V1 is versatile and energy - efficient. It comes with reverse polarity protection to prevent damage from incorrect wiring and pulsing short - circuit protection for added safety. The voltage drop is ≤ 1 V, and the maximum operating current is 200 mA. Certified with UL and compliant with EN IEC 60947 - 5 - 2, it offers reliable electrical performance and seamless integration into complex automation setups.

Attribute

Details

Product Model

NBB8 - 18GM50 - E2 - V1

Manufacturer

Pepperl + Fuchs

Sensor Type

Inductive Proximity Sensor

Rated Sensing Distance

8 mm (Flush Mounting)

Assured Operating Distance

0 - 6.48 mm

Output Type

PNP, 3 - Wire

Housing Material

Brass with White Bronze Coating

Sensing Face Material

Green PBT

Protection Rating

IP68

Ambient Temperature Range

- 40 °C to + 85 °C

Operating Voltage Range

5 - 36 V DC

Reverse Polarity Protection

Yes

Short - Circuit Protection

Pulsing

Voltage Drop

≤ 1 V

Maximum Operating Current

200 mA

Switching Frequency

Up to 1,350 Hz

Connection Type

M12 x 1, 4 - Pin Connector

LED Indicator

Yellow (Switching State)

Certifications

UL, EN IEC 60947 - 5 - 2

Reduction Factors

Al: 0.3, Cu: 0.25, 304 Stainless Steel: 0.65, Brass: 0.54

Hysteresis

1 - 15%

Off - State Current

≤ 0.1 mA (Typ. 0.1 µA at 25 °C)

No - Load Supply Current

≤ 10 mA

Mounting Type

Flush Mount

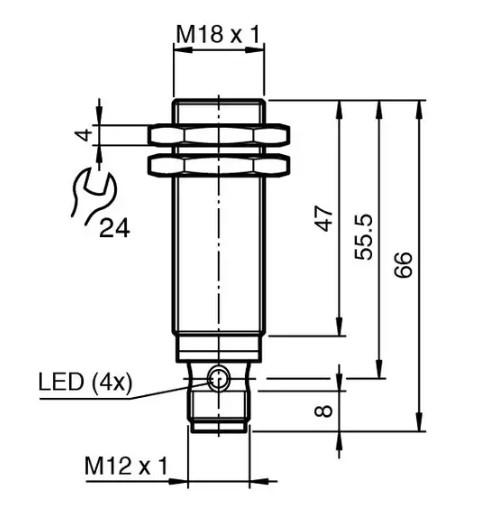

Thread Size

M18

Tightening Torque

≤ 30 Nm

Weight

72 g
