Pepperl+Fuchs NBB4-12GM50-A2 M50 Proximity Sensor 4-12mm Range IP67 NPN/PNP Output Industrial Automation
Pepperl+Fuchs NBB4-12GM50-A2 M50 Proximity Sensor 4-12mm Range IP67 NPN/PNP Output Industrial Automation
Pepperl+Fuchs NBB4-12GM50-A2 M50 Proximity Sensor 4-12mm Range IP67 NPN/PNP Output Industrial Automation
Pepperl+Fuchs NBB4-12GM50-A2 M50 Proximity Sensor 4-12mm Range IP67 NPN/PNP Output Industrial Automation
Pepperl+Fuchs NBB4-12GM50-A2 M50 Proximity Sensor 4-12mm Range IP67 NPN/PNP Output Industrial Automation
Pepperl+Fuchs NBB4-12GM50-A2 M50 Proximity Sensor 4-12mm Range IP67 NPN/PNP Output Industrial Automation
Specifications
Brand Name :
Pepperl+Fuchs
Model Number :
NBB4-12GM50-A2
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
120$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Packaging Details :
100*100*100mm
Number Of Channels :
8
Length :
50 mm
Isolation Voltage :
500V
Max Input Voltage :
30V DC
Input Voltage Range :
0-10V
Working Temperature :
-20°c~70°c
Maximum Output Voltage :
24V DC
Resolution :
0.7 mm
Description

High - Performance Detection

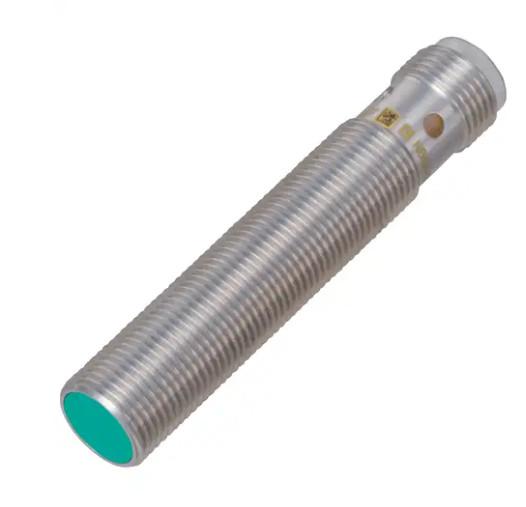

The Pepperl + Fuchs NBB4 - 12GM50 - A2 is a top - notch inductive proximity sensor. It has a rated detection distance of 4mm, which allows for precise sensing of metallic objects. Operating on a 10 - 30V DC power supply, it provides stable and reliable performance. The 3 - wire PNP output with a normally open contact makes it easily integrated into various industrial control systems. With a switching frequency of up to 500Hz, it can respond quickly to object presence changes.

Durable and Resilient Build

This sensor is built to last. It features a robust metal housing that offers excellent protection against mechanical impacts. It has an IP67 protection rating, meaning it is dust - tight and can resist water immersion. The wide operating temperature range from - 25°C to 70°C enables it to function well in harsh industrial environments. Additionally, it comes with reverse polarity and short - circuit protection, enhancing its durability and reducing maintenance needs.

Versatile Industrial Usage

The NBB4 - 12GM50 - A2 is highly versatile. It can be used in a variety of industrial automation applications such as conveyor belt systems to detect the movement of metal parts, in packaging machines for quality control, and in robotic systems for accurate positioning. Its compact size and easy - to - install design make it suitable for both new installations and retrofitting existing systems across different industries.

Attribute

Description

Product Name

Inductive Proximity Sensor NBB4-12GM50-A2

Manufacturer

Pepperl + Fuchs

Detection Principle

Inductive

Rated Detection Distance

4 mm

Supply Voltage

10 - 30 V DC

Output Type

PNP, Normally Open (NO)

Switching Frequency

≤ 500 Hz

Connection

M12 x 1, 4 - pin connector

Housing Material

Stainless steel 1.4305

Protection Class

IP67

Ambient Temperature Range

-25 °C to +70 °C

Response Time

≤ 1 ms

Hysteresis

≤ 15% of the rated operating distance

Repeatability

≤ ± 2% of the rated operating distance

LED Indication

Green for power, yellow for switching state

Reduction Factor

Aluminum: 0.3; Copper: 0.2; Stainless steel: 0.7

Certifications

UL, CE, cULus, CCC
