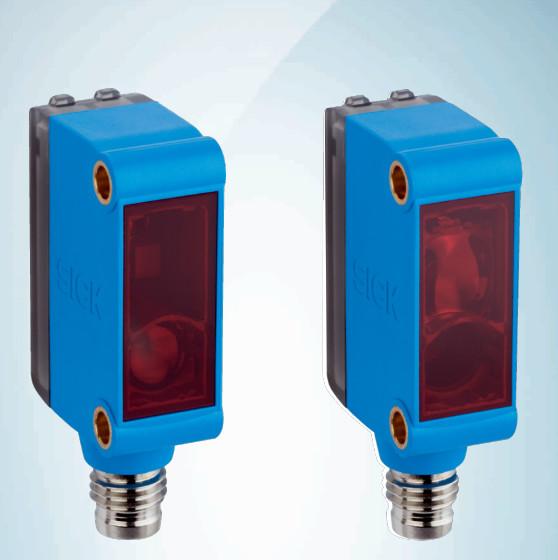

SICK - GSE6-P4111 - Miniature Photoelectric Sensor | part no : 1052446
SICK - GSE6-P4111 - Miniature Photoelectric Sensor | part no : 1052446
Specifications
Brand Name :
SICK
Model Number :
GSE6-P4111
Certification :
3C
Place of Origin :
GERMANY
MOQ :
1
Price :
230$/piece
Payment Terms :
T/T
Supply Ability :
1piece in stock
Delivery Time :
3 day
Light spot size (distance) :
Ø 375 mm (12 m)
Supply voltage UB :
10 V DC ... 30 V DC
Switching frequency :
1,000 Hz
Dimensions (W x H x D) :
12 mm x 31.5 mm x 21 mm
Weight :
40 g
Description
Detailed technical data
Features
Functional principle Through-beam photoelectric sensor
Sensing range max. 0 m ... 15 m
Sensing range 0 m ... 10 m
Polarisation filters No
Emitted beam
Light source

Type of light
Light spot size (distance)
PinPoint LED 1)

Visible red light
Ø 375 mm (12 m)
Key LED figures
Wave length		 650 nm
Adjustment None
Part number of individual components 2058059 GS6-D4311 2058077 GE6-P4111
1) Average service life: 100,000 hat TU = +25 °C.
Safety-related parameters
MTTFD 1,009 years
DCavg 0 %
Electronics
Supply voltage UB 10 V DC ... 30 V DC 1)
1) May not fall below or exceed UV tolerances.
Without load.
2)
3)
4) At Uv > 24 V, IA max. = 50 mA.
5) Signal transit time with resistive load.
With light/dark ratio 1:1.
6)
7) B = inputs and output reverse-polarity protected.
D = outputs overcurrent and short-circuit protected.
8)
9)
2 PHOTOELECTRIC SENSORS | SICK Product data sheet | 2025-02-15 11:38:29
Subject to change without notice
GSE6-P4111 | G6
MINIATURE PHOTOELECTRIC SENSORS
Ripple ± 10 % 2)
Current consumption 30 mA 3)
Protection class III
Digital output
Type
Switching mode
Switching modeselector
Signal voltage PNP HIGH/LOW
Output current Imax.

Response time

Switching frequency
PNP

Light/dark switching
Selectable via light/dark selector
VS - (≤ 3 V) / approx. 0 V

≤ 100 mA 4)

< 500 µs 5)

1,000 Hz 6)
Circuit protection A 7)
B 8)
D 9)
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not fall below or exceed UV tolerances.
3) Without load.
4) At Uv > 24 V, IA max. = 50 mA.
5) Signal transit time with resistive load.
6) With light/dark ratio 1:1.
7) A = VS connections reverse-polarity protected.
8) B = inputs and output reverse-polarity protected.
9) D = outputs overcurrent and short-circuit protected.
Mechanics
Housing Rectangular
Dimensions (W x H x D) 12 mm x 31.5 mm x 21 mm
Connection Male connector M8, 4-pin
Material

Housing
Front screen
Plastic, ABS/PC
Plastic, PMMA
Weight 40 g
Ambient data
Enclosure rating IP67
Ambient operating temperature –25 °C ... +55 °C 1)
Ambient temperature, storage –40 °C ... +70 °C
UL File No. NRKH.E348498 & NRKH7.E348498
1) Temperature stability following adjustment +/-10 °C.
Classifications
ECLASS 5.0 27270901
ECLASS 5.1.4 27270901
ECLASS 6.0 27270901
ECLASS 6.2 27270901
2025-02-15 11:38:29 | Product data sheet PHOTOELECTRIC SENSORS | SICK 3
Subject to change without notice
GSE6-P4111 | G6
MINIATURE PHOTOELECTRIC SENSORS
ECLASS 7.0 27270901
ECLASS 8.0 27270901
ECLASS 8.1 27270901
ECLASS 9.0 27270901
ECLASS 10.0 27270901
ECLASS 11.0 27270901
ECLASS 12.0 27270901
ETIM 5.0 EC002716
ETIM 6.0 EC002716
ETIM 7.0 EC002716
ETIM 8.0 EC002716
UNSPSC 16.0901 39121528
